─ 12 ─

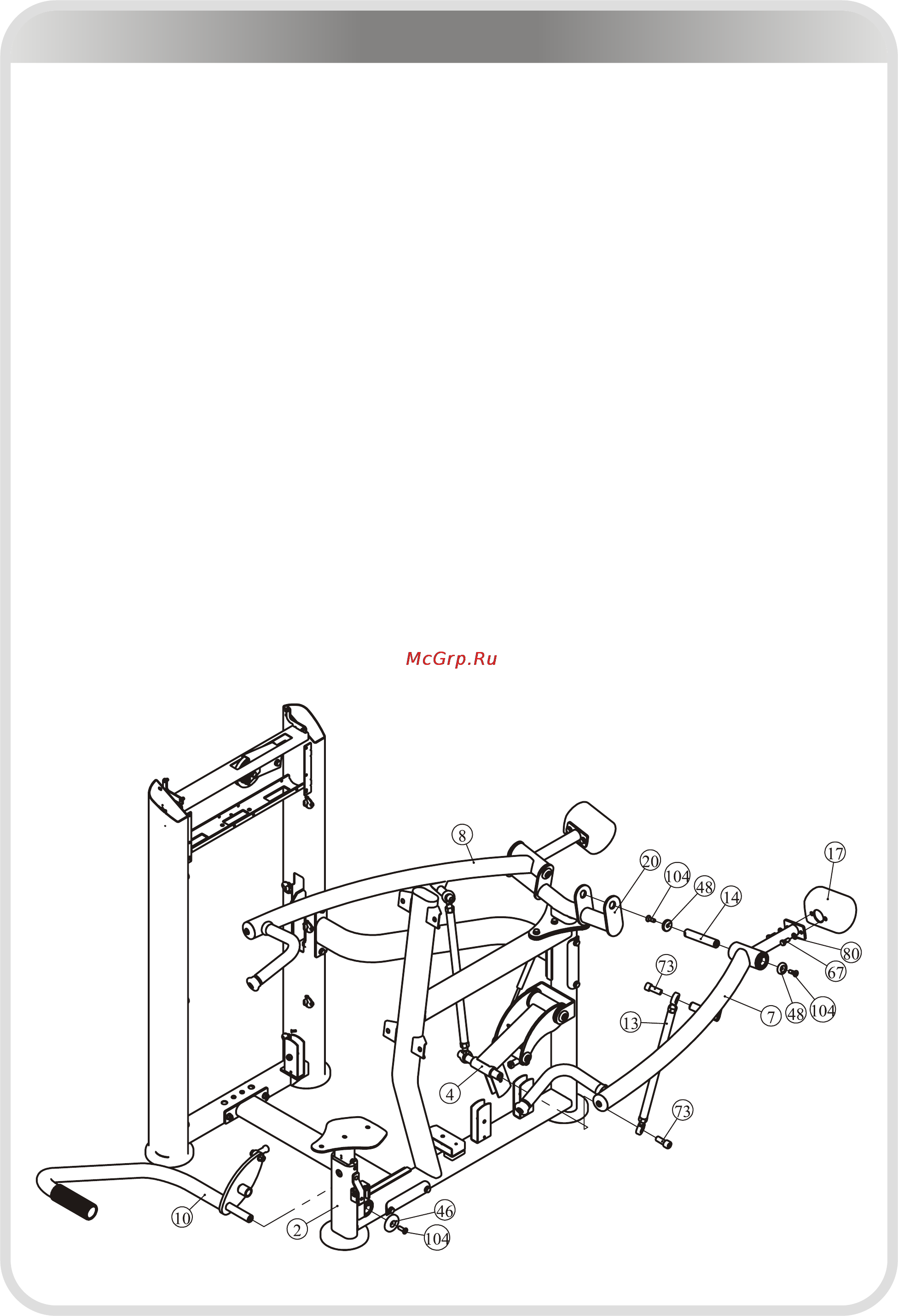

Assembly

STEP 2

1. Attach the Left Press Arm (#7) to the Top Frame (#20) using:

● two M10*25 FHCS (#104)

● two Φ50*Φ10.5*8 Aluminium Cap (#48)

● one Φ25.4*144 Pivot Axle (#14)

2. Attach the Right Press Arm (#8) to the Top Frame (#20) using:

● two M10*25 FHCS (#104)

● two Φ50*Φ10.5*8 Aluminium Cap (#48)

● one Φ25.4*144 Pivot Axle (#14)

3. Attach one Rod (#13) to the Left Press Arm (#7) and the Sway Pulley Bracket (#4)

using:

● two M16*40 SHCS (#73)

4. Attach another Rod (#13) to the Right Press Arm (#8) and the Sway Pulley Bracket

(#4) using:

● two M16*40 SHCS (#73)

5. Attach the Sway Bracket (#10) to the Main Frame (#2) using:

● one M10*25 FHCS (#104)

● one Φ60*Φ10.5*10 Aluminium Cap (#46)

Note: Wrench Tighten bolts and Nylon Lock nuts.
