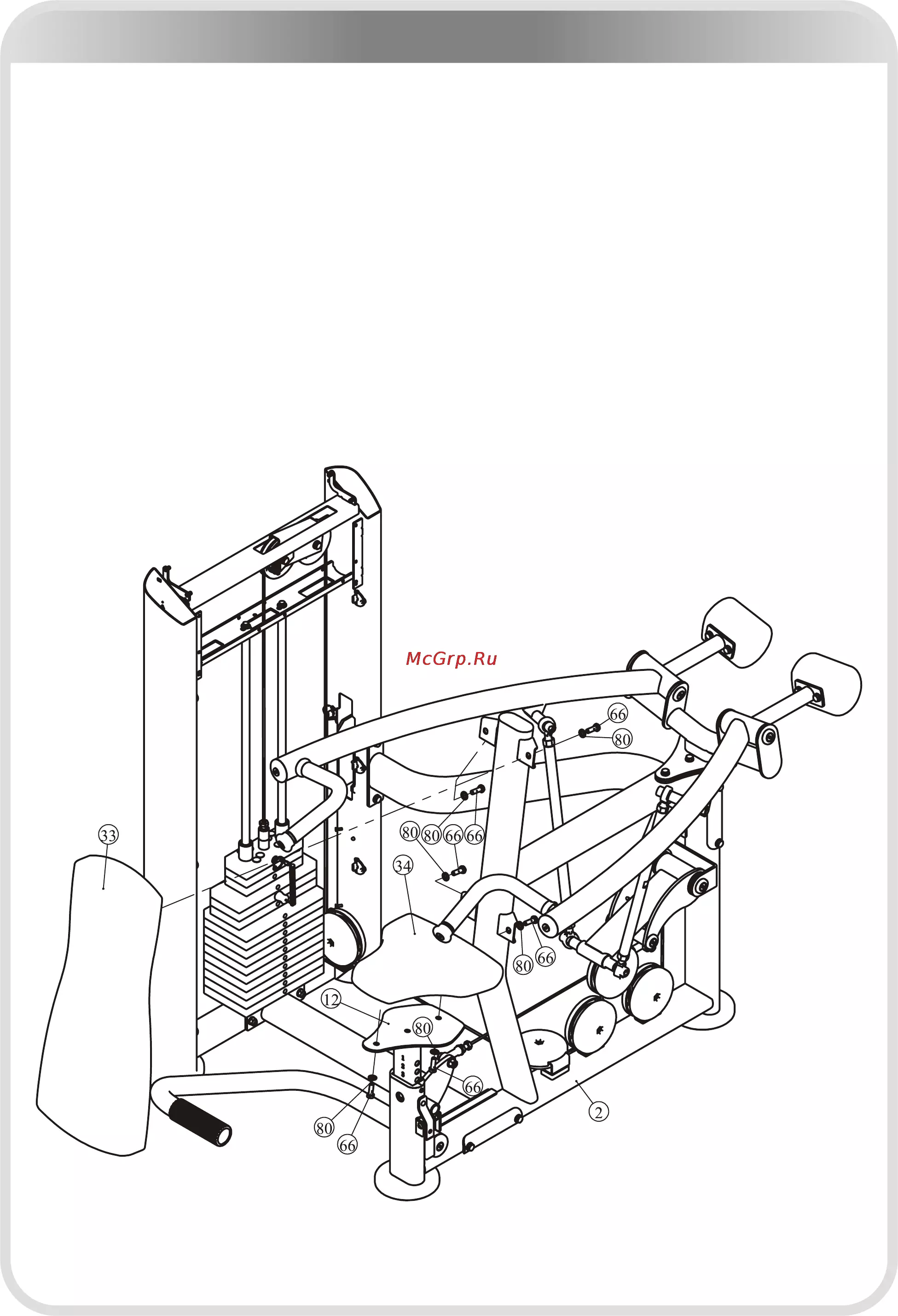

Assembly

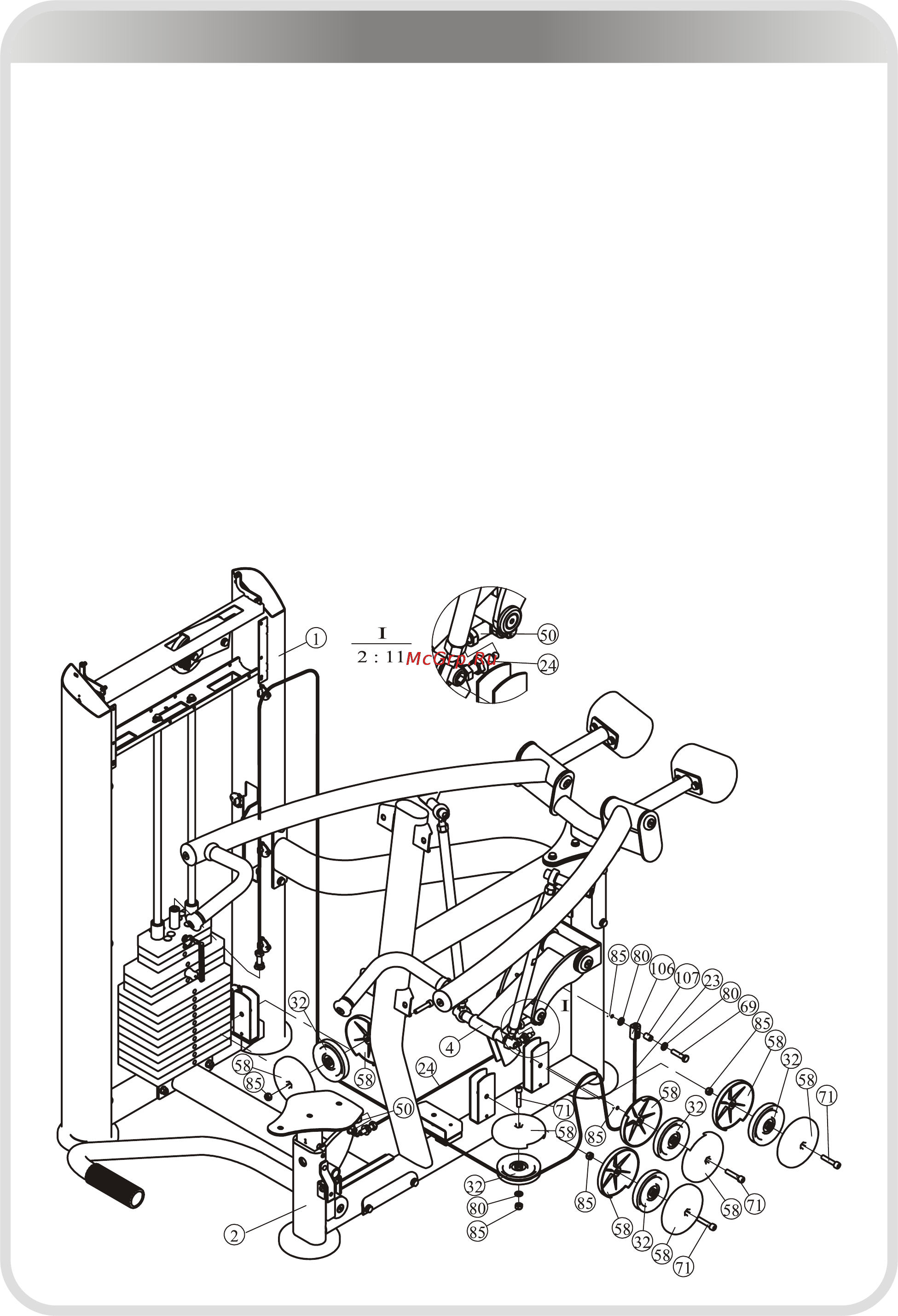

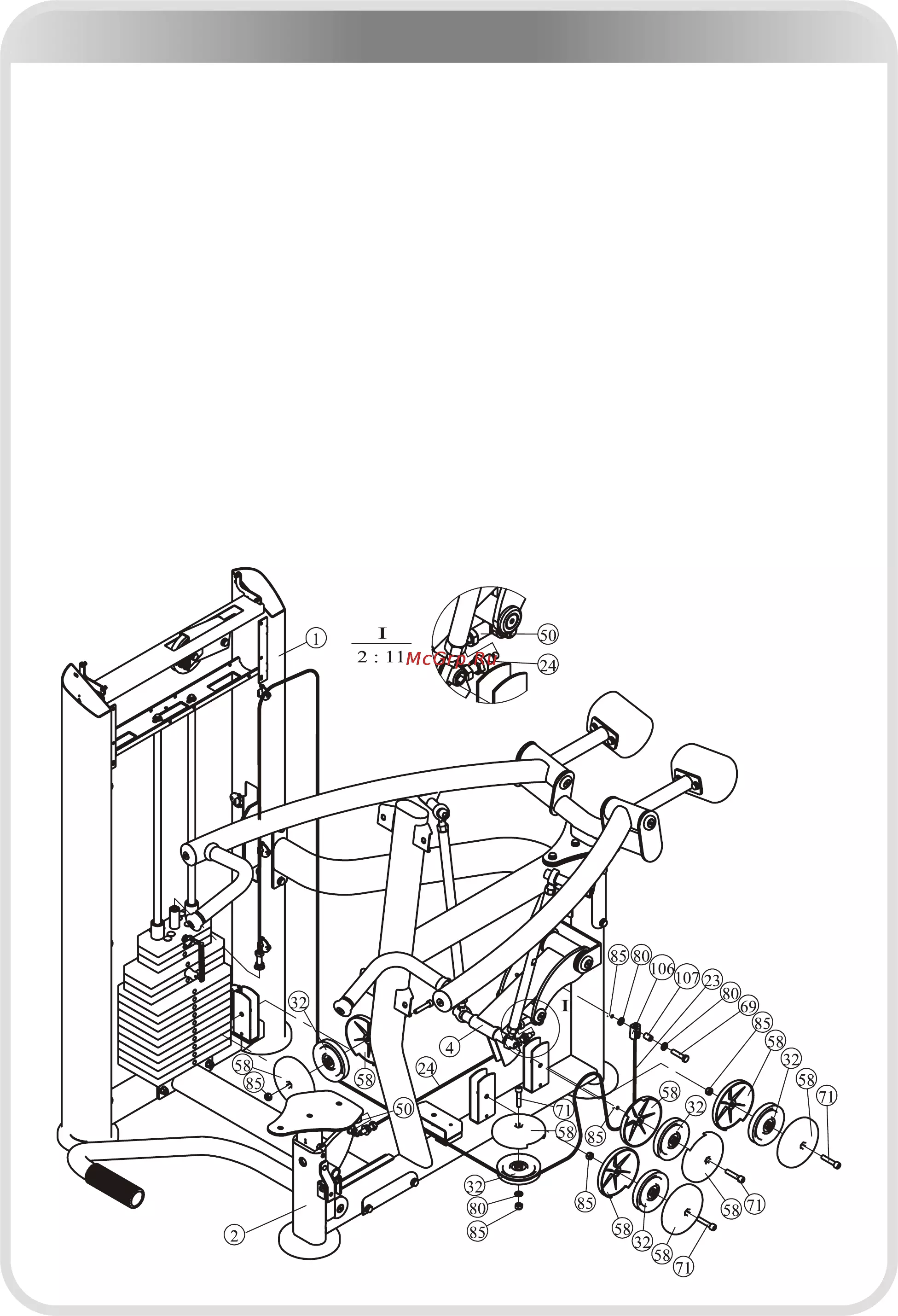

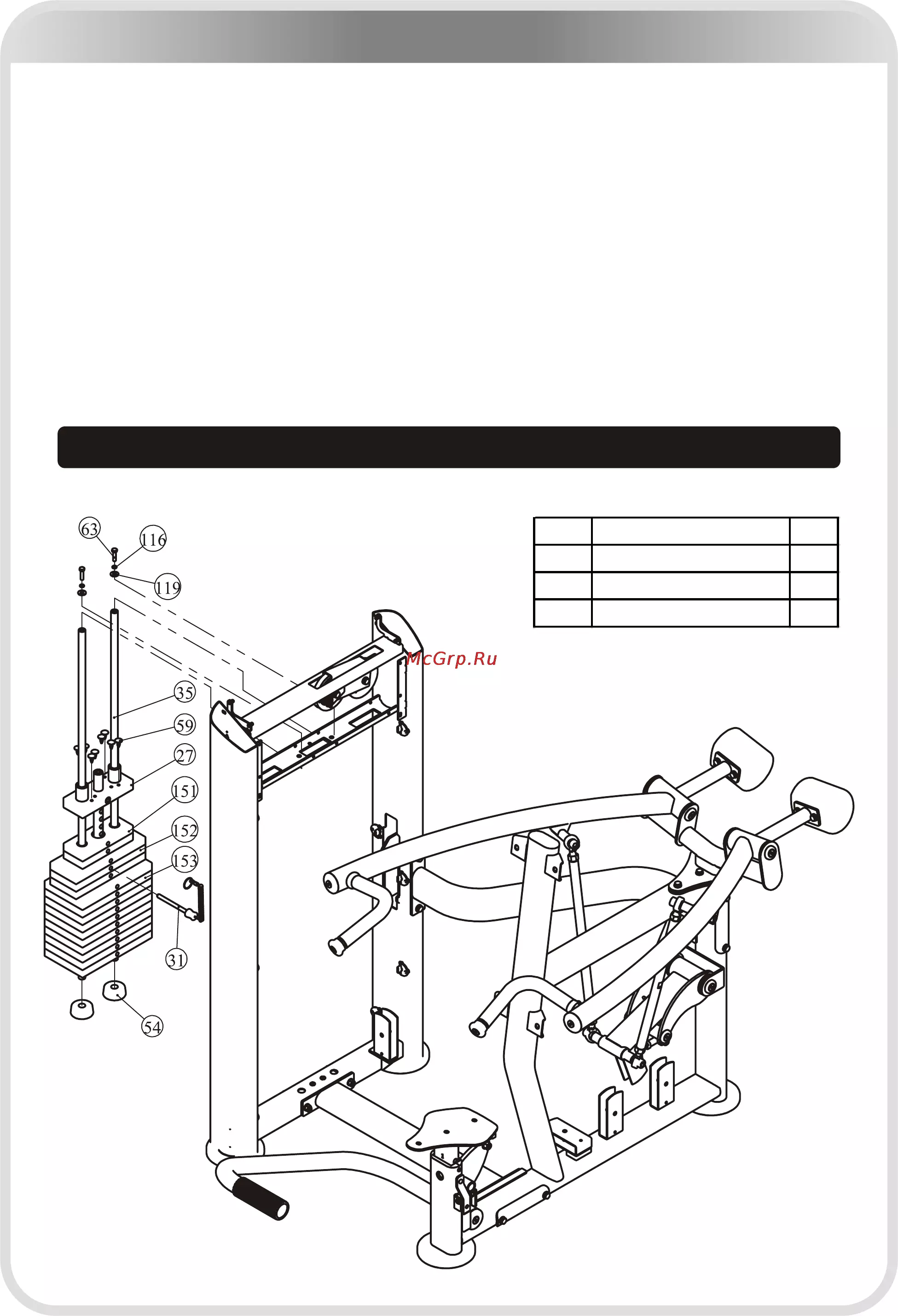

1. Attach the Shoulder Press Cable (#23) to the Top Plate (#27).

2. Attach one 4.5" Pulley (#32) to the Weight Stack Frame (#1) using:

● two Pulley Cover (#58) ● one M10*50 SHCS (#71)

● one M10 Nylon lock Nut (#85)

3. Attach three 4.5" Pulley (#32) to the Main Frame (#2) using:

● five Pulley Cover (#58) ● three M10*50 SHCS (#71)

● one Φ11*Φ20*2 Flat Washer (#80) ● three M10 Nylon lock Nut (#85)

4. Attach one 4.5" Pulley (#32) to the Sway Pulley Bracket (#4) using:

● one M10*50 SHCS (#71) ● two Pulley Cover (#58)

● one M10 Nylon lock Nut (#85)

5. Attach the Shoulder Press Cable (#23) to the Sway Pulley Bracket (#4) using:

● one M10*45 HHB (#69) ● two Φ11*Φ20*2 Flat Washer (#80)

● one M10 Nylon lock Nut (#85) ● one Cable End (#106)

● one Φ10*Φ14*20 Spacer (#107)

6. Attach the Spare Cable (#24) to two Tie Rod End 1/2"-13 (#50).

Note: Wrench Tighten bolts and Nylon Lock nuts.

STEP 4
