Assembly

Here is the assembly instruction for 275LBS Weights !

275LBS Weight

Item Description Qty

151 Weight Plate 10LBS 2

152 Weight Plate 15LBS 3

153 Weight Plate 20LBS 10

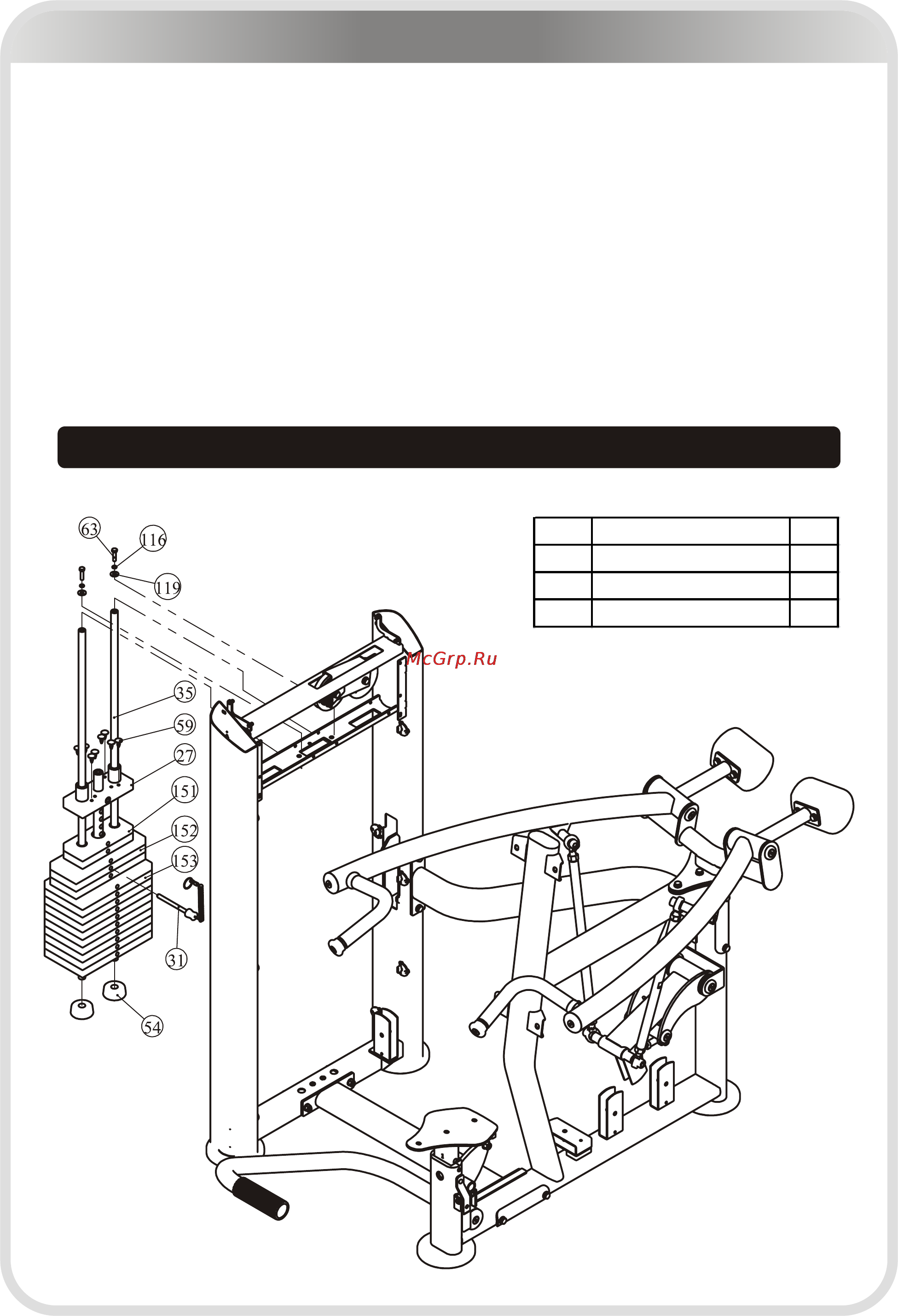

STEP 3

1. Attach:

● two Φ19*1177 Guide Rods (#35) ● two Φ63.5*Φ19*25.4 Weight Rubber Bumper (#54)

● ten Weight Plate 20LBS (#153) ● three Weight Plate 15LBS (#152)

● two Weight Plate 10LBS (#151) ● one Top Plate (#27)

to the Weight Stack Frame (#1) using:

● two M8*30 HHB (#63) ● two Φ8 Spring Washers (#116)

● two Φ9*Φ22*1.6 Flat Washers (#119) ● two Φ29*Φ19*10 Rubber Plugs (#115)

2. Attach the Selector Pin W/Coil (#31) to the Top Plate (#27).

3. Attach eight Φ8*Φ20*23 Buttons (#59) to the Top Plate (#27).

Note: Wrench Tighten bolts and Nylon Lock nuts.
