Assembly

Here is the assembly instruction for Plastic Cover !

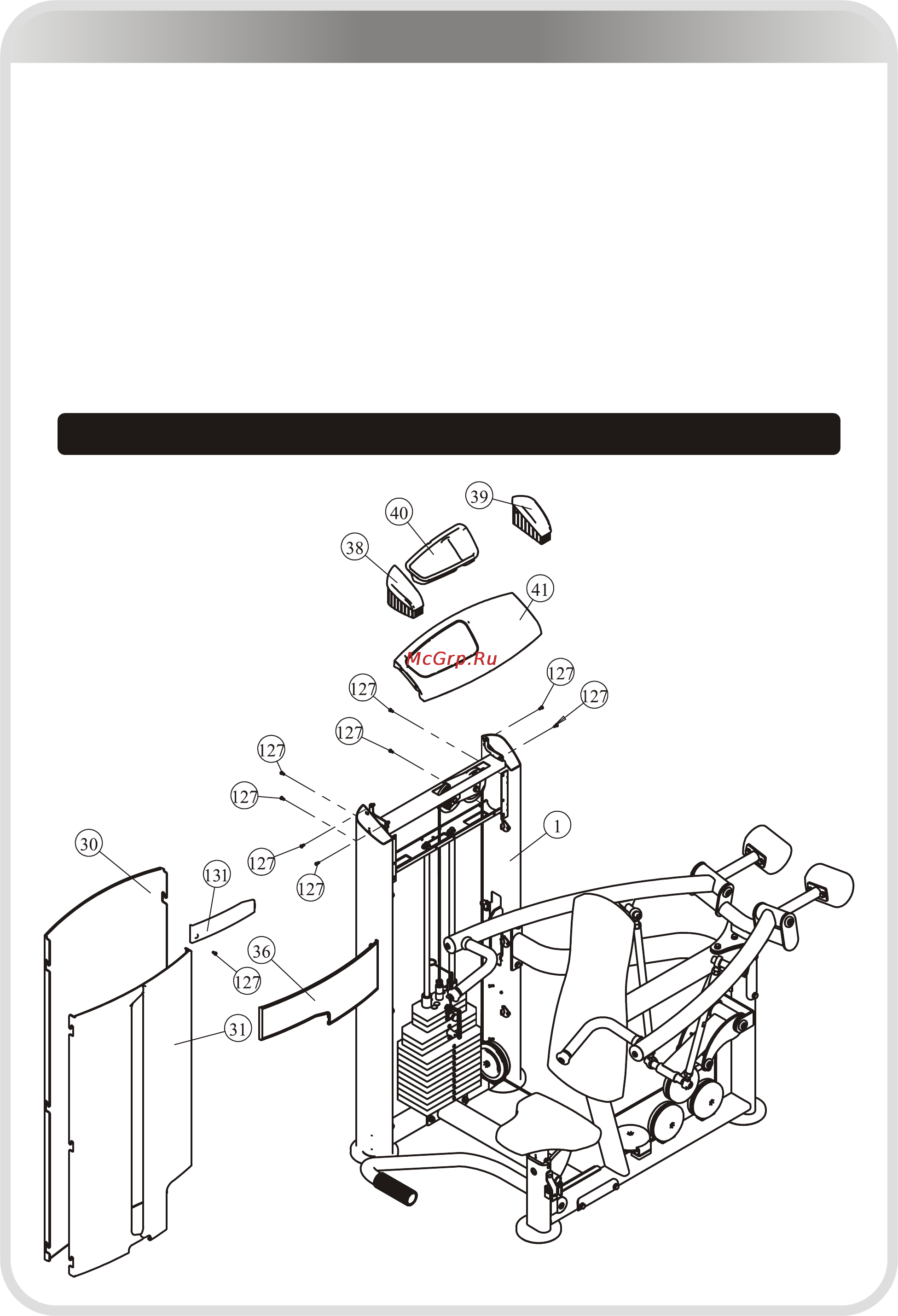

STEP 6

1. Attach one Front Shroud (#31) to the Weight Stack Frame (#1).

2. Attach the Top Front Shroud (#41) and the Plastic Cover (#131) to the Weight

Stack Frame (#1) using:

● five M5*12 Screws (#127)

3. Attach the Top Cover (#41) to the Weight Stack Frame (#1) using:

● four M5*12 Screws (#127)

4. Attach the Left Plug (#38) and Right Plug (#39) to the Weight Stack Frame (#1).

5. Attach one Rear Shroud (#30) to the Weight Stack Frame (#1).

Note: Wrench Tighten bolts and Nylon Lock nuts.
