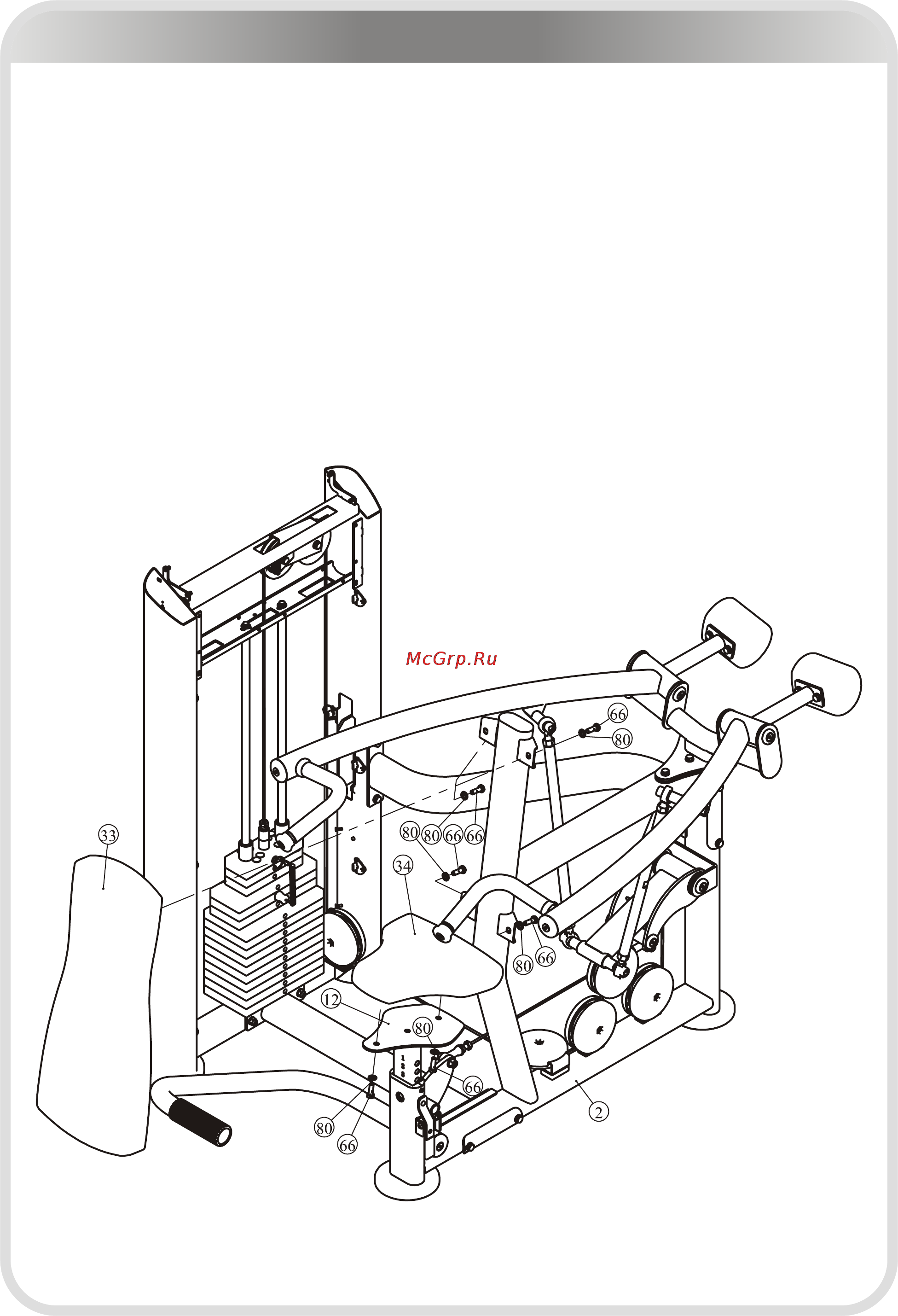

1. Attach the Seat Pad (#34) to the Seat Pad Support (#12) using:
● two M10*30 HHB (#66)
● two Φ11*Φ20*2 Flat Washers (#80)
2. Attach the Back Pad (#33) to the Main Frame (#2) using:
● four M10*30 HHB (#66)
● four Φ11*Φ20*2 Flat Washers (#80)
Note: Wrench Tighten bolts and Nylon Lock nuts.
─ 16 ─

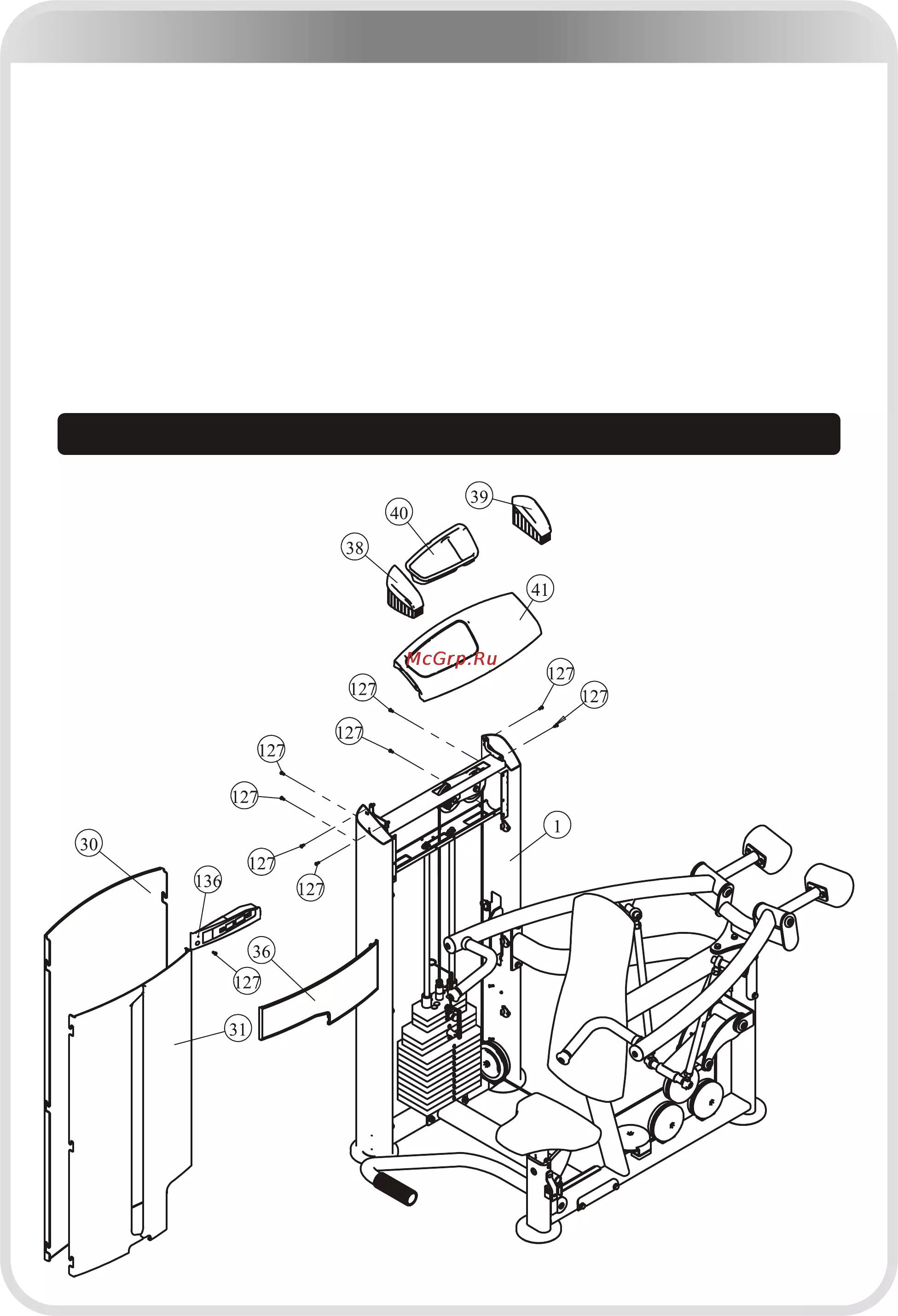

Assembly
STEP 5
