─ 13 ─

Assembly

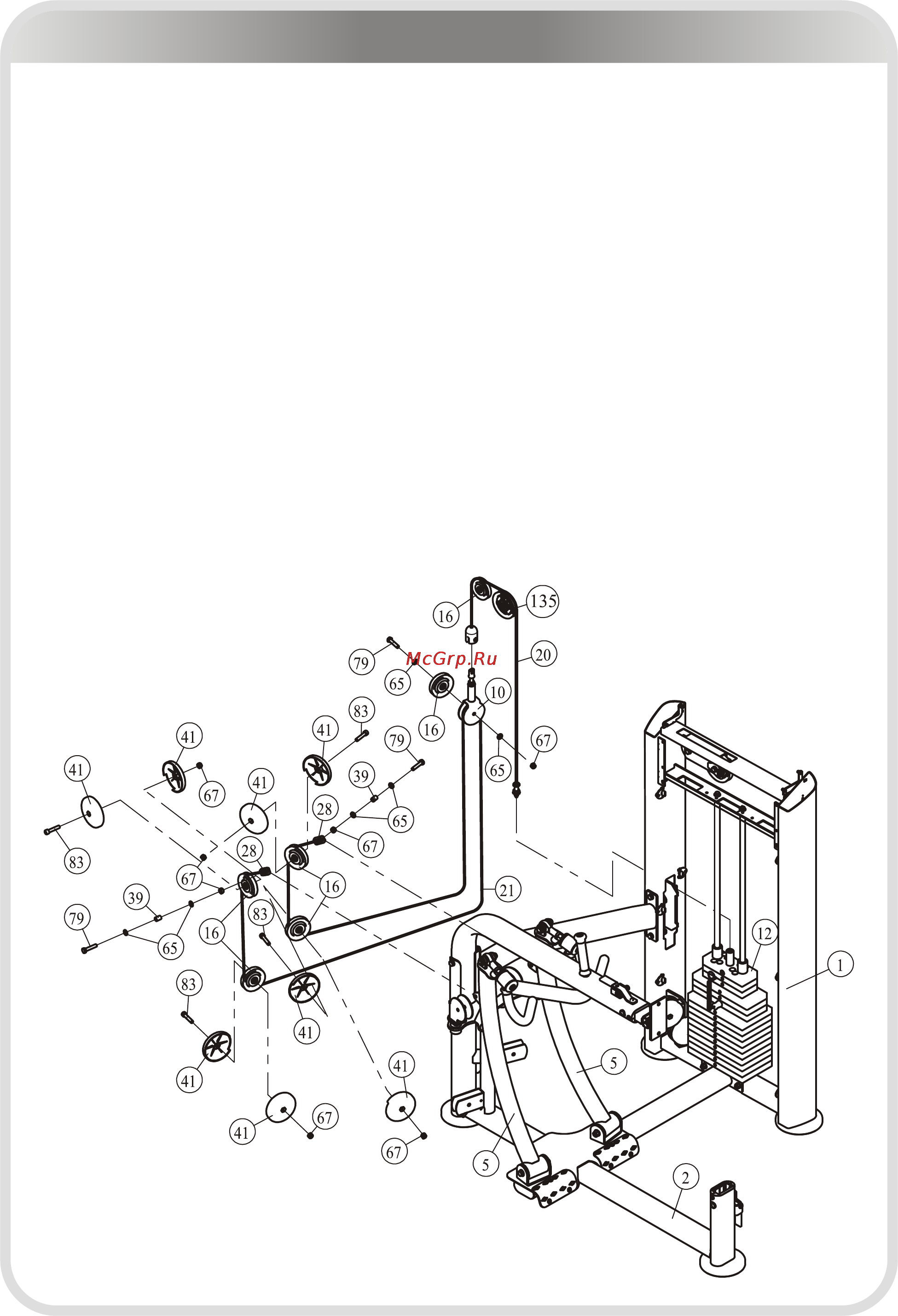

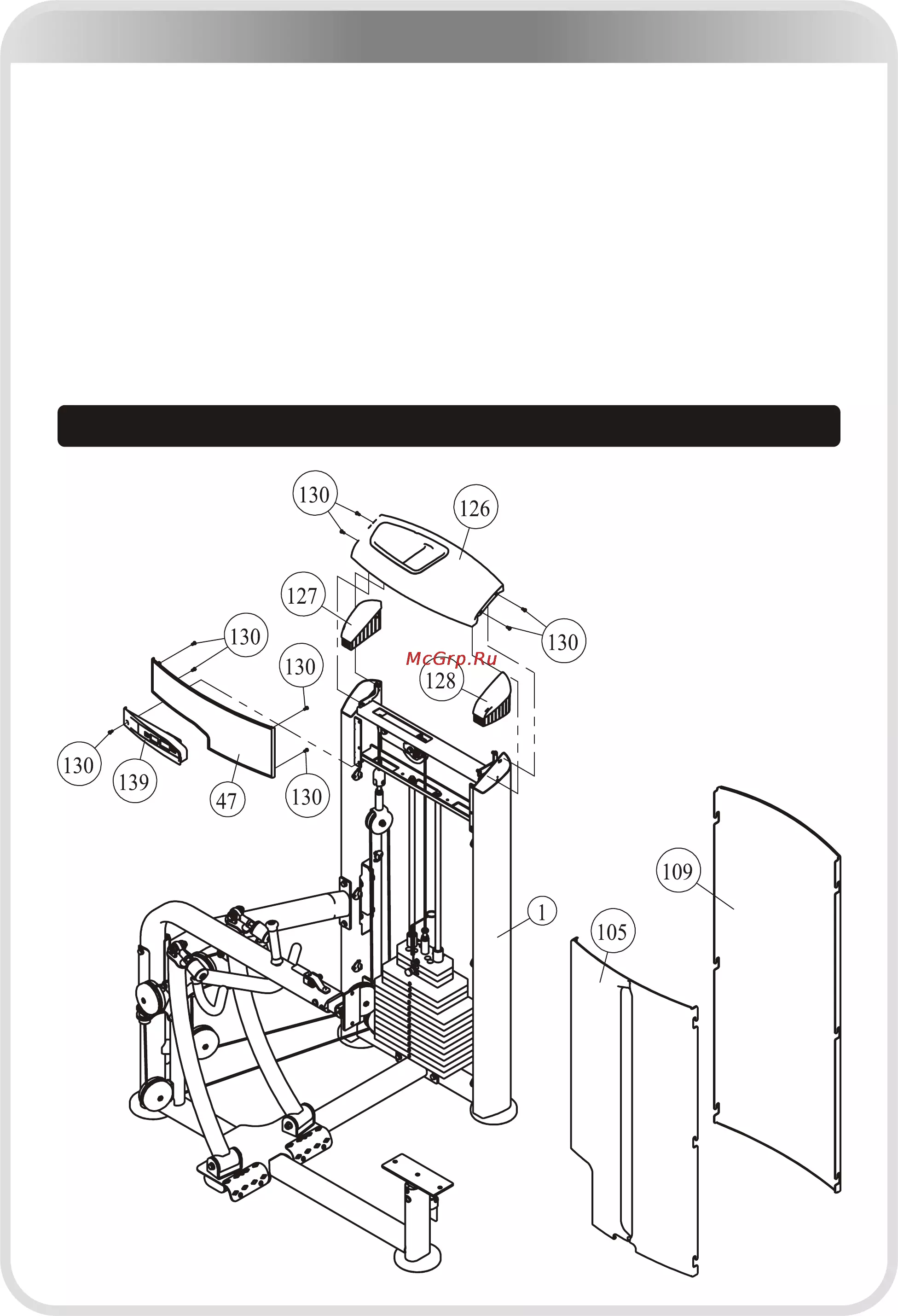

1. Attach four 3.5" Pulleys (#16) to the Main Frame (#2) using:

● four M10*50 SHCS (#83) ● four M10 Nylon lock Nuts (#67)

● eight Φ114*24 Pulley Covers (#41)

2. Attach one 3.5" Pulley (#16) to the Mobile Frame (#10) using:

● one M10*50 HHB (#79) ● two Φ11*Φ20*2 Flat Washers (#65)

● one M10 Nylon Lock Nut (#67)

4. Attach the Cable_1 (#20) go through one 3.5" Pulley (#16) and one 4.5" Pulley

(#135) to the Top Plate (#12) and the Mobile Frame (#10).

5. Attach the Cable_2 (#21) to the Mobile Frame (#10) and two Lat Arms (#5) using:

● two M10*50 HHB (#79) ● four Φ11*Φ20*2 Flat Washers (#65)

● two M10 Nylon Lock Nut (#67) ● two Φ25.4*Φ10*37 Cable Ends (#28)

● two Φ10*Φ14*20 Spacers (#39)

Note: Wrench Tighten Bolts and Nylon Lock nuts.

STEP 3
