─ 17 ─

Assembly

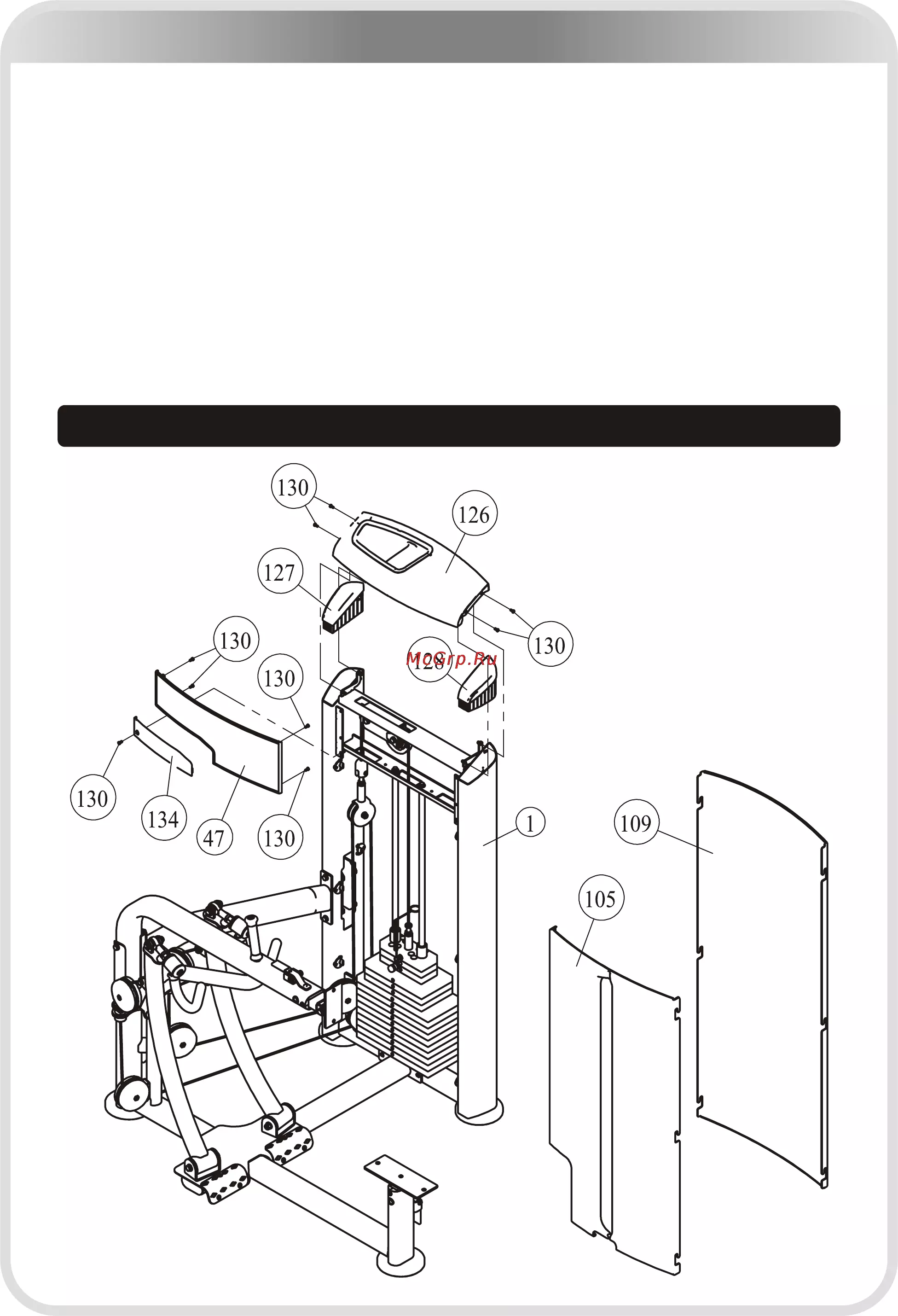

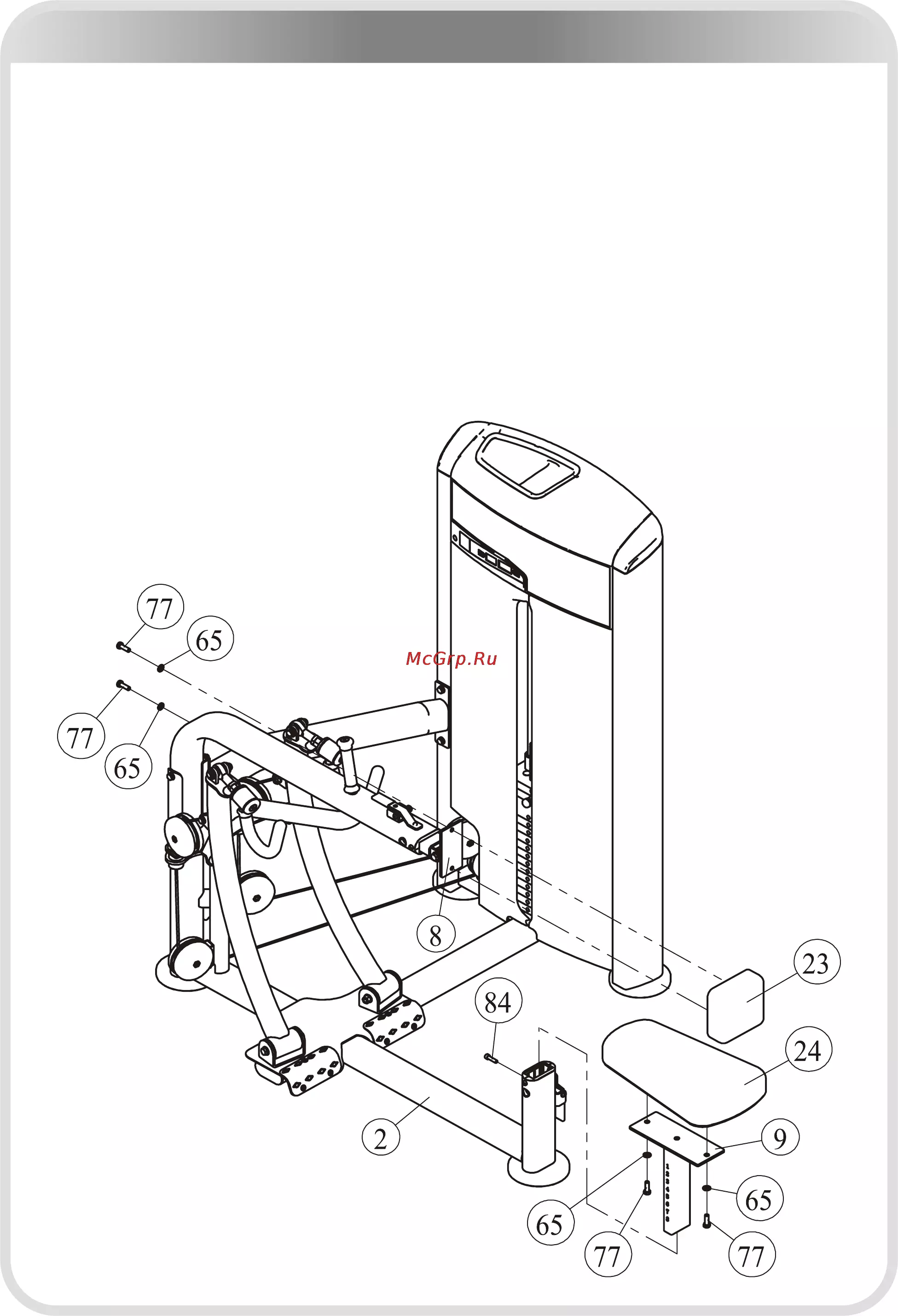

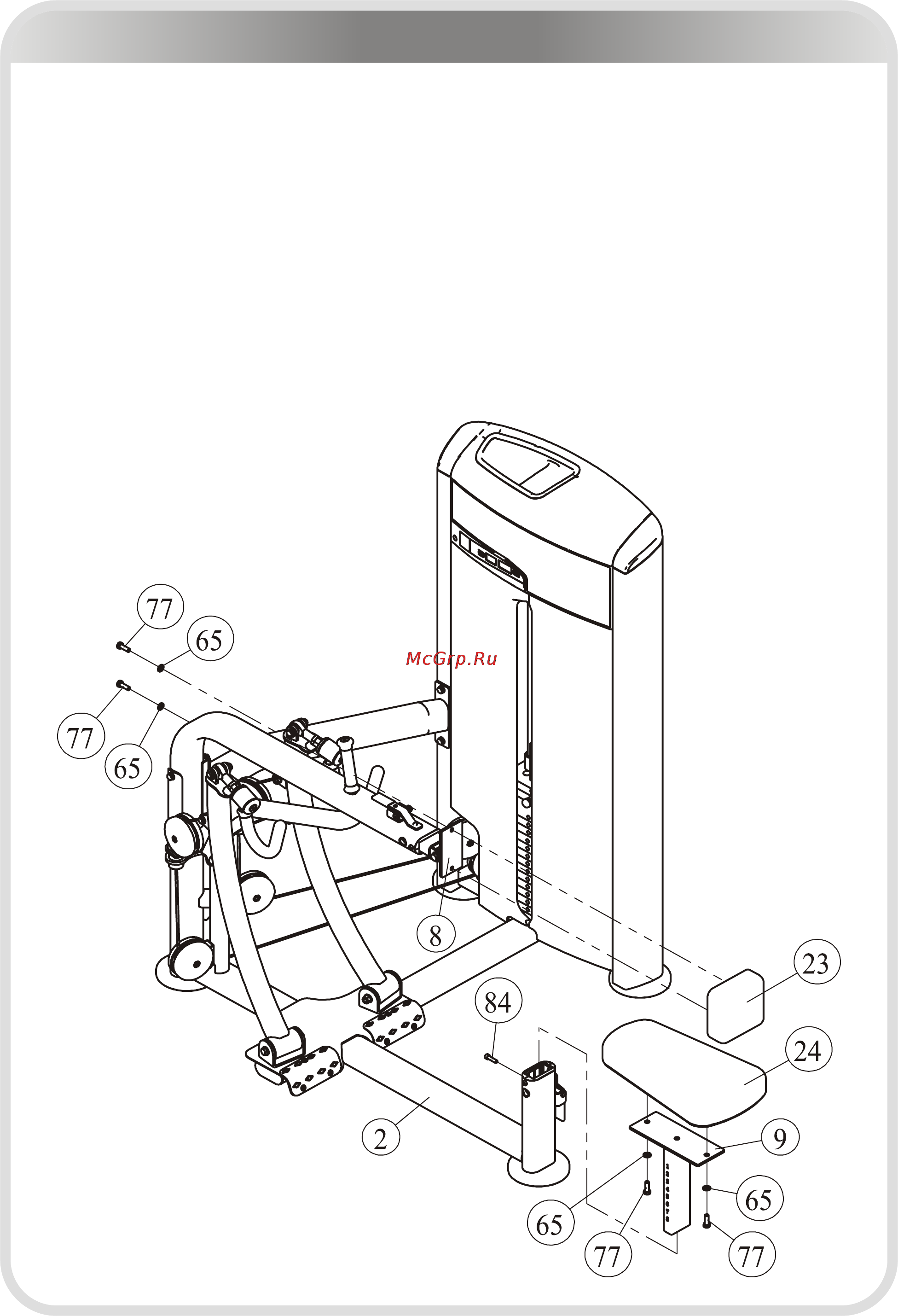

1. Attach the Chest Pad (#23) to the Chest Pad Support (#8) using:

● two M10*30 HHB (#77)

● two Φ11*Φ20*2 Flat Washers (#65)

2. Attach the Seat Pad (#24) to the Seat Pad Support (#9) using:

● two M10*30 HHB (#77)

● two Φ11*Φ20*2 Flat Washers (#65)

3. Insert the Seat Pad Support (#9) into the Main Frame (#2) and secure it into place

with the Adjustable Support (#13), then fully tighten the M8*30 SHCS (#84).

Note: Wrench Tighten Bolts and Nylon Lock nuts.

STEP 5
