─ 14 ─

Assembly

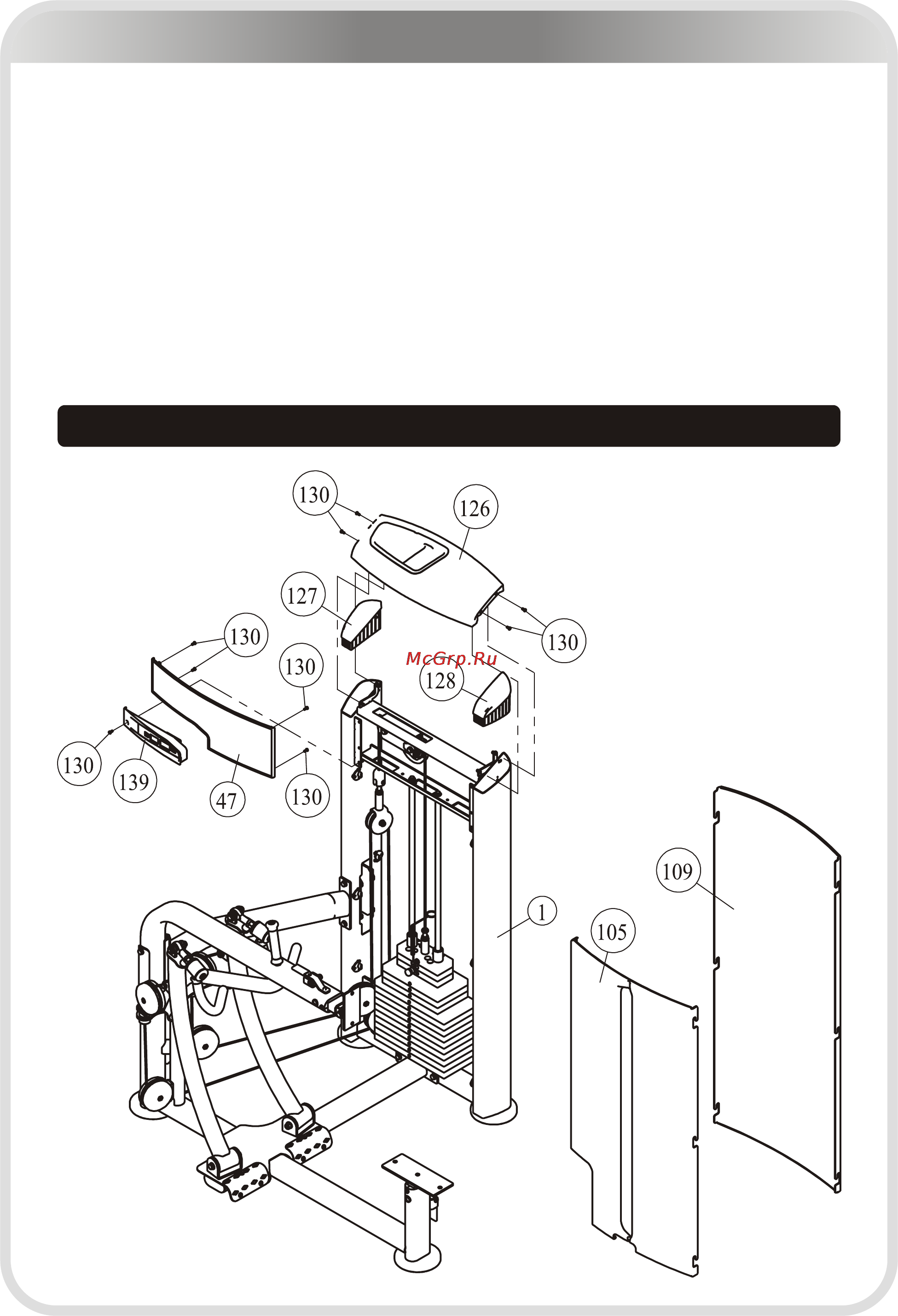

STEP 4

1. Attach one Front Shroud (#105) to the Weight Stack Frame(#1).

2. Attach one Rear Shroud (#109) to the Weight Stack Frame(#1).

3. Attach the Top Front Shroud (#47) and the Console PCB (#139) to the Weight

Stack Frame (#1) using:

● five M5*12 Screws (#130)

4. Attach the Top Cover (#126) to the Weight Stack Frame (#1) using:

● four M5*12 Screws (#130)

5. Attach the Left Plug (#127) and Right Plug (#128) to the Weight Stack Frame (#1).

Note: Wrench Tighten bolts and Nylon Lock nuts.

Here is the assembly instruction for Console PCB !
