─ 10 ─

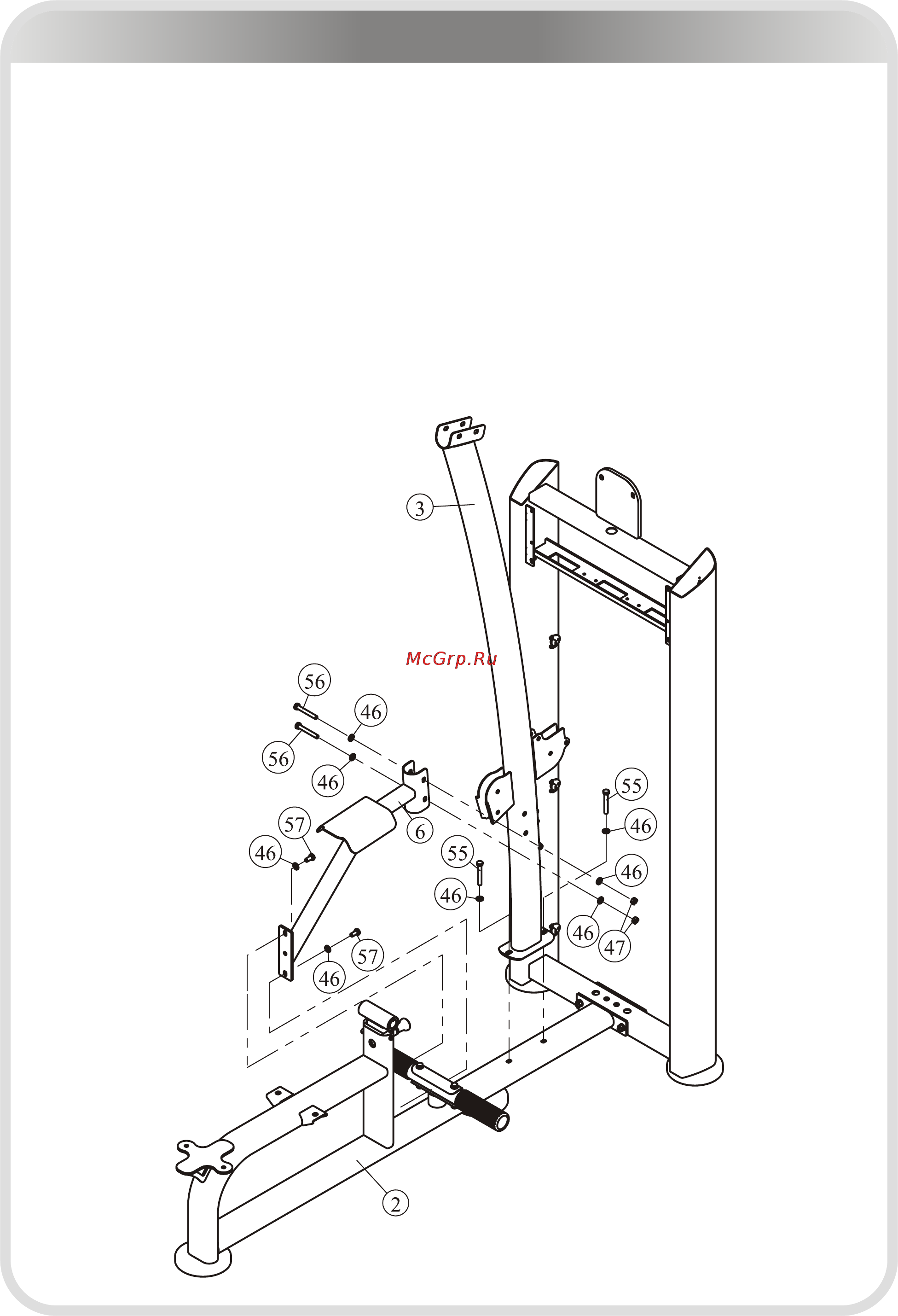

Assembly

STEP 2

1. Attach the Front Frame (#3) to the Seated Frame (#2) using:

● two M10*70 HHB (#55)

● two Φ11*Φ20*2 Flat Washers (#46)

2. Attach the Support Frame (#6) to the Seated Frame (#2) and the Front Frame (#3)

using:

● two M10*75 HHB (#56)

● two M10*20 HHB (#57)

● six Φ11*Φ20*2 Flat Washers (#46)

● two M10 Nylon lock Nuts (#47)

Note: Hand Tighten Bolts and Nylon Lock Nuts.
