Assembly

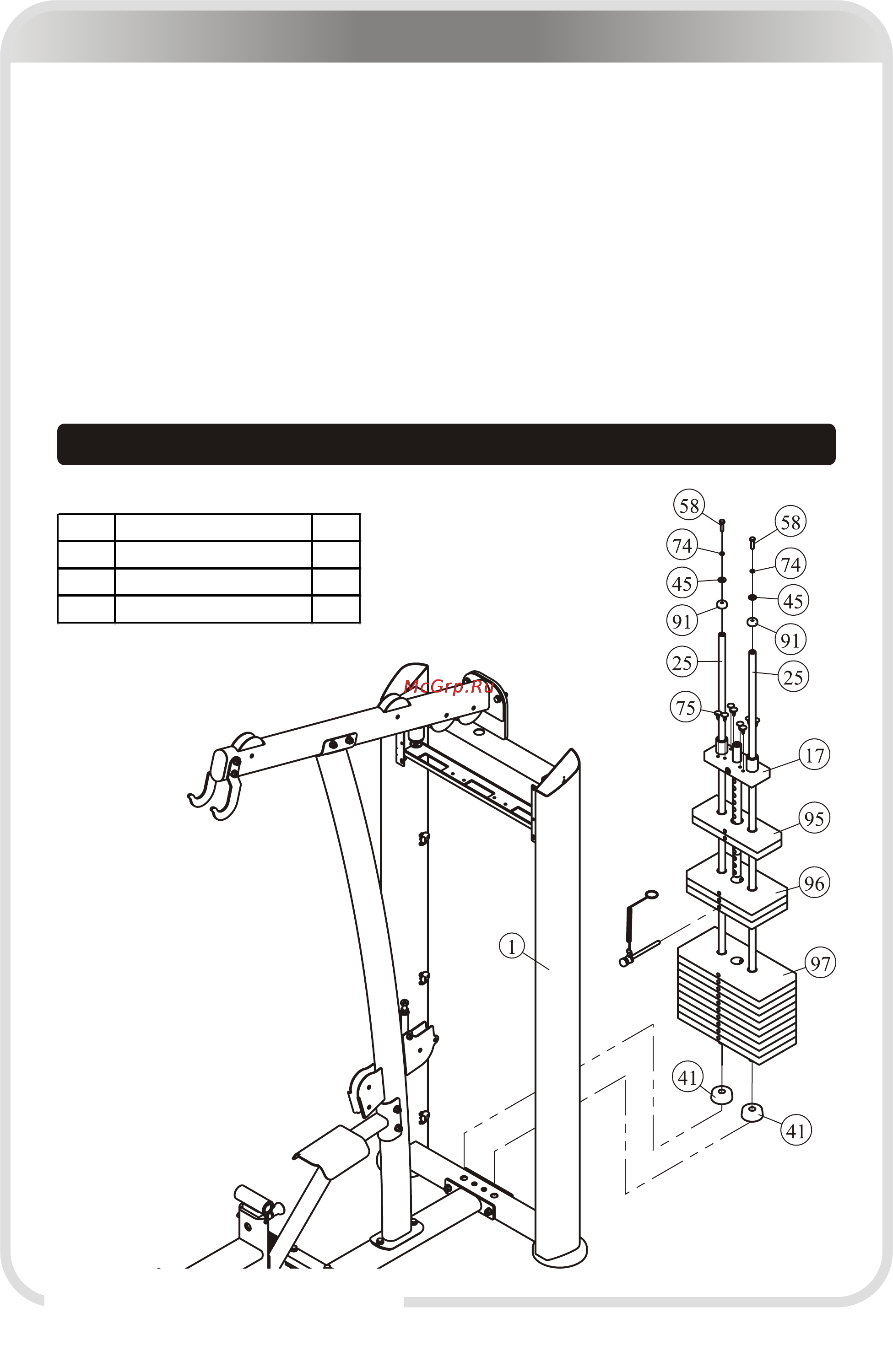

Here is the assembly instruction for 275LBS Weights !

275LBS Weight

Item Description Qty

95 Weight Plate 10LBS 2

96 Weight Plate 15LBS 3

97 Weight Plate 20LBS 10

1. Attach:

● two Guide Rod (#25) ● two Φ63.5*Φ19*25.4 Weight Rubber Bumper (#41)

● ten Weight Plate 20LBS (#97) ● three Weight Plate 15LBS (#96)

● two Weight Plate 10LBS (#95) ● one Top Plate (#17)

to the Weight Stack Frame (#1) using:

two M8*30 HHB (#58)

●

● two Φ8 Spring Washers (#74)

● two Φ9*Φ22*1.6 Flat Washesr (#45) ● two Φ29*Φ19*10 Rubber Plugs (#91)

2. Attach the Selector Pin W/Coil (#19) to the Top Plate (#17).

3. Attach eight Buttons (#75) to the Top Plate (#17).

Note: Hand Tighten Bolts and Nylon Lock Nuts.

STEP 4
