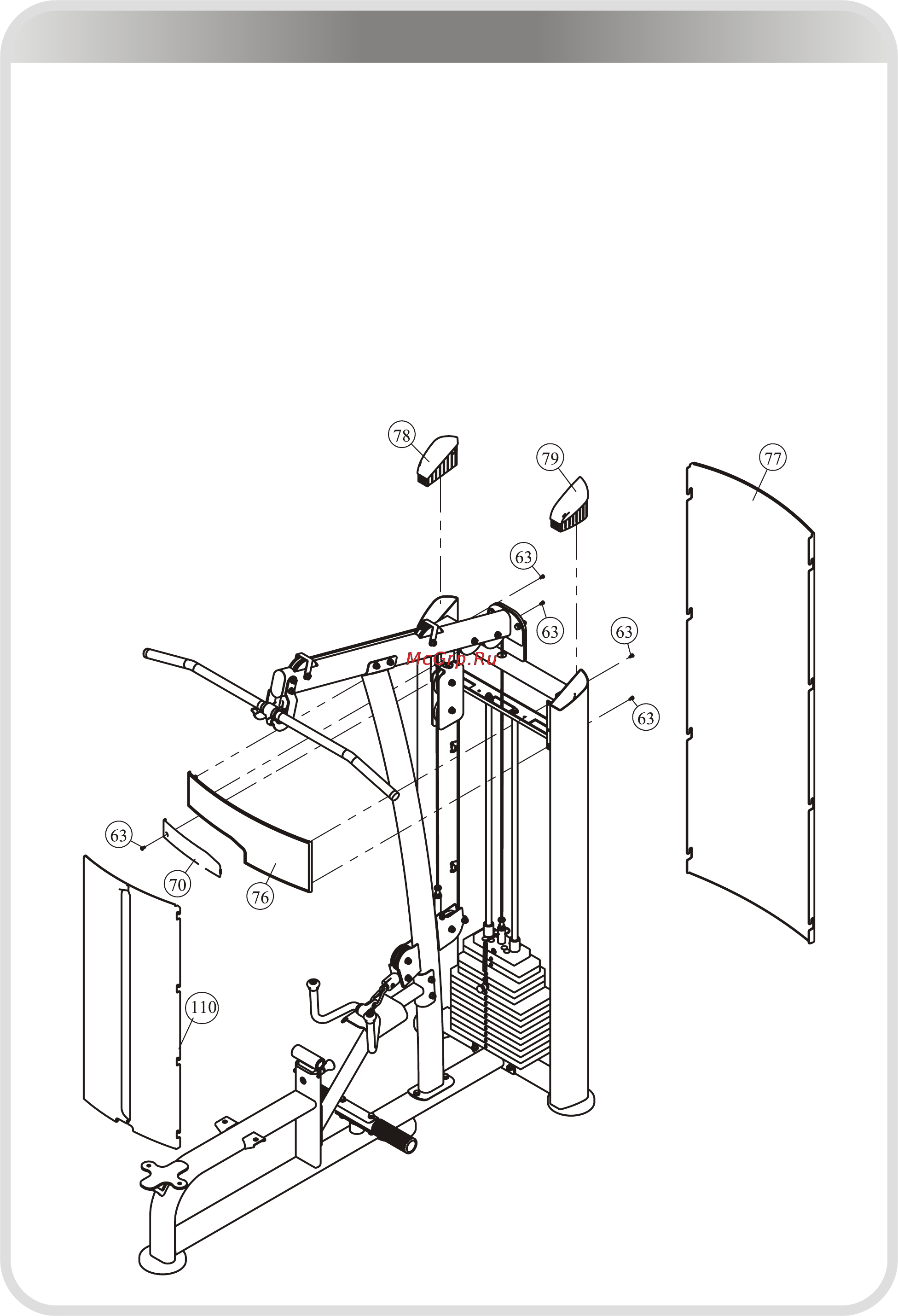

Assembly

1. Attach the Top Front Shroud (#76) to the Weight Stack Frame (#1) using:

● four M5*12 BHCS (#63)

2. Attach the Plastic Cover (#70) to theTop Front Shroud (#76) and the Weight Stack

Frame (#1) using:

● one M5*12 BHCS (#63)

3. Attach the Rear Shroud (#77) to the Weight Stack Frame (#1).

4. Attach the Left Plug (#78) and the Right Plug (#79) to the Weight Stack Frame (#1).

5. Attach the Front Shroud (#110) to the Weight Stack Frame (#1).

Note: Wrench Tighten Bolts and Nylon Lock Nuts.

STEP 6
