─ 17 ─

Assembly

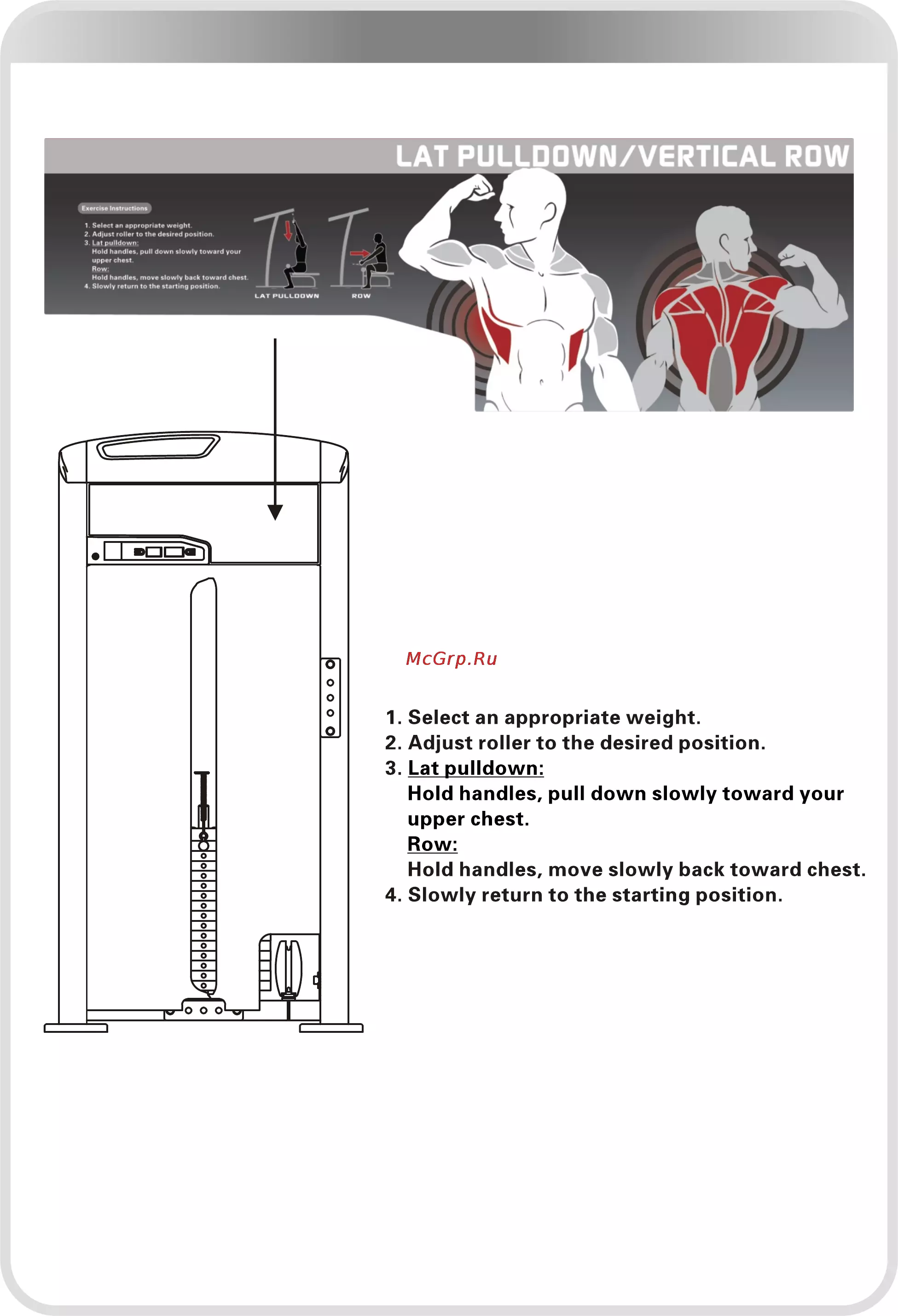

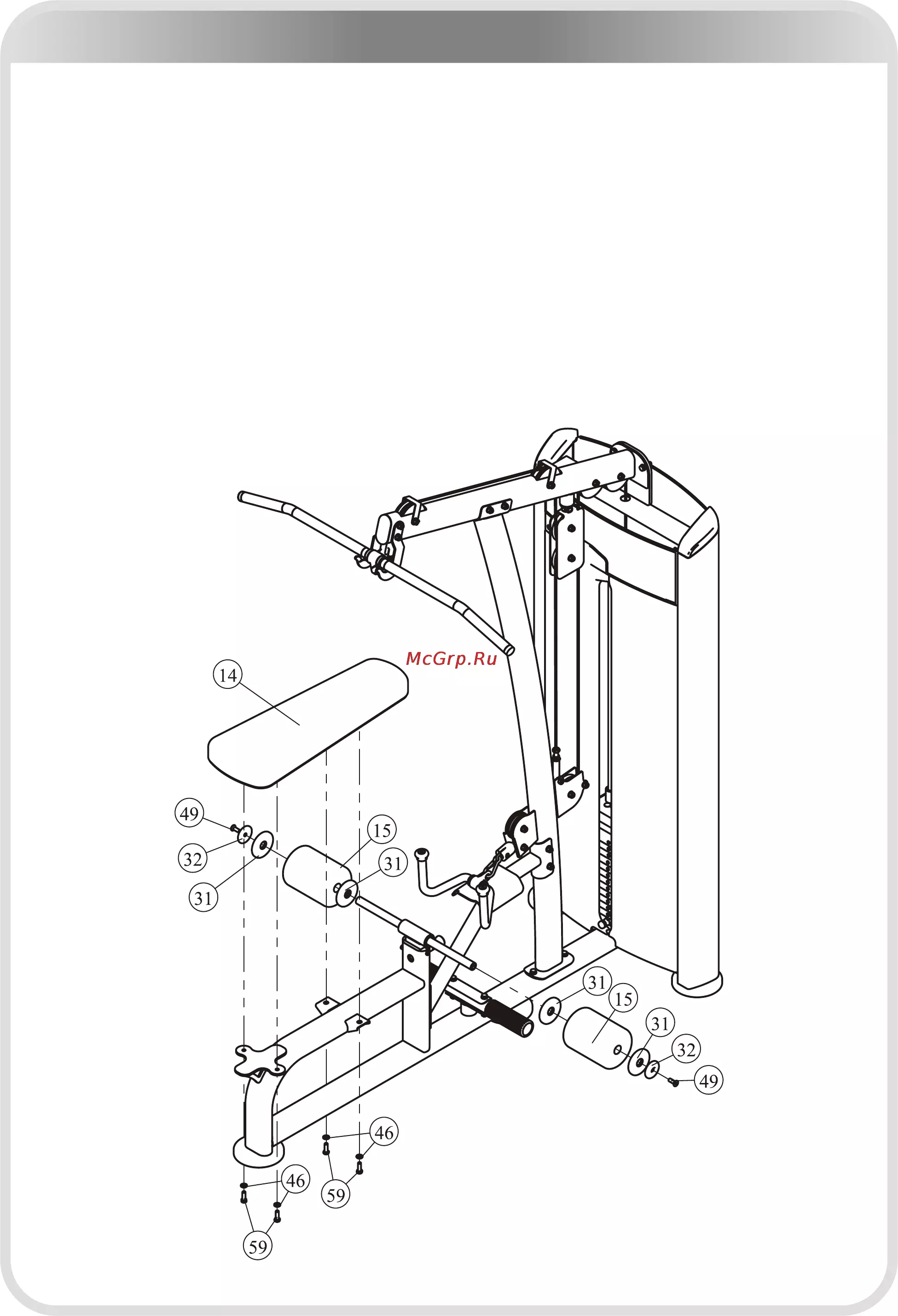

STEP 7

1. Attach the Seat Pad (#14) to the Seated Frame (#2) using:

● four M10*30 HHB (#59)

● four Φ11*Φ20*2 Flat Washers (#46)

2. Insert the Foam Tube (#24) to the Foam Support Frame (#4), and then attach two

Short Foam (#15) to the Foam Tube (#24) using:

● four Aluminium Ring (#31)

● two Φ60*Φ10.5*10.9 Bit Washers (#32)

● two M10*30 FHCS (#49)

3. Tighten two M8*8 Socket Set Screws (#62) in Foam Support Frame (#4).

Note: Wrench Tighten Bolts and Nylon Lock Nuts.
