─ 9 ─

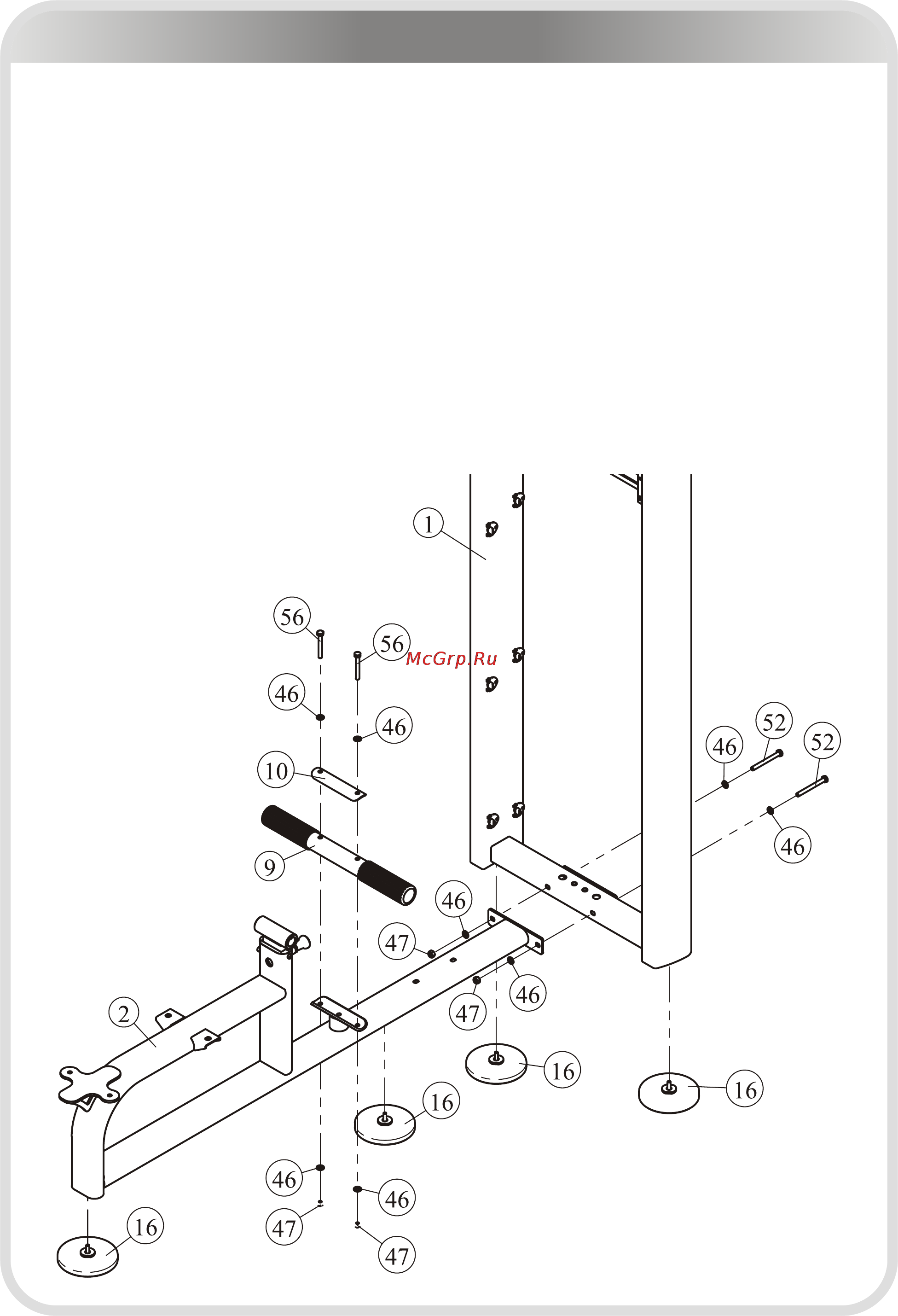

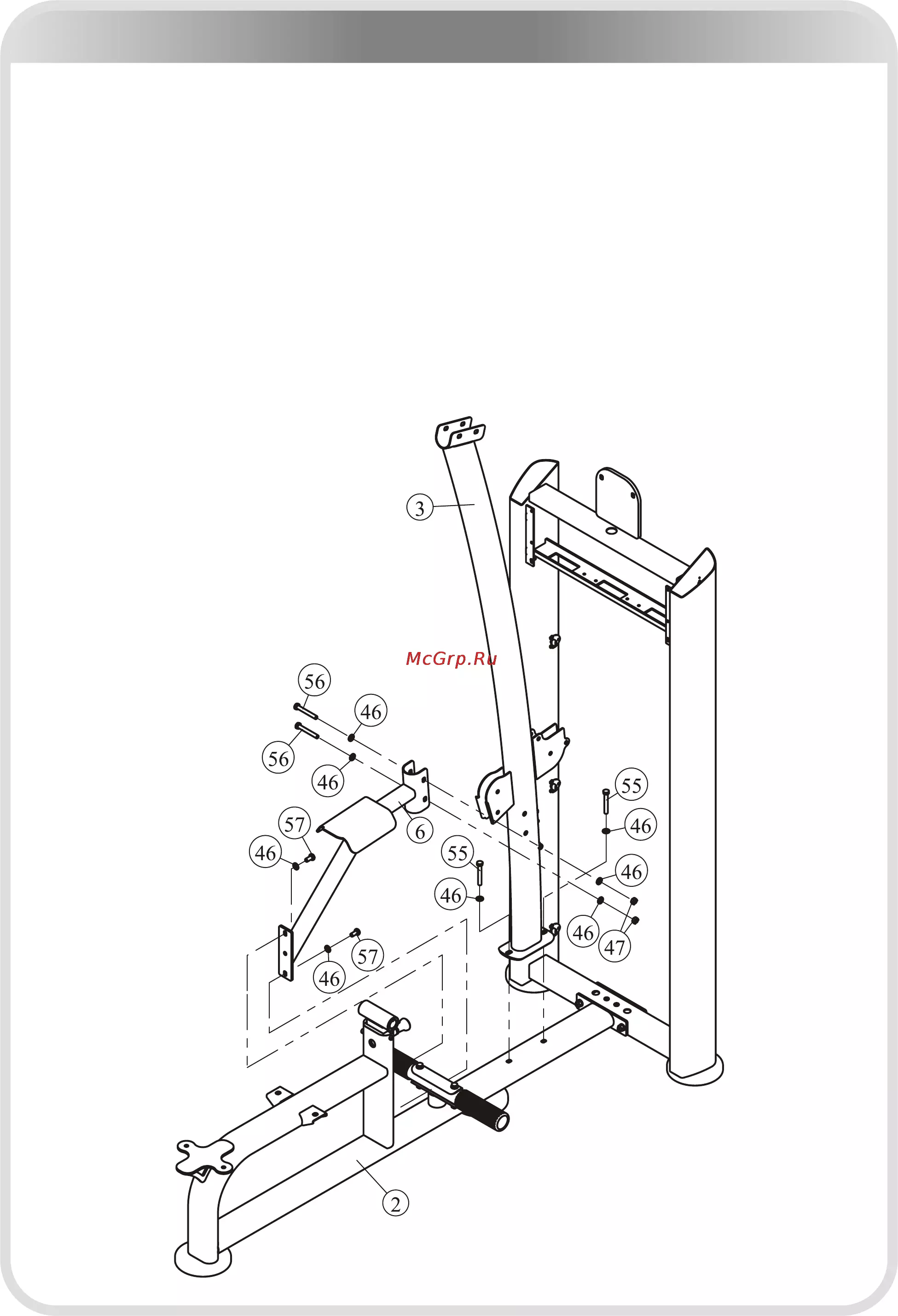

Assembly

1. Attach two Adjustable Foot Plates (#16) to the Weight Stack Frame (#1).

2. Attach two Adjustable Foot plates (#16) to the Seated Frame (#2).

3. Attach the Seated Frame (#2) to the the Weight Stack Frame (#1) using:

● two M10*100 HHB (#52)

● four Φ11*Φ20*2 Flat Washer (#46)

● two M10 Nylon lock Nuts (#47)

4. Attach the Foot Tube (#9) and the Cover Plate (#10) to the Seated Frame (#2) using:

● two M10*75 HHB (#56)

● four Φ11*Φ20*2 Flat Washer (#46)

● two M10 Nylon lock Nuts (#47)

Note: Hand Tighten Bolts and Nylon Lock Nuts.

STEP 1
