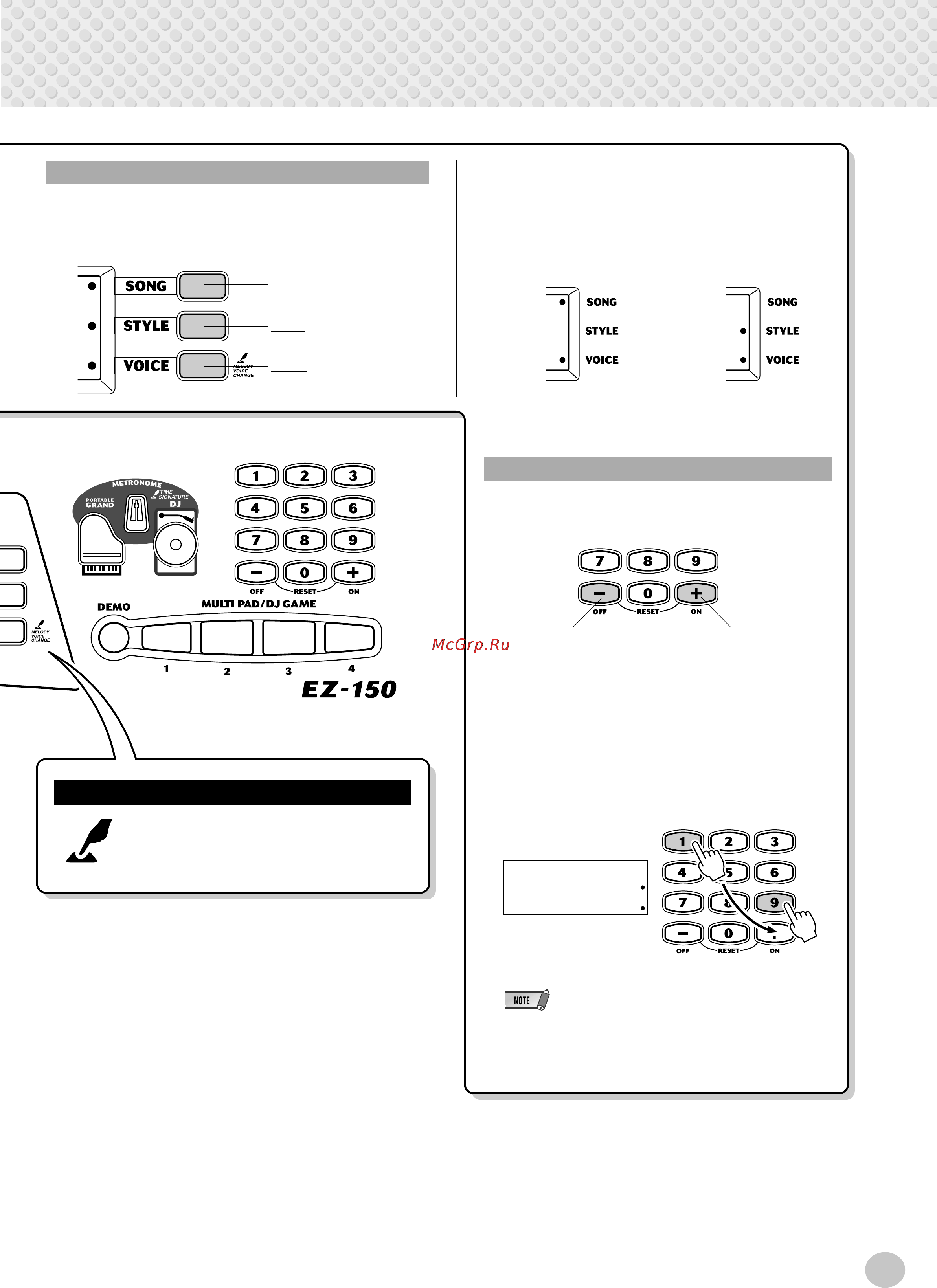

Basic operation and LED Display
21
1
● The following indications appear when you press
the [VOICE] button in the Song or Style mode.
● Use the [+]/[–] buttons when you want to change the
number in single steps.
● To directly enter the desired number, use numeric
buttons [0]-[9].
Entering numbers
For selecting a voice
in the Song mode.
For selecting a voice
in the Style mode.
Decreases the
number by one
step.
Increases the
number by one
step.
To continuously change the number up or down,
press and hold the appropriate [+]/[–] button.
19
• If the first digit is “0,” (ex., 07), pressing the [0] button is
unnecessary.
Ex. Voice number 19: ACCORDION
Press the numeric buttons
[1], [9] in order.
● Pressing one of the buttons below calls up the appropriate
mode — Song, Style or Voice, and the dot in the display
indicates the currently selected mode.
Entering one of the modes (Song, Style or Voice)
Style
Select the desired style.
Song
Select the desired song.
Voice
Select the desired voice.
Buttons having this indication can be used
to call up an alternate function when the rel-
evant button is pressed and held.
[PRESS AND HOLD FOR A WHILE] indication
