4 Using the EDID Designer

EDID Designer is designed using drag-and-drop technology to make EDID file

manipulation very easy and intuitive.

Any active EDID cube is dragged to the desktop panel for viewing or editing and

when saved, it is saved to the source from which it was taken.

Legal drags are symbolized by a green cross + in the dragged cube and when

dropped, the action is completed. Illegal drags are symbolized by a red no-entry

symbol Ø in the cube and when dropped, the action is discarded.

4.1 Connecting to Saved EDID Files

EDID files are taken from and saved to the disk of the PC.

To load EDID files from the disk:

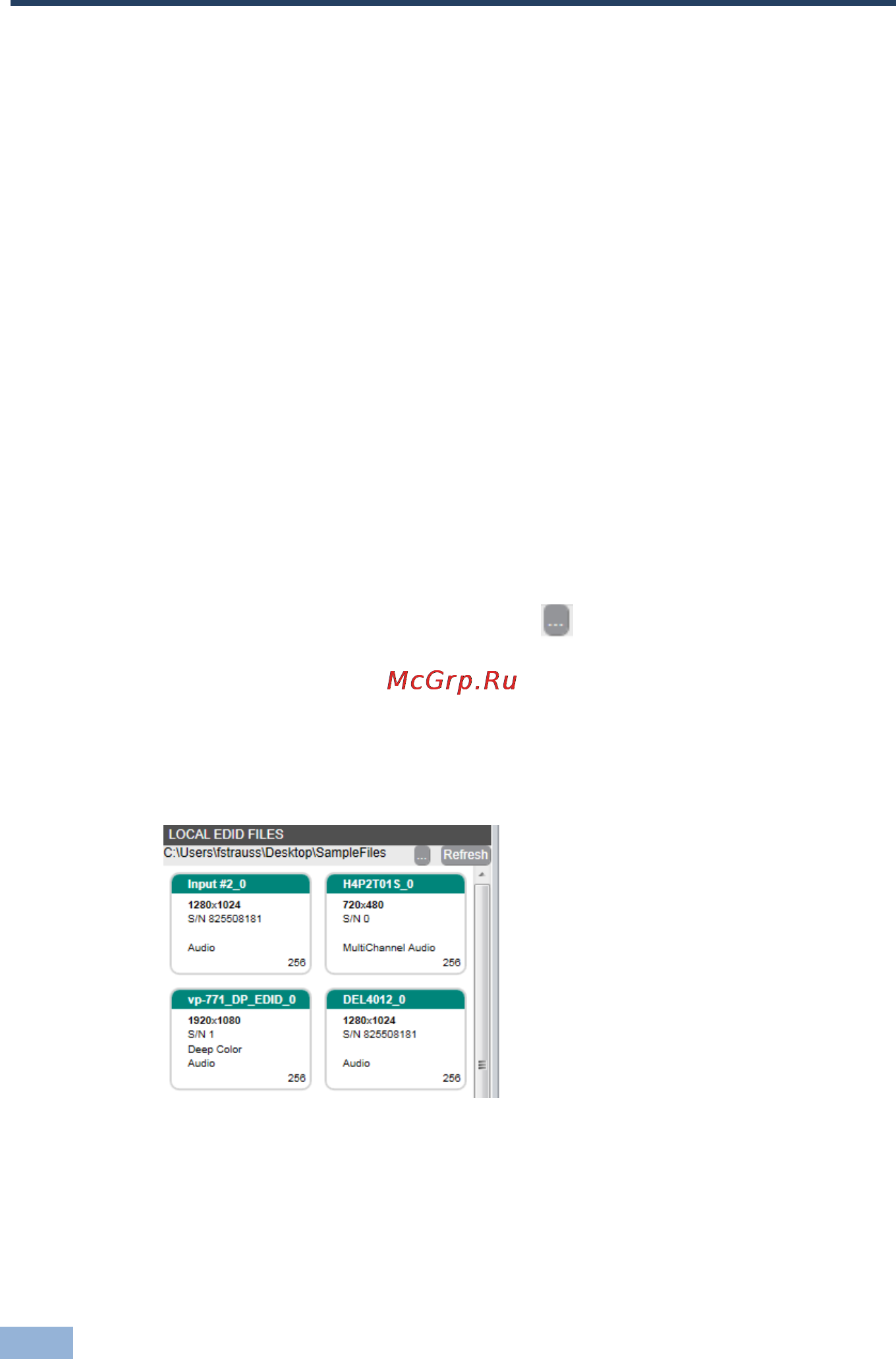

1. On the Local EDID Files panel, click the icon.

2. A Browse for Folder window opens.

3. Navigate to the desired folder and click OK.

The EDID files appear as cubes in the Local EDID Files panel.

Note: When saving an EDID file on your PC, you give it a file name.

However, EDID files saved on display devices or Kramer matrices and other

routing products have no file names. To match and compare EDID files from

different sources we advise using the SN field of the EDID file. When editing

an EDID file, change the SN field and use it as “file identifier” field.
