EDID Designer - Editing an EDID
21

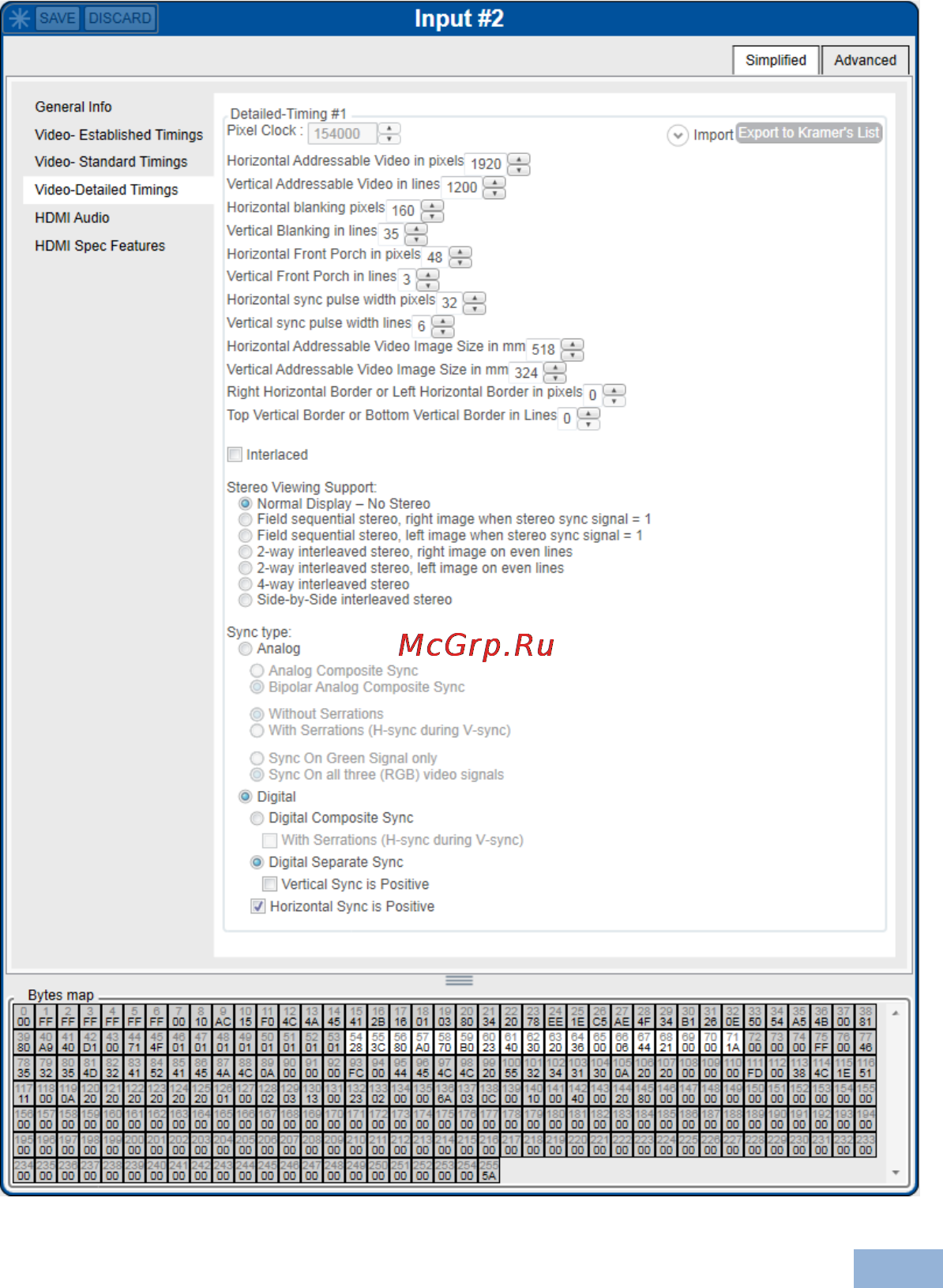

5.2.3 Simplified – Video - Detailed Timings
Video-Detailed-Timing gathers details from all descriptors set to display as
“detailed-timing”. The source outputs the highest possible resolution defined on
this list.
Import/Export – from/to attached Detailed Timings list. “In-use” list items are
marked as checked.
