EDID Designer - Using the EDID Designer

4.2 Connecting to a Device

Connect to a Kramer device (for example, a matrix switcher) to view, edit and copy

its EDIDs. The list of supported Kramer devices updates each time you launch the

software and your PC is connected to the Internet.

Note: When a new version of EDID Designer is available for installation, a new

version notification appears upon launch.

Important: When your Kramer device supports both Protocol 2000 and Protocol

3000 communication protocols, make sure it is set to Protocol 3000 mode.

To connect a device:

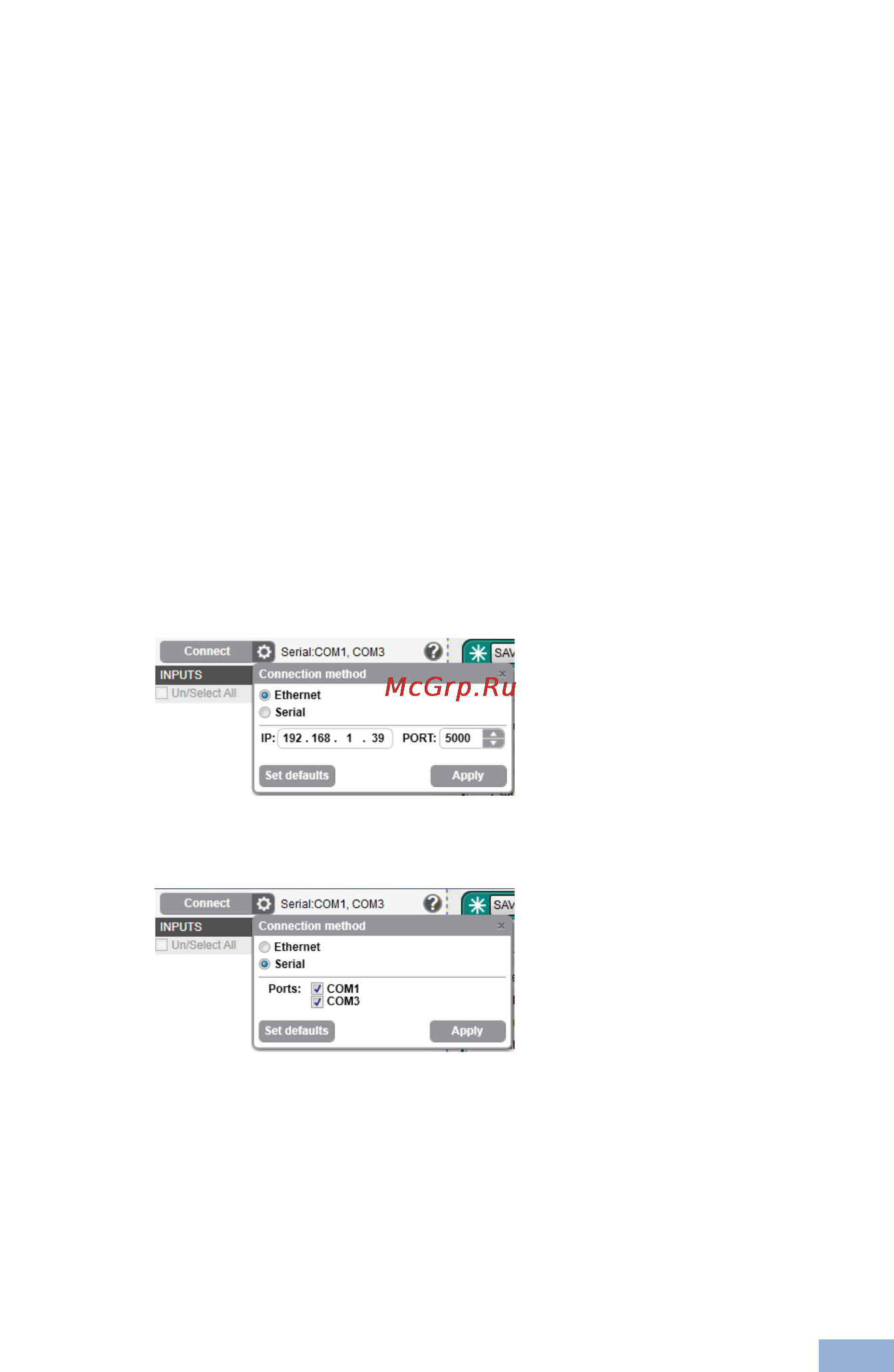

1. Choose the connection method by clicking gear icon on the Connect button.

The parameter window opens.

2. For Ethernet, enter the correct IP address and port number.

3. For Serial, check the desired port(s).

4. Click the Apply button to save the changes.

Note: For serial connections, after pressing the Connect button, EDID

Designer scans all the checked ports and connects to the first one that

responds with an active device. If multiple devices are connected, check only

the port of the desired device.
