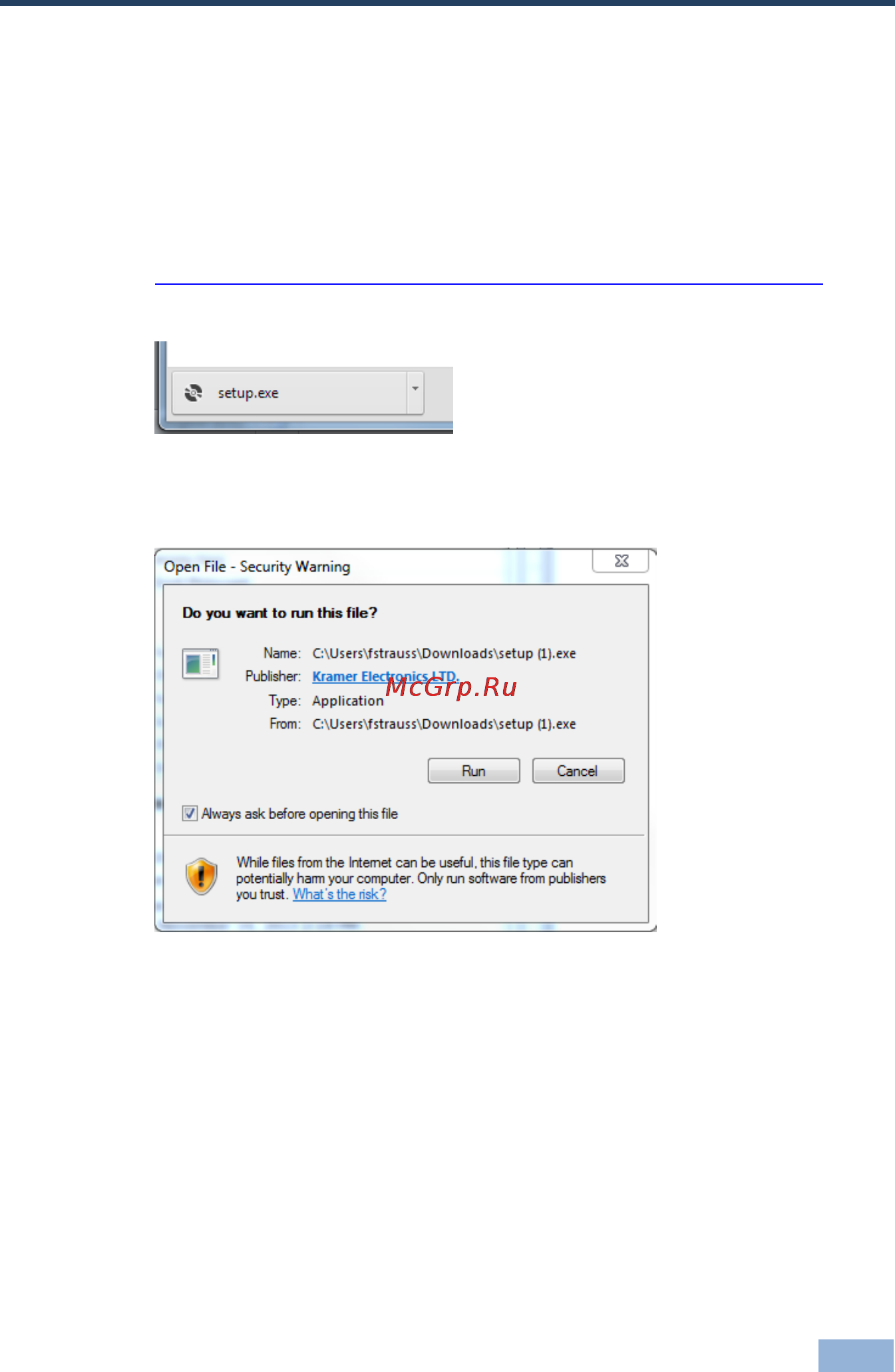

EDID Designer - Installing EDID Designer
3
2 Installing EDID Designer
EDID Designer features one-click installation for a fast and trouble-free setup.
To install EDID Designer:
1. Navigate to the Kramer’s EDID Designer Web site and click the install link:
www.kramerelectronics.com/downloads/setups/ediddesigner/setup.exe
The file downloads to the lower left corner of your browser:
2. Click setup.exe.
A security warning opens:
3. Click Run.
An application installation warning appears:
