4
EDID Designer - Installing EDID Designer

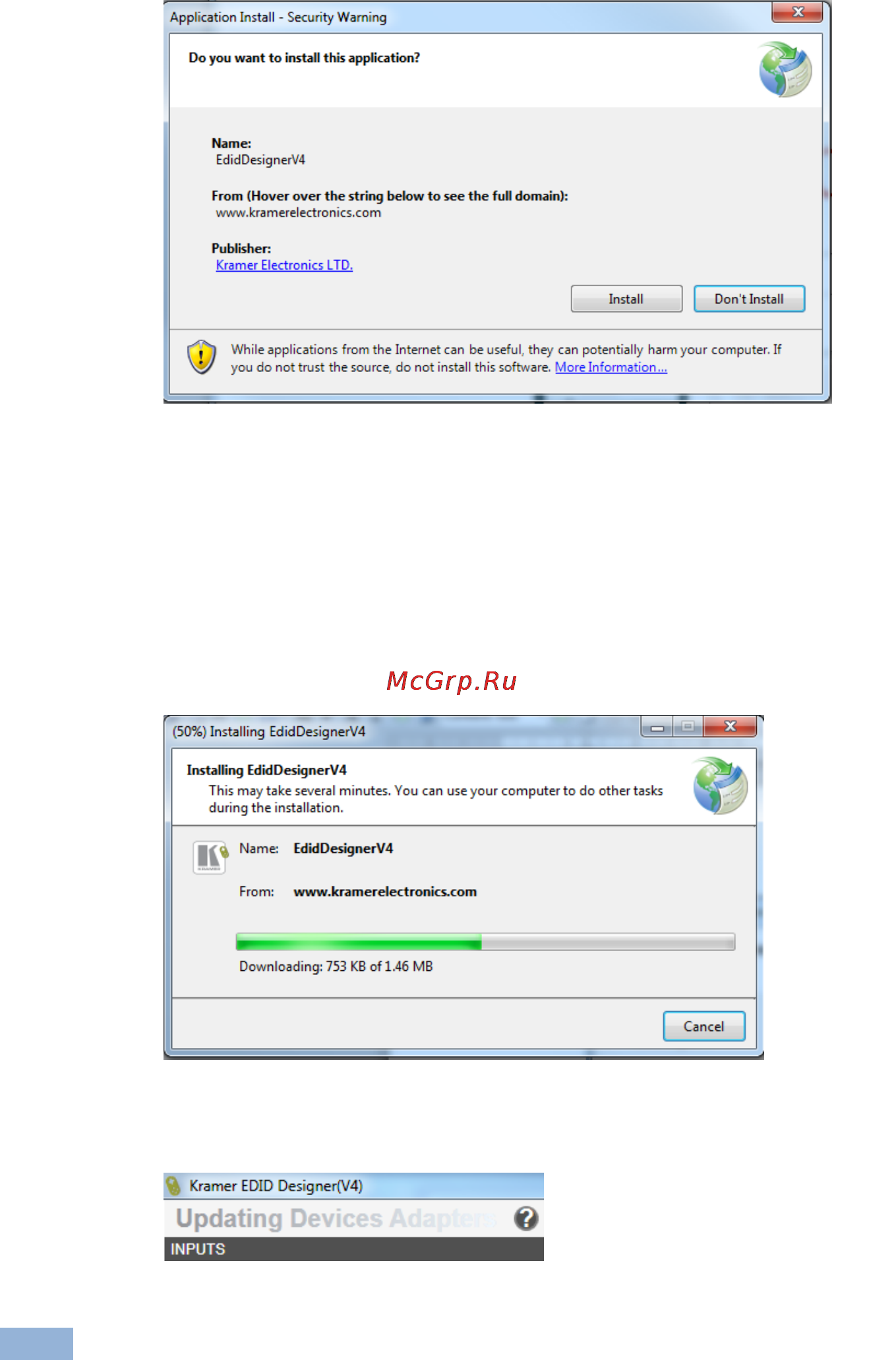

4. Click Install.
Note: At this stage, a message appears if DotNet 4.5 is not installed on your
computer. Follow the instructions to install DotNet 4.5. After installation you
may be required to reset the computer. Perform the reset and do not take
any further action. EDID Designer continues to install automatically.
The installation progress window appears:
5. When complete, the application opens and the following message appears
in the upper-left corner of the app:
