Connecting the SP-12HD HD-SDI Processor

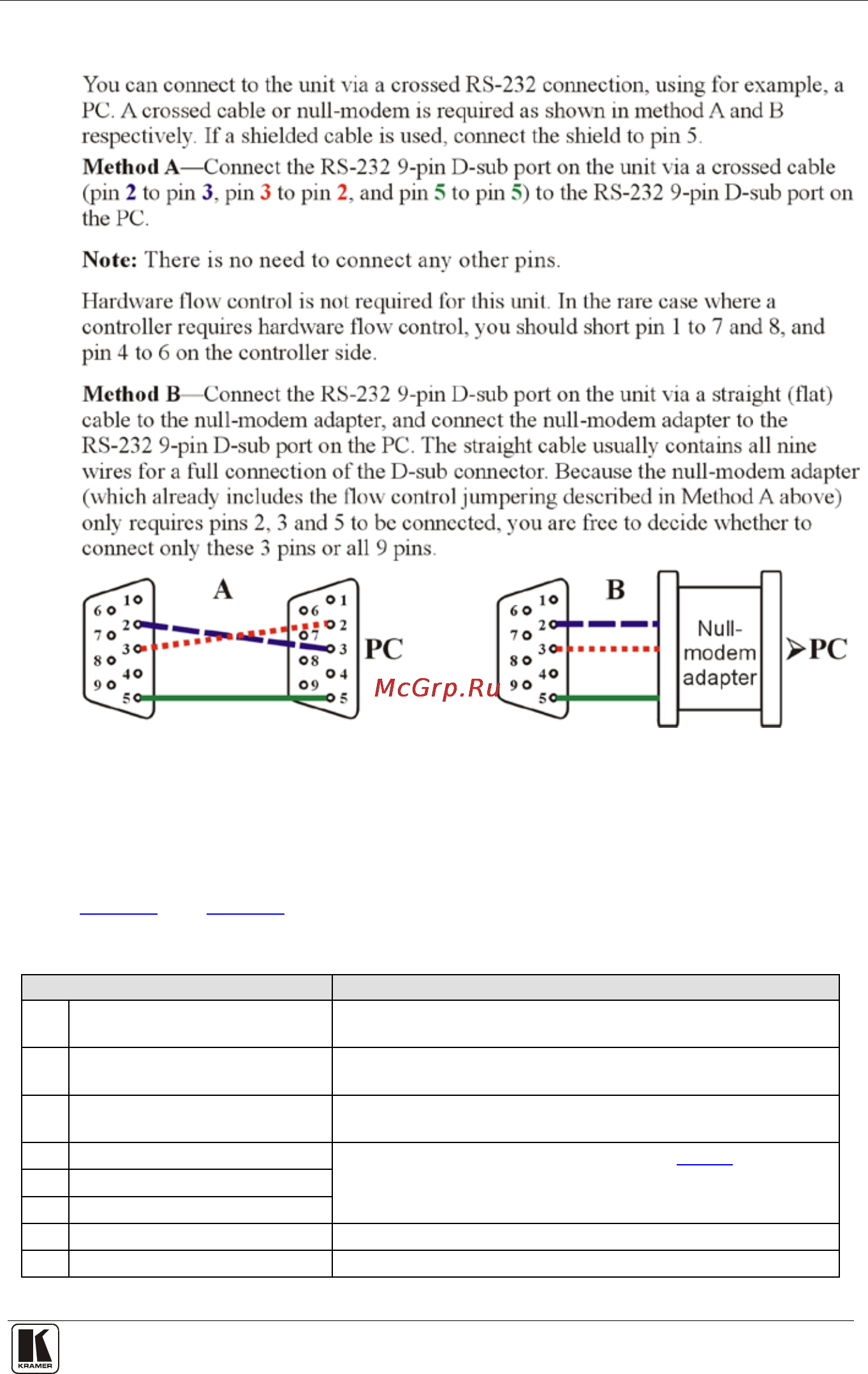

6.1 Connecting the RS-232 Port

Figure 3: Connecting the RS-232 Port

6.2 Setting the DIP-Switches

Configure the SP-12HD unit by setting the 8 DIP-switches, as defined in

Table 2 and Table 3:

Table 2: DIP-Switch Settings

DIP-Switch

Set as follows:

1 PEDESTAL ON for pedestal of output signal (7.5 IRE offset selection for

NTSC); OFF for no pedestal

2 Input sync bi-level or tri-level

(HDTV)

Active only in HDTV mode: ON for bi-level input sync, OFF for

tri-level.

3 Output sync bi-level or tri-level

(HDTV)

Active only in HDTV mode: ON for bi-level output sync, OFF for

tri-level.

4 TEST - 4 These three switches define test signals (see Table 3)

5 TEST - 5

6 TEST - 6

7 AGC ON to enable Auto Gain Control ; OFF to disable

8 ADDR Defines address of machine: OFF – 0x18; ON – 0x19
