Kramer FC-340 [14/27] Connecting to the ethernet port via a network switch hub

FC-340 - Connecting the FC-340

6. Select Use the following IP Address and enter the details as shown in

Figure 5. You can use any IP address in the range 192.168.1.1 to

192.168.1.255 (excluding 192.168.1.39) that is provided by your IT

department.

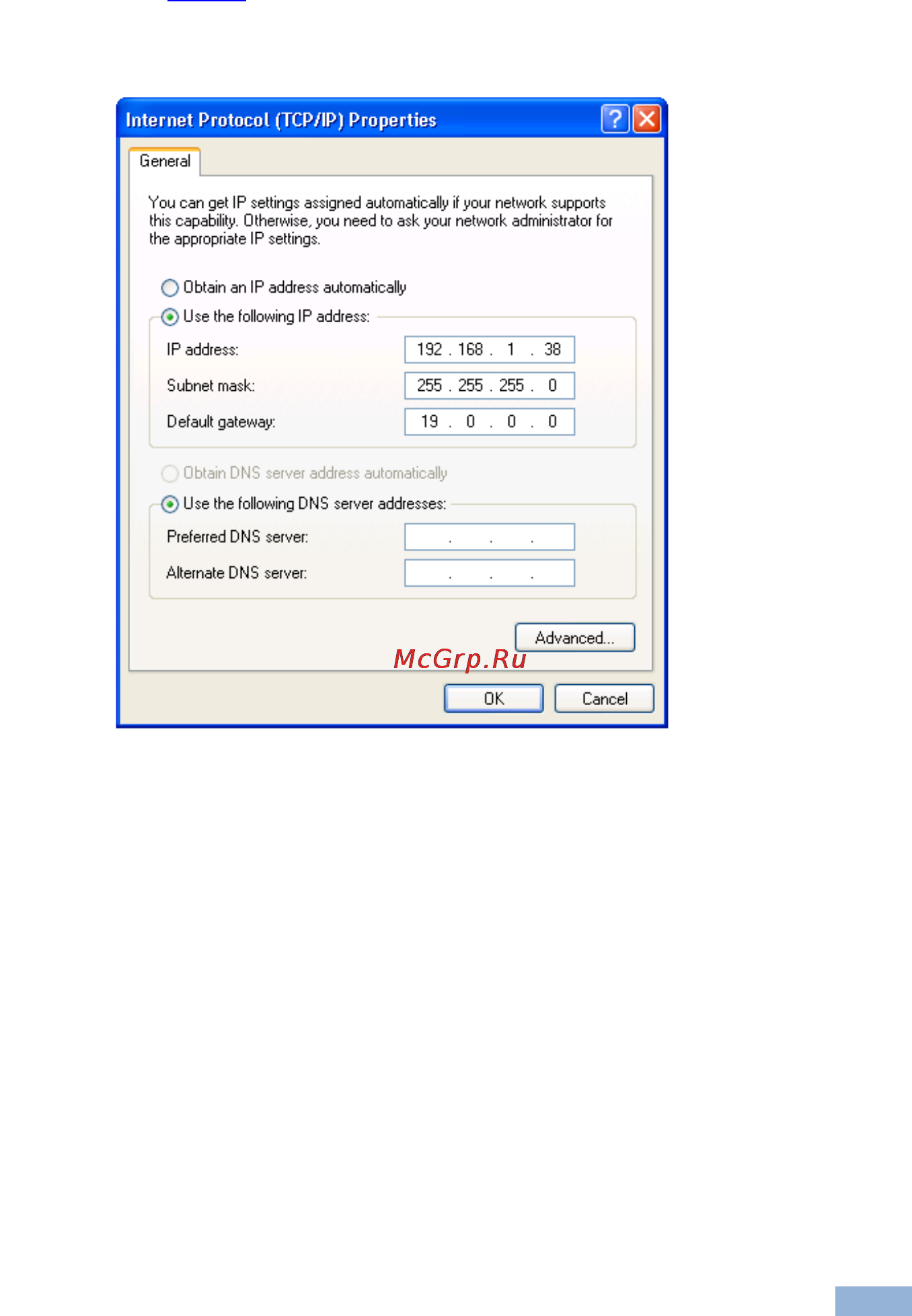

Figure 5: Internet Protocol (TCP/IP) Properties Window

7. Click OK.

6.2.2 Connecting to the Ethernet Port via a Network Switch/Hub

To connect to the Ethernet port on the FC-340 via a network switch/hub:

 Connect the PC to the Ethernet network switch/hub using a straight through

cable
