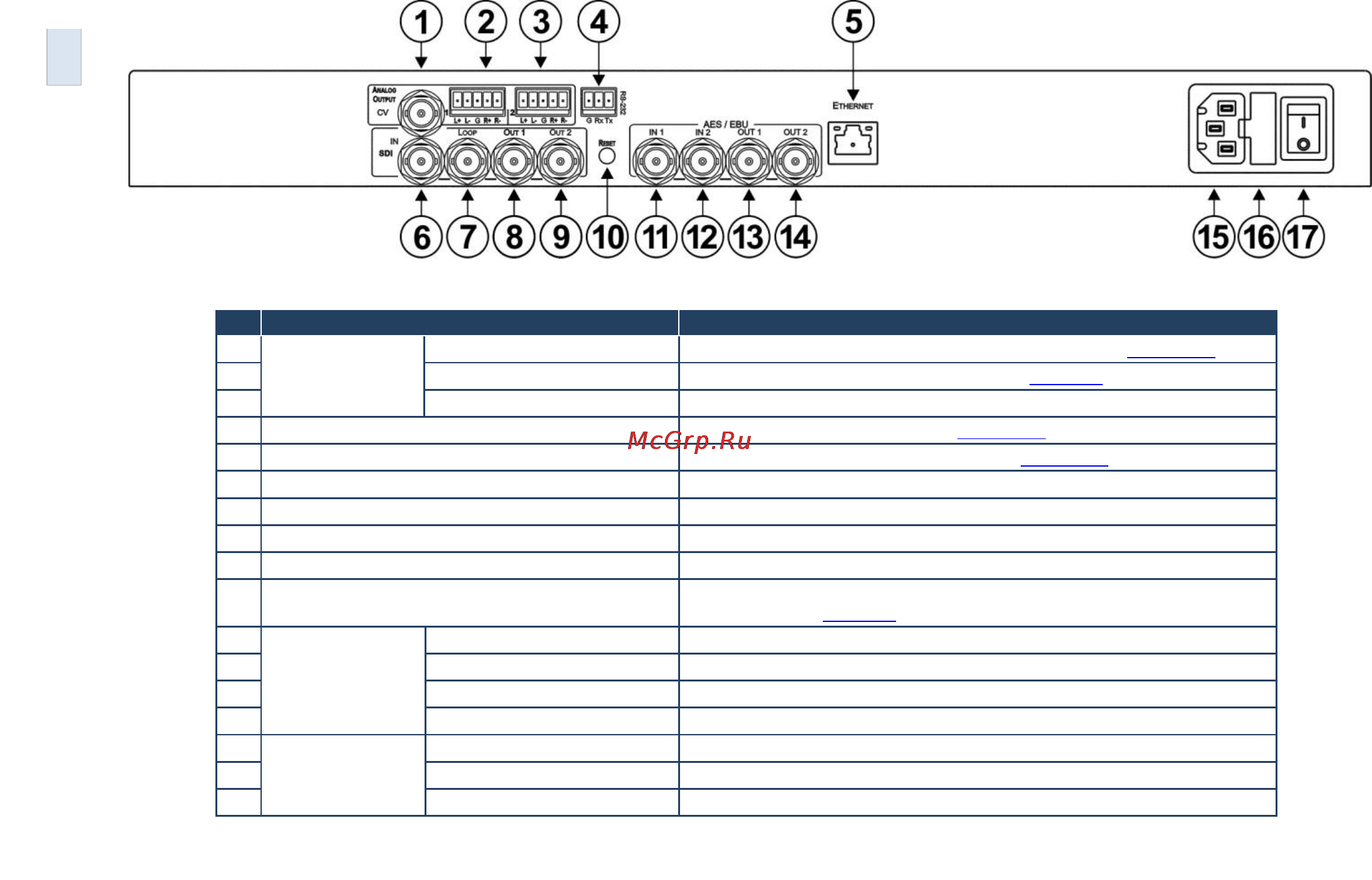

Figure 2: FC-340 SDI Scaler/Embedder/Scan Converter Rear Panel
#
Feature
Function
1
ANALOG OUTPUT
CV BNC Video Connector
Connect to a composite video acceptor (see the Note in Section 7.1)
2
Audio 1 5-pin Terminal Block
Connect to a balanced audio acceptor (see Section 6)
3
Audio 2 5-pin Terminal Block
Connect to a balanced audio acceptor
4
RS-232 3-pin Serial Port Terminal Block
Connect to a serial controller (see Section 6.1)
5
ETHERNET RJ-45 Connector
Connect to a PC controller via a LAN (see Section 6.2)
6
IN SDI BNC Connector
Connect to an SDI signal source
7
LOOP BNC Connector
Connect to an SDI acceptor
8
OUT 1 BNC Connector
Connect to an SDI acceptor
9
OUT 2 BNC Connector
Connect to an SDI acceptor
10
RESET Button
Press and hold while switching on the device to reset to factory default
parameters (see Section 9)
11
AES/3id
(AES/EBU in
some machines)
IN 1 BNC Connector
Connect to an AES/3id audio source
12
IN 2 BNC Connector
Connect to an AES/3id audio source
13
OUT 1 BNC Connector
Connect to an AES/3id audio acceptor
14
OUT 2 BNC Connector
Connect to an AES/3id audio acceptor
15
AC Mains
Power Socket
Connect the mains power cord
16
Fuse
AC mains supply protection fuse
17
Power Switch
Turns the device on and off
6
FC-340 – Defining theFC-340
