KRAMER: SIMPLE CREATIVE TECHNOLOGY
Your Component/XGA – Audio Transmitter and Receiver
8
Table 3: TP-45RC Component/XGA – Audio Transmitter Features
# Feature Function
1 XGA IN 15-pin HD (F) Connector Connect to the XGA source
2 LINE OUT RJ-45 Connector Connect to the LINE IN connector on the TP-46
1
3 CONTROL AUDIO/VIDEO Terminal Block Connect to remote push-button switches and status LEDs
4
12V DC
+12V DC connector for powering the unit
5 ANALOG AUDIO 3.5mm Mini Connector Connect to the stereo analog audio source
6 S/PDIF RCA Connector Connect to the digital audio source
7
AUDIO SELECT
Input Selector Button
ANALOG AUDIO
Press to toggle between analog audio and digital S/PDIF
audio
S/PDIF
8
ON LEDs
UXGA
Lights when computer graphics video is selected
ANALOG AUDIO
Lights when analog audio is selected
9
INPUTS
Y RCA Connector Connect to the component video source
10 CB/PB RCA Connector
11 CR/PR RCA Connector
12
VIDEO SELECT
Input Button
COMP Press to toggle between component video and computer
graphics video
XGA
13
ON LED
Lights when receiving power
4.3 Your TP-46 Component/XGA – Audio Receiver
Figure 4
and Table 4 define the TP-46:

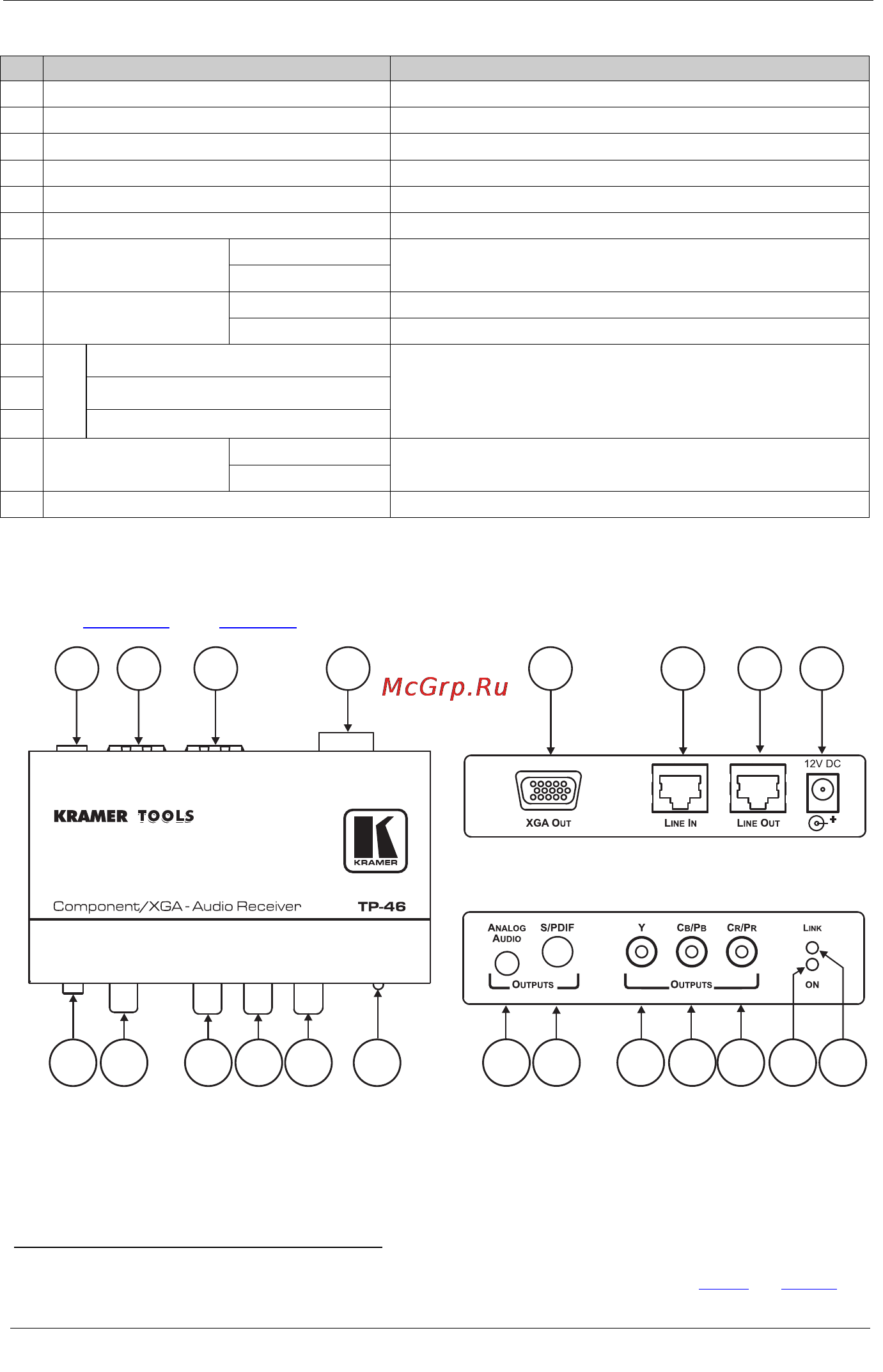

Figure 4: TP-46 Component/XGA – Audio Receiver
1 Using a straight pin to pin UTP cable with RJ-45 connectors at both ends (the PINOUT is defined in Table 6 and Figure 9)
10
7
7
11
11
8
8
9
9
123
4
1 2 3
4
5
5
6
6
