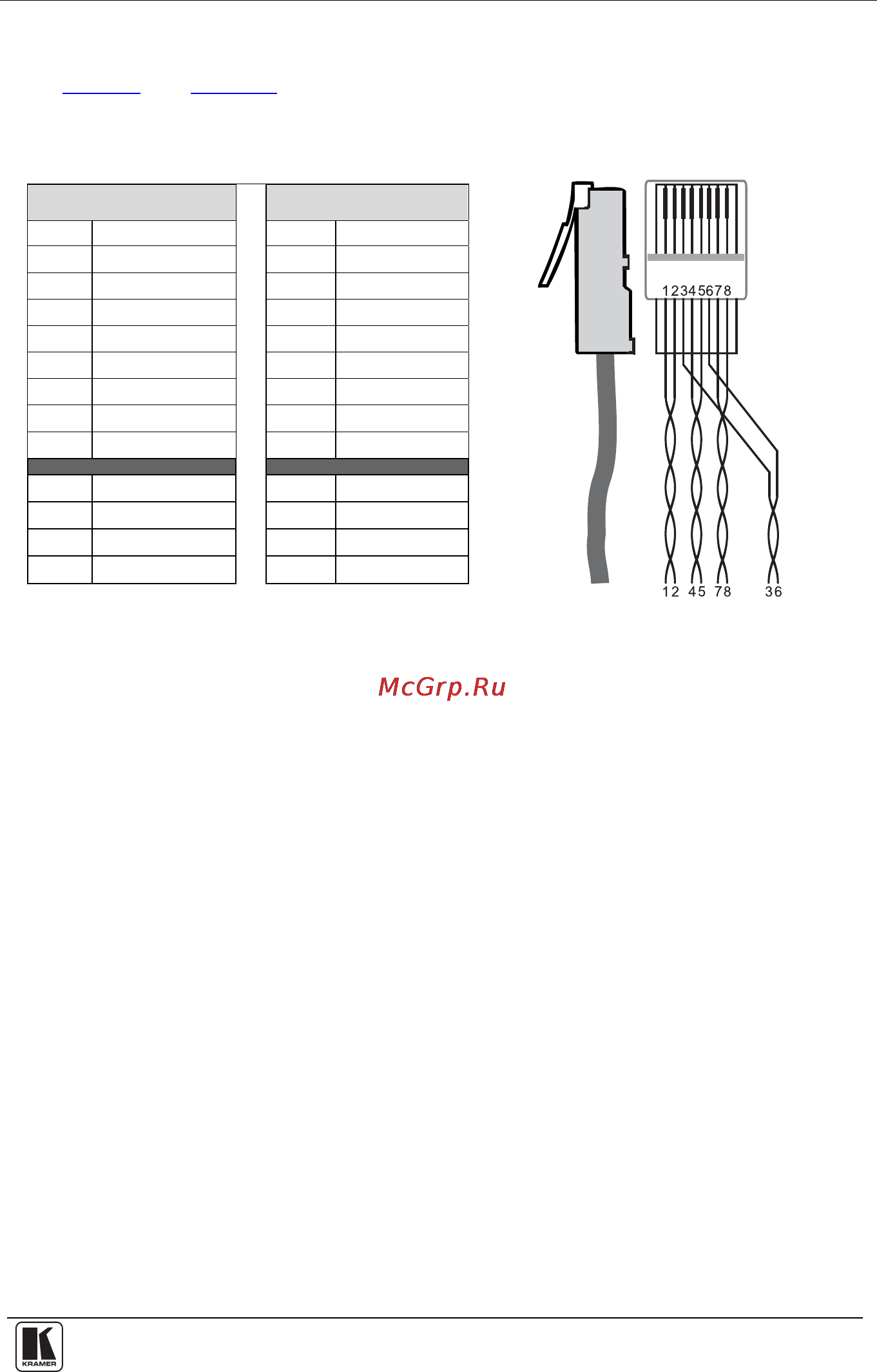

Kramer TP-45RC [19/22] Table 6 and figure 9 define the twisted pair pinout using a straight pin to pin cable with rj 45 connectors

Connecting a Component/XGA – Audio Distribution System

5.4 Wiring the Twisted Pair LINE IN / LINE OUT RJ-45 Connectors

Table 6

and Figure 9 define the twisted pair pinout, using a straight pin-to-pin

cable with RJ-45 connectors:

Table 6: Twisted Pair PINOUT

Figure 9: Twisted Pair PINOUT

EIA /TIA 568A EIA /TIA 568B

PIN Wire Color PIN Wire Color

1 Green / White 1 Orange / White

2 Green 2 Orange

3 Orange / White 3 Green / White

4 Blue 4 Blue

5 Blue / White 5 Blue / White

6 Orange 6 Green

7 Brown / White 7 Brown / White

8 Brown 8 Brown

Pair 1 4 and 5 Pair 1 4 and 5

Pair 2 3 and 6 Pair 2 1 and 2

Pair 3 1 and 2 Pair 3 3 and 6

Pair 4 7 and 8 Pair 4 7 and 8
