Connecting a Component/XGA – Audio Distribution System

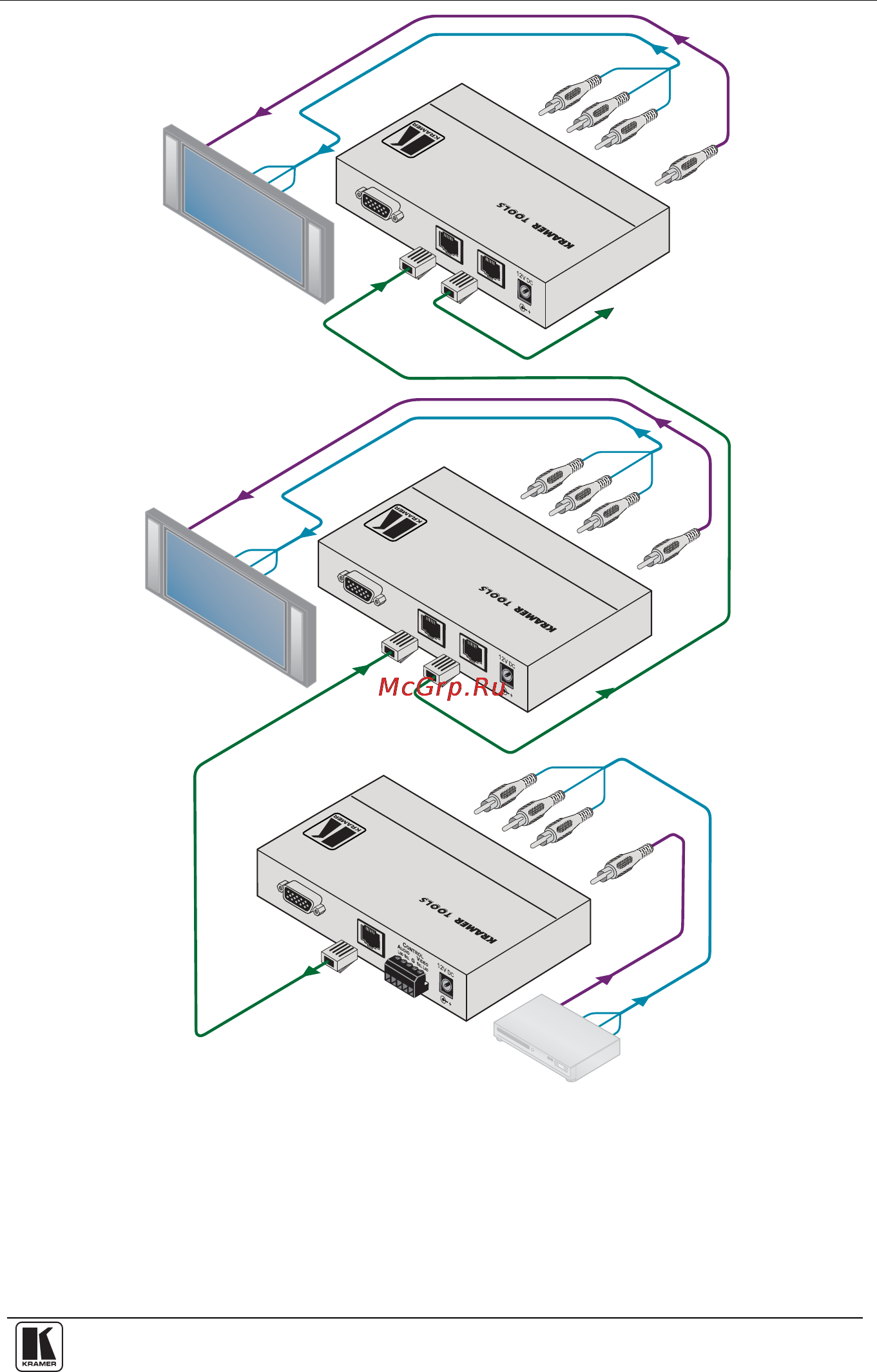

Figure 7: Component/XGA – Audio Distribution System, Component Video Mode

Long CAT 5 cable

TP-46

Component/XGA - Audio Receiver

INE UT

INE N

XGA I

INE UT

XGA O

To the

TP-46 unit

CAT 5

TP-45RC

TP-46

Plasma

Display

Plasma

Display

YUV

Audio

DVD

Player

YUV

Audio
