4 Defining the RTBUS-21

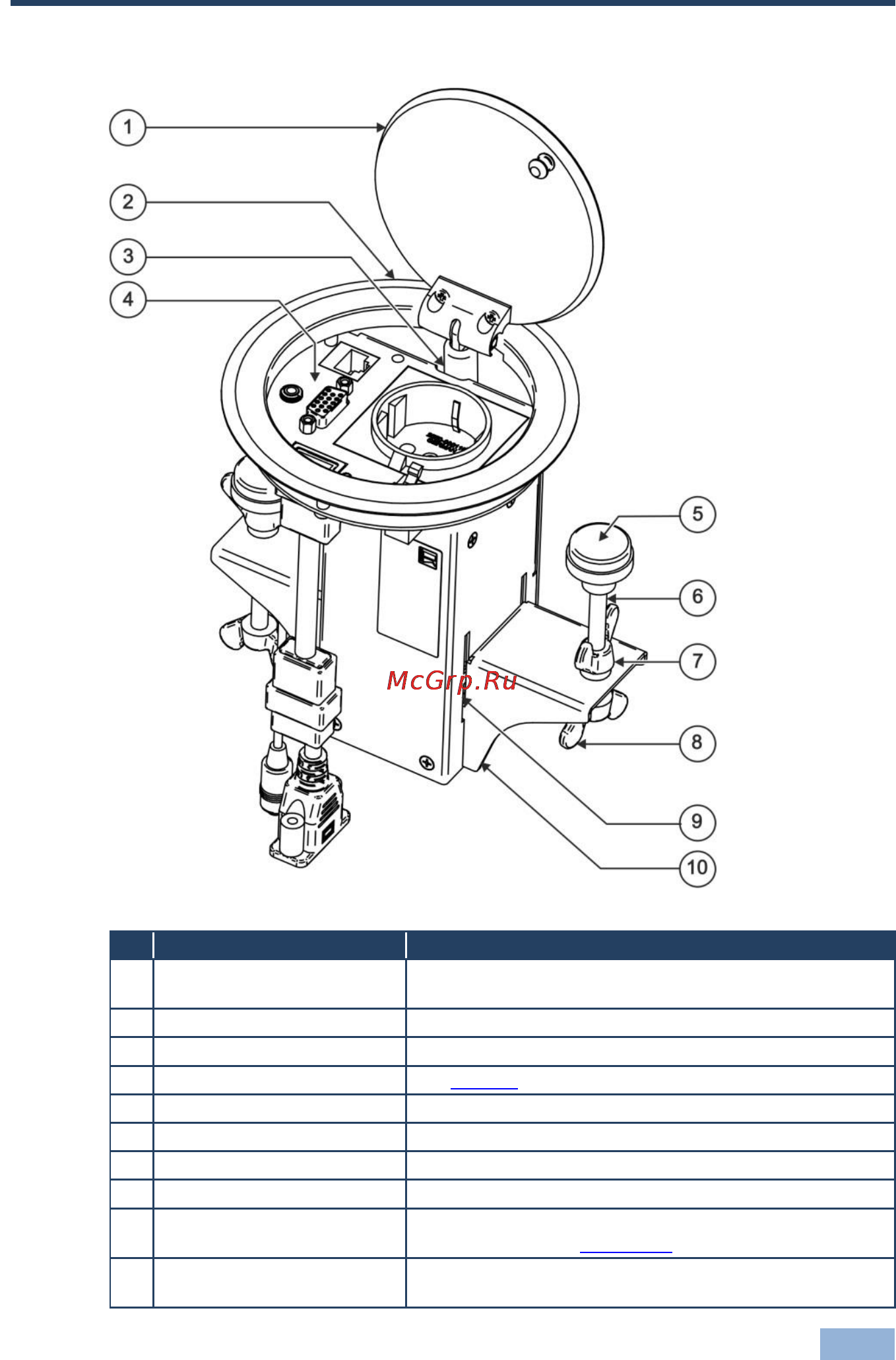

Figure 1: RTBUS-21 Top View

Feature

Function

Black anodized or brushed

aluminum semi-automatic lid

Covers the connecting surface, leaving the table surface

neat and tidy

Outer Rim

Fits over the table surface

Pneumatic Mechanism

Enables automatic lifting and smooth closing of the lid

Connecting Surface

See Figure 2

Rubber Protectors

Protect the table surface when mounting the unit (2)

Mounting Screws

For securing the RTBUS-21 to the table(2)

Locking Butterfly Nuts

Tighten to lock the mounting butterfly screw (2)

Mounting Butterfly Nuts

Tighten to secure the unit to the table surface (2)

Mounting Bracket Slits (two

sets on each side)

Insert the mounting brackets to the slits when installing

the RTBUS-21 (see Section 5.2).

Mounting Brackets (2 units)

Place in the bracket slits after inserting the enclosure into

the table – for securing the unit to the table surface
