Kramer RTBUS-21 [9/16] Figure 2 defines the connecting surface

RTBUS-21 - Defining the RTBUS-21

4.1 The RTBUS-21 Connecting Surface

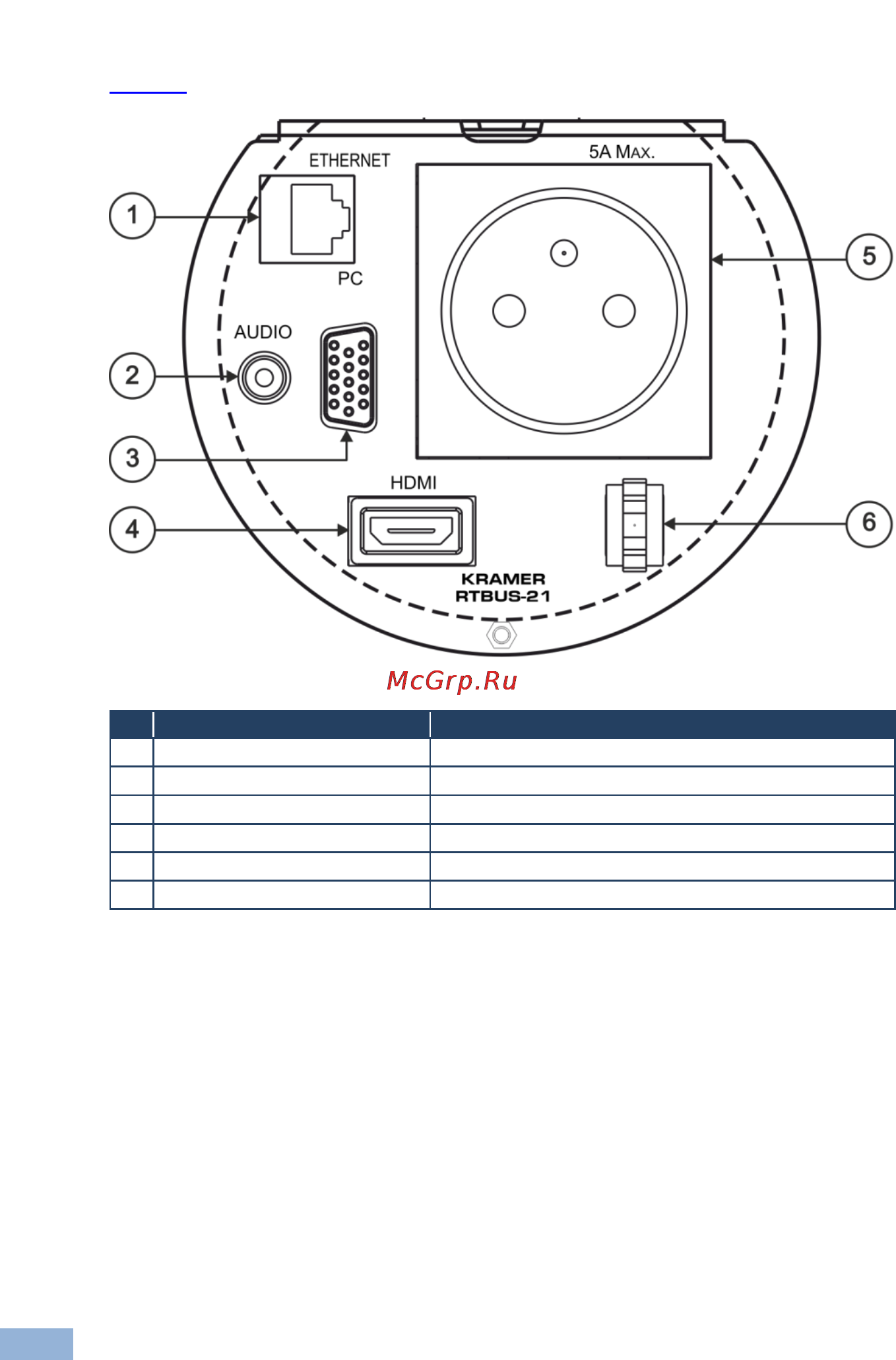

Figure 2 defines the connecting surface:

Figure 2: RTBUS-21 Connecting Surface

ETHERNET RJ-45 Connector

Connect to a network

AUDIO 3.5mm Mini Jack

Connects to an unbalanced stereo audio source

PC 15-pin HD Connector

Connects to a VGA source

HDMI Connector

Connect to HDMI source

5A MAX. Power Socket

Connects to 90-240V AC power consuming device

For safely closing the lid
