Kramer Aspen RCP-1616 [24/52] Button brightness

SIERRA VIDEO

Button Brightness

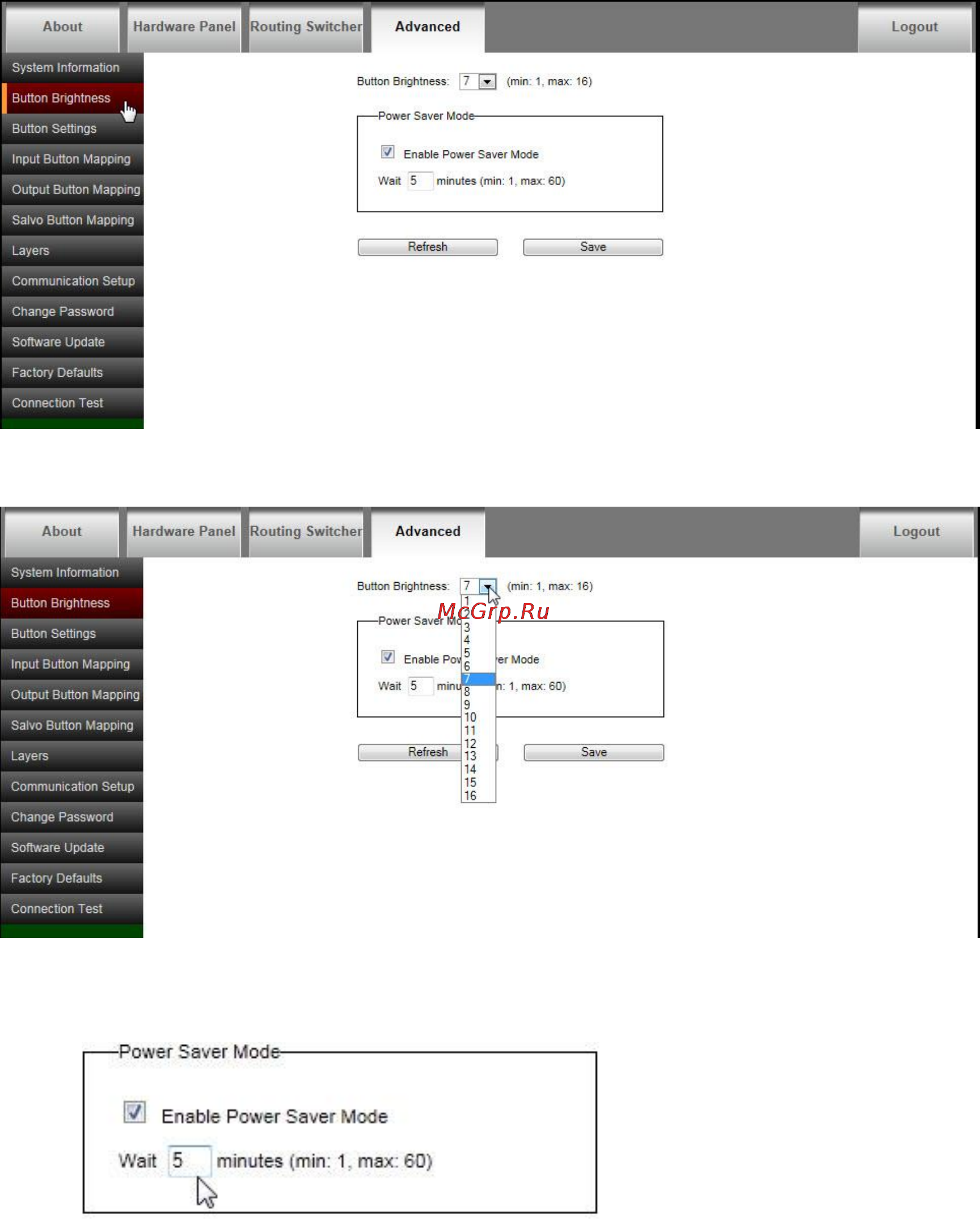

The “Button Brightness” tab sets the brightness of the control panel buttons.

Button Brightness- The button brightness can be set to 16 different levels.

Power Saver Mode- When the Power Saver mode is enabled, the buttons will dim to 25%

of the set brightness at the specified “wait” time.
