Layers

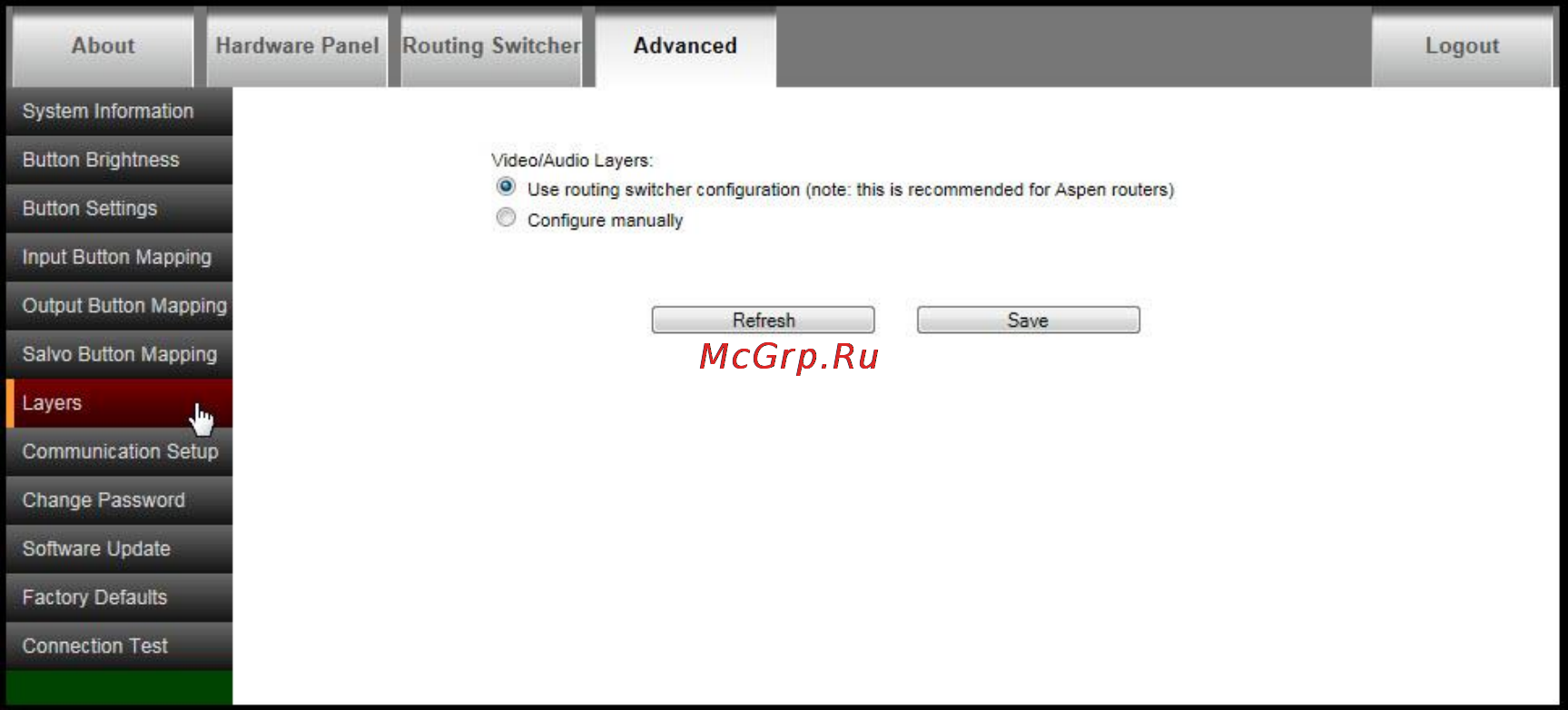

The panel can be configured to control specific layers in this screen.

The setting “Use routing switcher configuration” is the default and is highly recomended

for use with the Aspen routing switchers.

WARNING: Contact Sierra Customer service before changing this setting.
