Kramer Yarden8-T [10/22] Figure 3 defines the yarden 8 t side view

Yarden 8-T - Overview

Ceiling Tile Speaker Features

Feature

Function

Speaker Tile Base

Tile size

Speaker Steel Enclosure

Shallow fireproof enclosure

Anchor Ring

Secure the speaker to the ceiling anchoring point

Wire Secure Ring

Insert the wire through the plastic ring to secure

the wires to the speaker

Tap Selector and Operation Switches

Control the speaker operation mode

INPUT Terminal Block Connector

Connect to the audio source (see Section 4.2)

Tweeters (4)

Pivoting silk

Woofer

Kevlar(R) surrounded by rubber

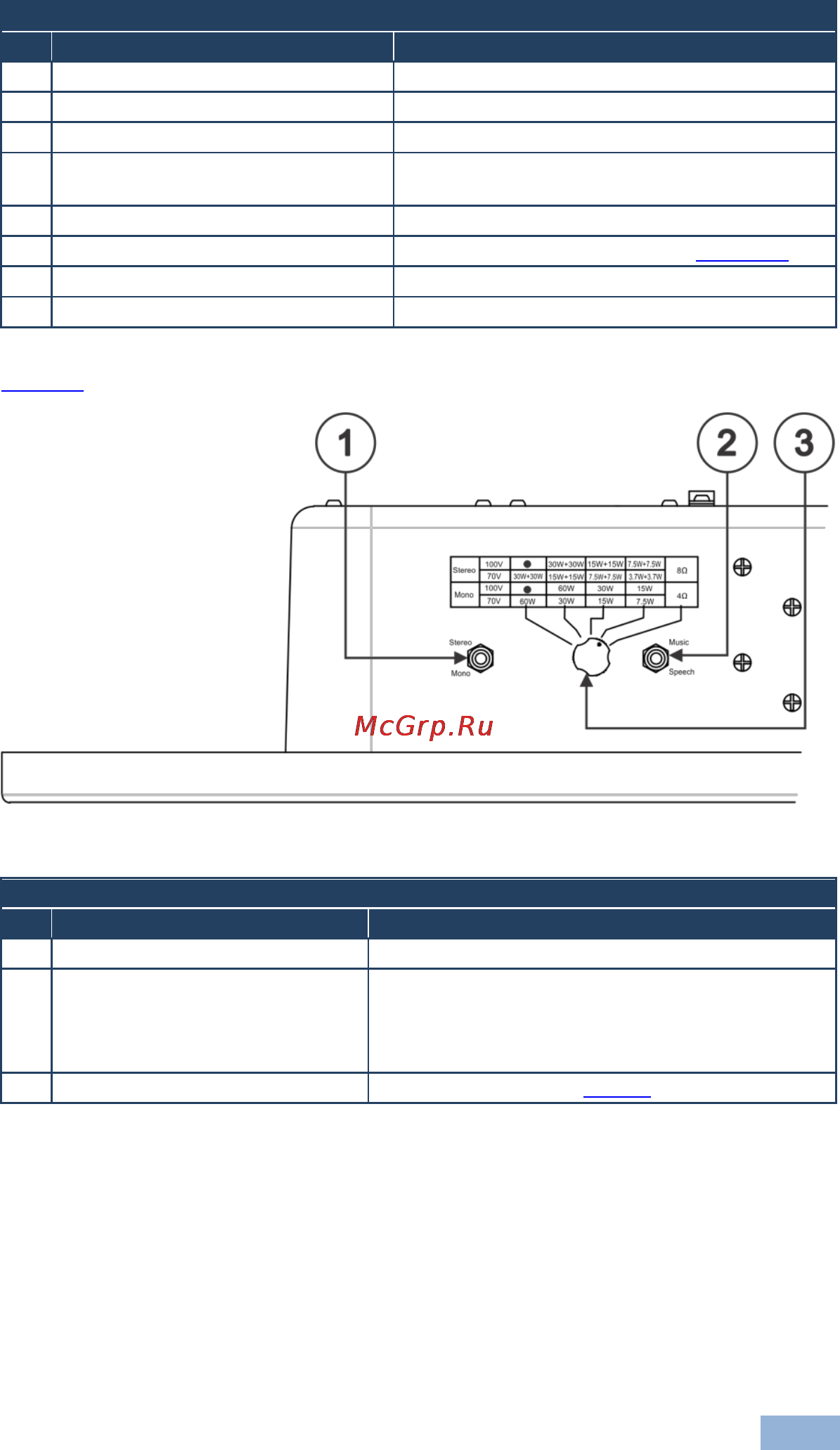

Figure 3 defines the Yarden 8-T side view:

Figure 3: Yarden 8-T Side View

Ceiling Tile Speaker Features

Feature

Function

Stereo/Mono Selector Switch

Select stereo or mono operation

Music/Speech Selector Switch

Select the speaker operation mode:

Set to Music for boardrooms, offices, hotels and

restaurants (for background music)

Set to Speech for lecture halls and classrooms

Tap Selector Button

Use for tap setting, see Figure 8
