4 Installing the Yarden 8-T

This section explains how to install the Yarden 8-T, that is:

 Choosing the best place to locate your speaker (see Section 4.1)

 Connecting the wires (see Section 4.2)

 Determining the number of speakers (see Section 4.3)

 Preparing the speaker for operation (see Section 4.4)

 Installing the tile size speaker (see Section 4.5)

4.1 Choosing the Best Location

Ideally, locate the speaker above the main listening area. Before doing so, be sure

that:

 The desired location is free of obstructions, such as electrical piping,

AC ducts or water lines, and so on

 There is enough space behind the mounting surface for the speaker

 The rear side of the speaker is not blocked by wall studs or other objects

4.2 Connecting the wires

Figure 4 illustrates the terminal block pinout for the mono and stereo setups:

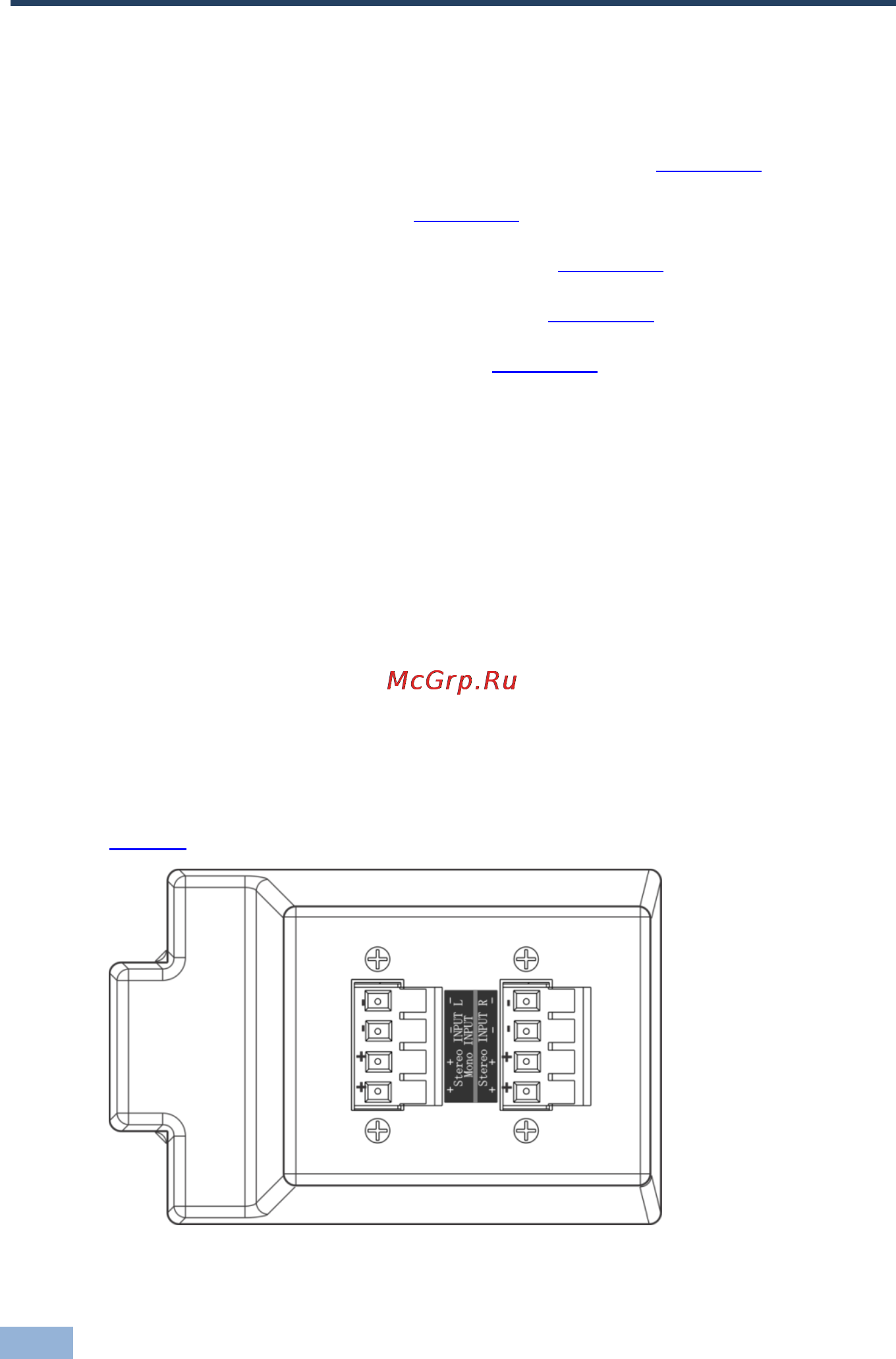

Figure 4: Yarden 8-T Terminal Blocks
