Yarden 8-T - Installing the Yarden 8-T

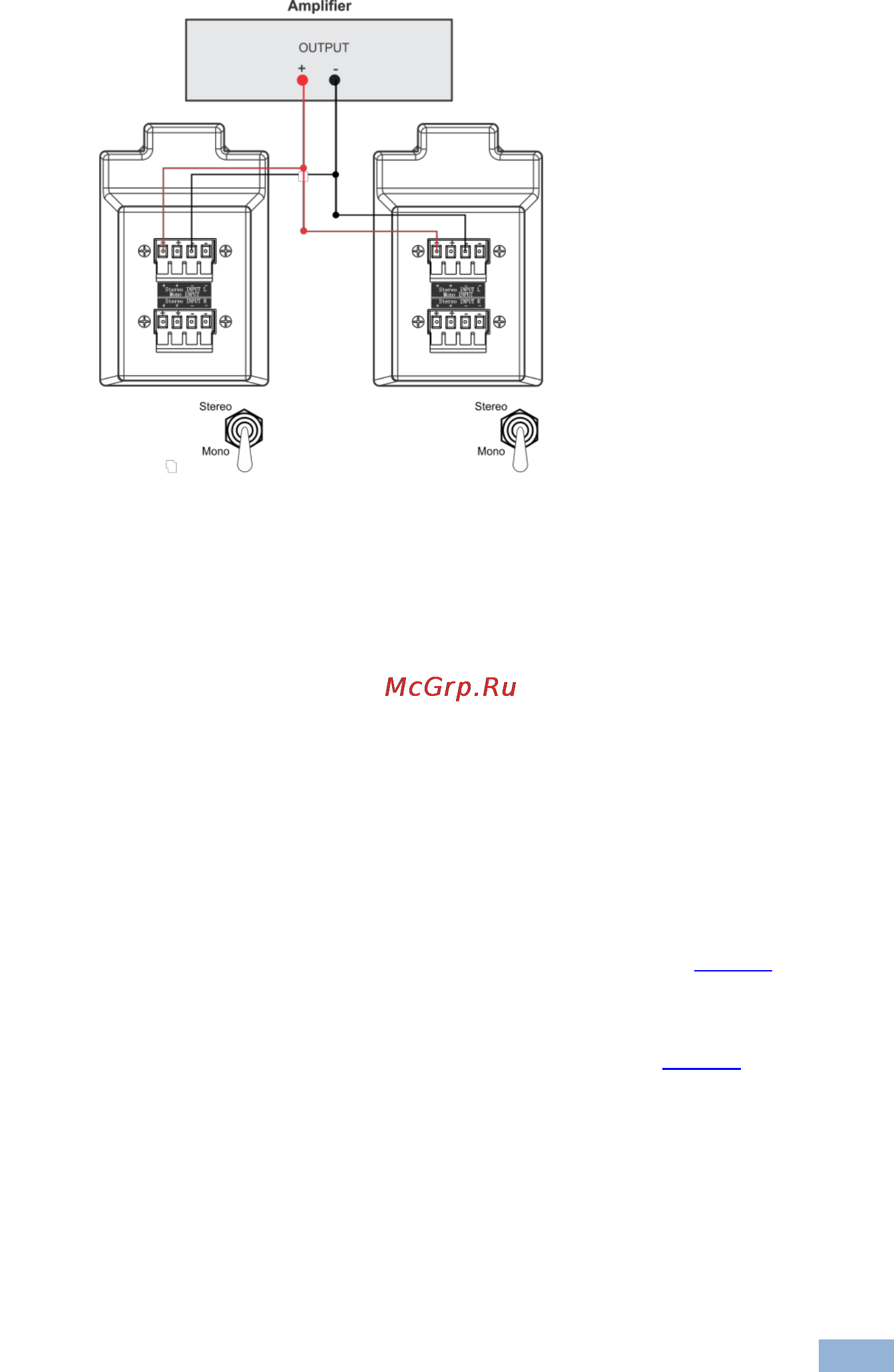

Figure 7: Mono Layout

4.4 Preparing the Yarden 8-T for Operation

Once the location of the speaker is determined, prepare the speaker for operation

as follows:

1. Move each of the pivoting tweeters outward in an angle that is suited to the

room shape and size.

2. Run the wires from the amplifier through the ceiling.

3. Remove the ceiling tile at the place where you plan to install the speaker.

4. Connect the speaker wires to the speaker terminals (see Figure 4) from the

adjacent ceiling tile opening.

5. Adjust the speaker to the appropriate tap setting (see Figure 8).

Set the tap according to the power requirements of the speaker based on its location in the

room (for example, a speaker located in a remote corner may require additional power)
