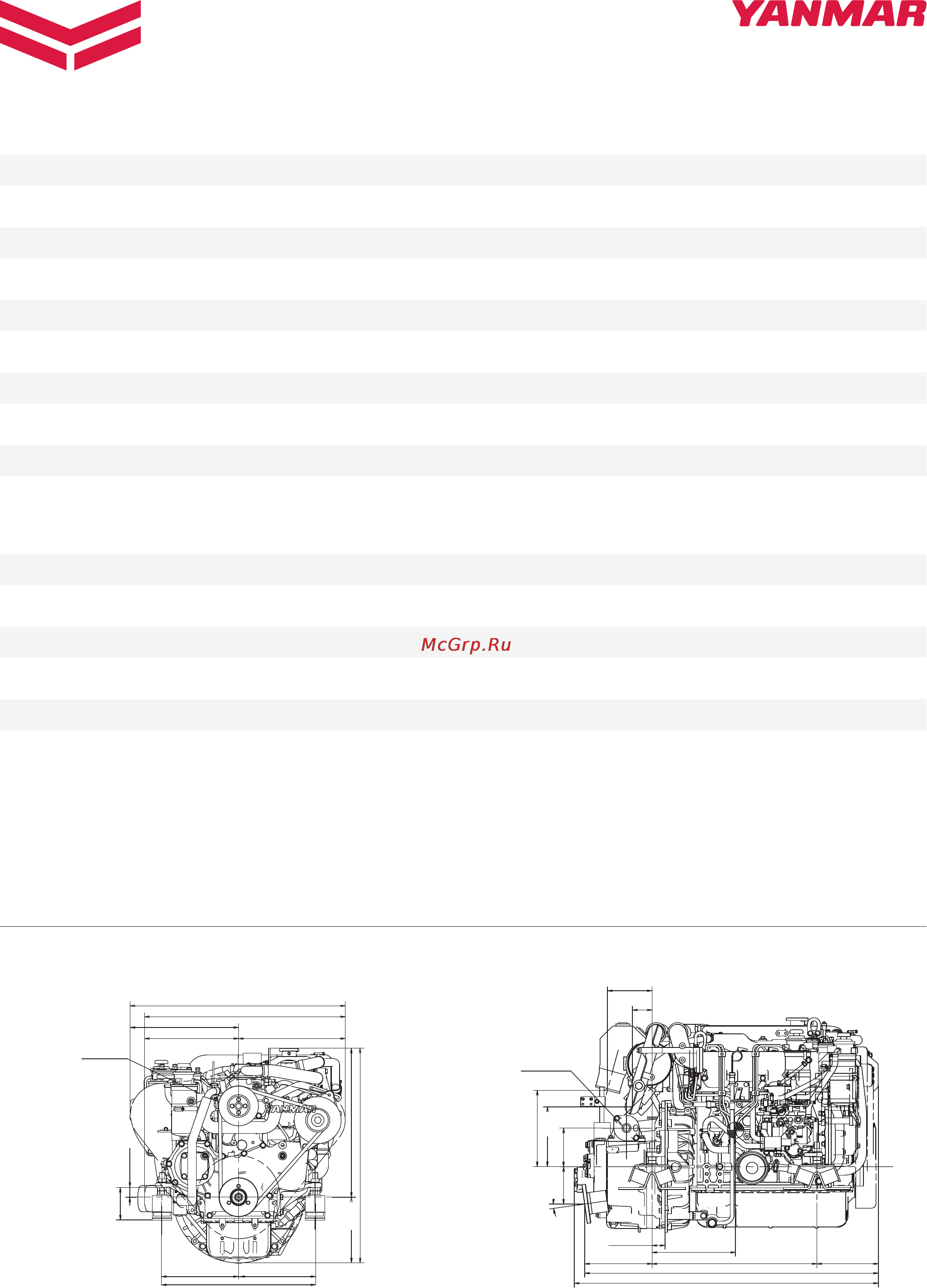

EN_DS4JH4-HTE_1214

www.yanmar.eu

Conﬁguration 4-stroke, vertical, water-cooled diesel engine

Maximum output at crankshaft * 80.9 kW@3200 rpm [110 mhp@3200 rpm]

Displacement 1.995 ltr [121.7 cu in]

Bore x stroke 84 mm x 90 mm [3.31 in x 3.54 in]

Cylinders 4, 4-valves per cylinder

Combustion system Direct injection

Aspiration Turbocharged with intercooler

Starting system Electric starting 12V - 1.4 kW

Alternator 12V - 125A

Cooling system Fresh water cooling by centrifugal water pump

and rubber impeller sea water pump

Lubrication system Enclosed, forced lubricating system

Direction of rotation [crankshaft] Counterclockwise viewed from ﬂywheel side

Dry weight without gear 217 kg [478 lbs]

Environmental EU: RCD BSO II EMC

Engine mounting Rubber type ﬂexible mounts

NOTE:

Fuel condition: Density at 15°C = 0.84 g/cm

; 1 kW = 1.3596 mhp = 1.3410 HP

* Fuel temperature 40°C at the inlet of the fuel injection pump [ISO 8665]

Technical data is according to ISO 8665: 2006/3046-1

DIMENSIONS

MARINE DIESEL ENGINES

4JH4-HTE with KMH4A marine gear

www.yanmarmarine.com

4JH4-HTE

Series

Configuration 4-stroke, vertical, water cooled diesel engine

Maximum output at crankshaft * 80.9 kW ( 110 mhp) / 3200 rpm

Continuous rating output at crankshaft 73.6 kW (99 mhp) / 3100 rpm

Displacement 1.995 L ( 121.7 cu in)

Bore x stroke 84 mm x 90 mm ( 3.31 in x 3.54 in)

Cylinders 4 cylinders, 4-valves per cylinder

Combustion system Direct injection

Aspiration Turbocharged

Starting system Electric starting 12 V - 1.4 kW

Alternator 12 V - 80 A

Cooling system Fresh water cooling by centrifugal water pump and rubber impeller sea water pump

Lubrication system Enclosed, forced lubricating system

Direction of rotation (crankshaft) Counter clockwise viewed from flywheel side

Dry weight without gear 217 kg (478 lbs)

Environmental EU RCD, US EPA Tier2, BSO II & EMC

Engine mounting Rubber type flexible mounts

NOTE: Fuel condition: Density at 15°C = 0.84 g/cm

; 1kW = 1.3596 mhp = 1.3410 HP

* Fuel temperature 40°C at the inlet of the fuel injection pump (ISO 8665)

Technical data is according to ISO 8665 / 3046

Dimensions (For detailed line-drawings, please refer to our web-site: www.yanmarmarine.com or contact your supplier)

470 mm (18.5 in)

235 mm (9.3 in) 235 mm (9.3 in)

30 mm (1.2 in)

MAX.110 mm (4.3 in)

MIN.

100 mm (3.9 in)

201.5 mm (7.9 in) 457.6 mm (18 in)

659.1 mm (25.9 in)

288.6 mm (11.3 in) (BELT COVER)327.5 mm (12.9 in)

(OPTIONAL ALTERNATOR)333.1 mm (13.1 in)

616.1 mm (24.2 in)

(OPTIONAL)660.6 mm (26 in)

FUEL INLET

206.8 mm (8.1 in)

39.5 mm (1.6 in)

506 mm (20 in) 188.6 mm (7.4 in)

901.4 mm (35.5 in)

256 mm (10.1 in)

114.9 mm

(4.5 in)

118.4 mm

(4.7 in)

933 mm (36.7 in)

234.6 mm (9.2 in)

183.6 mm (7.2 in)

137 mm (5.4 in)

60 mm

(2.4 in)

WATER INLET

Right side viewRear view

4JH4-HTE with KMH4A marine gear

4JH4-HTE Series

MARINE DIESEL ENGINES
