ASRock 960GM/U3S3 FX [24/56] 24 24 24 24
![ASRock 960GM/U3S3 FX [24/56] 24 24 24 24](/views2/1159611/page24/bg18.png)
2424
2424
24
J_SENSE
OUT2_L
1
MIC_RET
PRESENCE#
GND
OUT2_R
MIC2_R
MIC2_L
OUT_RET

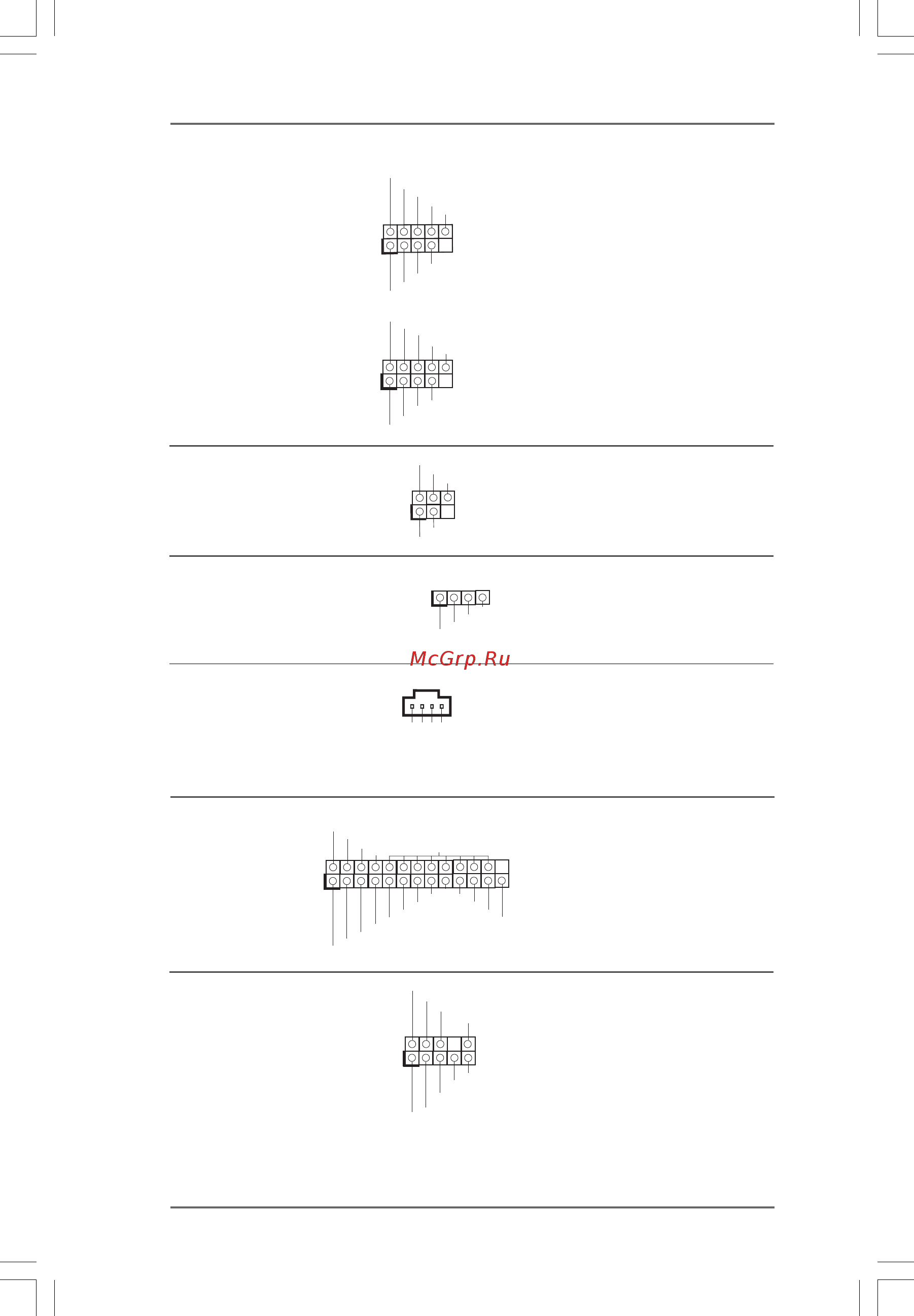

Front Panel Audio Header This is an interface for the front
(9-pin HD_AUDIO1) panel audio cable that allows
(see p.12, No. 27) convenient connection and
control of audio devices.
USB 2.0 Headers Besides four default USB 2.0
(9-pin USB6_7) ports on the I/O panel, there are
(see p.12 No. 21) two USB 2.0 headers on this
motherboard. Each USB 2.0
header can support two USB
2.0 ports.
(9-pin USB8_9)
(see p.12 No. 20)
USB_PW R
USB_PW R
P +7
P-7
P +6
P-6
GN D
GN D
DUMMY
1
Print Port Header This is an interface for print
(25-pin LPT1) port cable that allows
(see p.12 No. 25) convenient connection of printer
devices.
1
AFD#
ERROR#
PINIT#
GND
SLIN#
STB#
SPD0
SPD1
SPD2
SPD3
SPD4
SPD5
SPD6
SPD7
ACK#
BUSY
PE
SLCT
1
USB _PWR
P-8
GND
DUMMY
USB _PWR
P+8
GND
P-9
P+9
Consumer Infrared Module Header This header can be used to
(4-pin CIR1) connect the remote
(see p.12 No. 22) controller receiver.
Infrared Module Header This header supports an
(5-pin IR1) optional wireless transmitting
(see p.12 No. 23) and receiving infrared module.
DUMMY
GN D
+5V
IRTX
IRRX
1
1
ATX+5VSB
IRTX
GND
IRRX
Internal Audio Connectors This connector allows you
(4-pin CD1) to receive stereo audio input
(CD1: see p.12 No. 26) from sound sources such as
a CD-ROM, DVD-ROM, TV
tuner card, or MPEG card.
CD-L
GN D
GN D
CD-R
CD1
