Caution
1. Without SATA 15-pin power connector interface, the SATA / SATAII / SATA3 Hot
Plug cannot be processed.
2. Even some SATA / SATAII / SATA3 HDDs provide both SATA 15-pin power
connector and IDE 1x4-pin conventional power connector interfaces, the IDE
1x4-pin conventional power connector interface is definitely not able to support
Hot Plug and will cause the HDD damage and data loss.

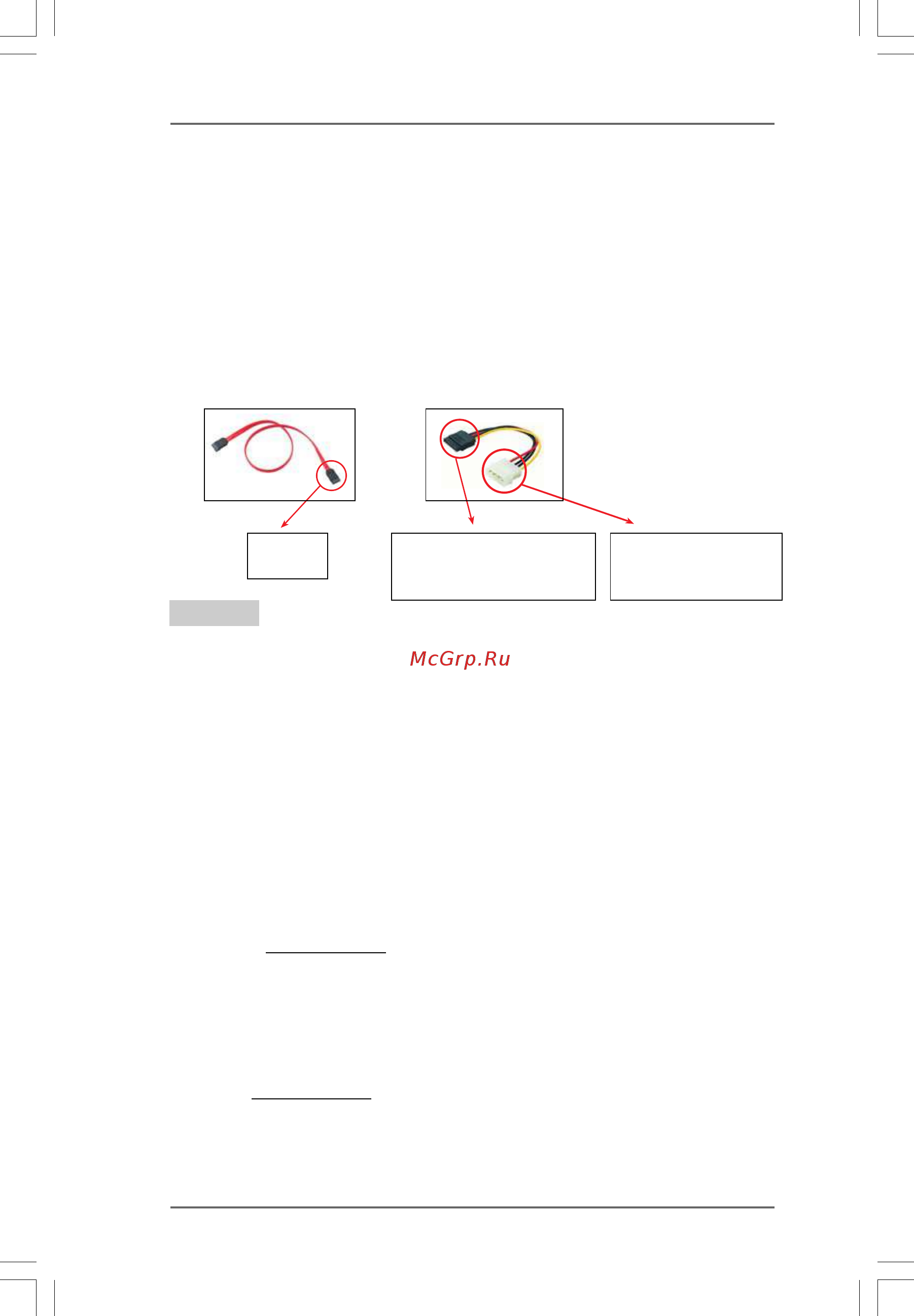

SATA 7-pin
connector
1x4-pin conventional
power connector (White)
connect to power supply
A. SATA data cable (Red) B. SATA power cable
2.14 SA2.14 SA
2.14 SA2.14 SA
2.14 SA
TT
TT
T
A / SAA / SA
A / SAA / SA
A / SA
TT
TT
T
AII / SAAII / SA
AII / SAAII / SA
AII / SA
TT
TT
T
A3 HDD Hot Plug FA3 HDD Hot Plug F
A3 HDD Hot Plug FA3 HDD Hot Plug F
A3 HDD Hot Plug F
eature andeature and
eature andeature and
eature and
Operation Guide Operation Guide
Operation Guide Operation Guide
Operation Guide
This motherboard supports Hot Plug feature for SATA / SATAII / SATA3 HDD in RAID /
AHCI mode. Please read below operation guide of Hot Plug feature carefully. Before you
process the SATA / SATAII / SATA3 HDD Hot Plug, please check below cable accessories
from the motherboard gift box pack.
A. 7-pin SATA data cable
B. SATA power cable with SATA 15-pin power connector interface
The SATA 15-pin power
connector (Black) connect
to SATA / SATAII / SATA3 HDD
Points of attention, before you process the Hot Plug:
1. Below operation procedure is designed only for our motherboard, which supports
SATA / SATAII / SATA3 HDD Hot Plug.
* The SATA / SATAII / SATA3 Hot Plug feature might not be supported by the
chipset because of its limitation, the SATA / SATAII / SATA3 Hot Plug support
information of our motherboard is indicated in the product spec on our
website: www.asrock.com
2. Make sure your SATA / SATAII / SATA3 HDD can support Hot Plug function from
your dealer or HDD user manual. The SATA / SATAII / SATA3 HDD, which cannot
support Hot Plug function, will be damaged under the Hot Plug operation.
3. Please make sure the SATA / SATAII / SATA3 driver is installed into system
properly. The latest SATA / SATAII / SATA3 driver is available on our support
website: www.asrock.com
4. Make sure to use the SATA power cable & data cable, which are from our
motherboard package.
5. Please follow below instructions step by step to reduce the risk of HDD crash
or data loss.
