![Asus z87-plus [63/174] Cpu installation](/img/pdf.png)
Asus z87-plus [63/174] Cpu installation
![Asus z87-plus [63/174] Cpu installation](/views2/1159683/page63/bg3f.png)
ASUS Z87-PLUS
2-3
Chapter 2

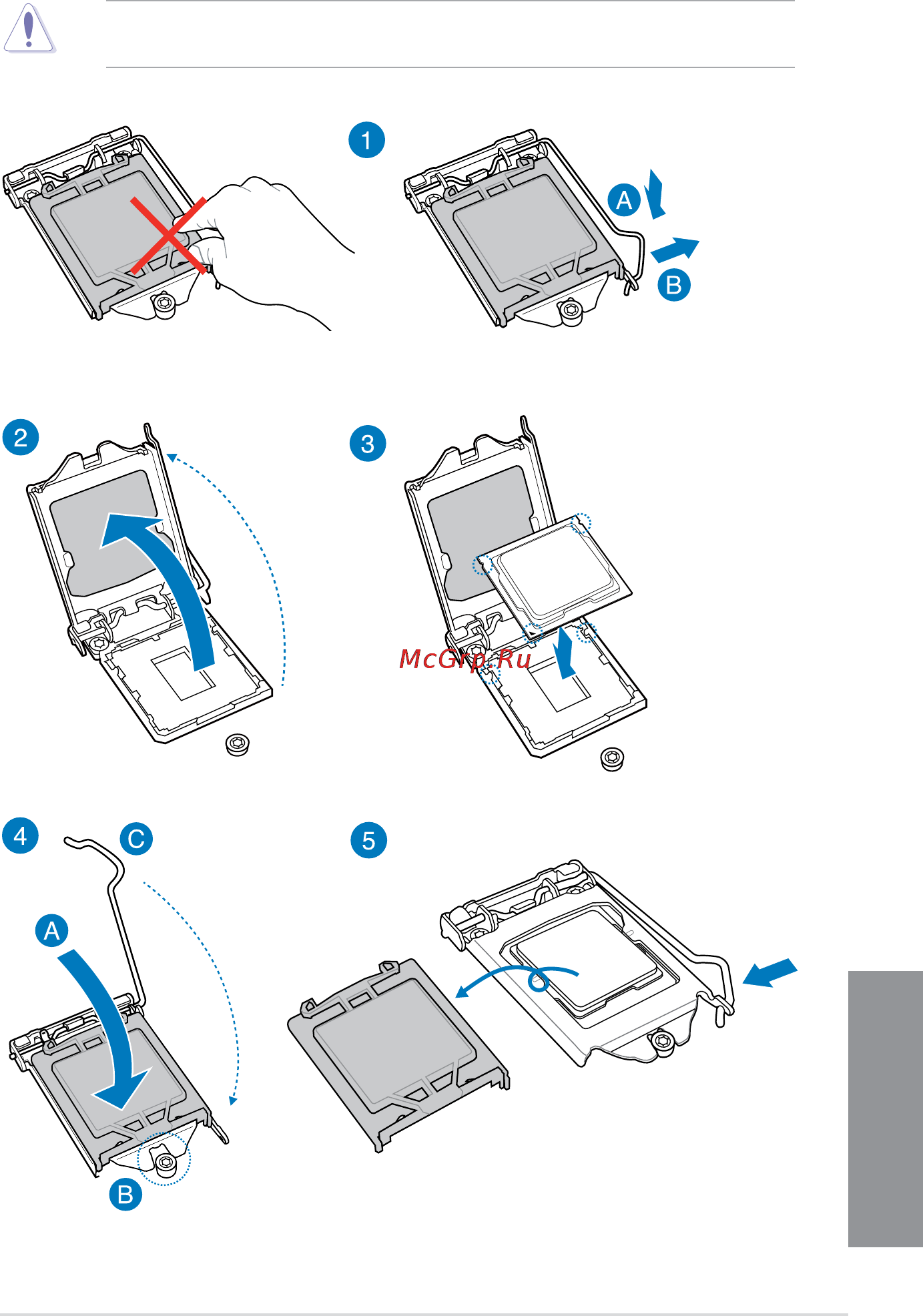

2.1.2 CPU installation
Ensure that you install the correct CPU designed for LGA1150 socket only. DO NOT install
a CPU designed for LGA155 and LGA1156 socket on the LGA1150 socket.
