![Asus z87-plus [64/174] Cpu heatsink and fan assembly installation](/img/pdf.png)
Asus z87-plus [64/174] Cpu heatsink and fan assembly installation
![Asus z87-plus [64/174] Cpu heatsink and fan assembly installation](/views2/1159683/page64/bg40.png)
2-4
Chapter 2: Basic installation
Chapter 2

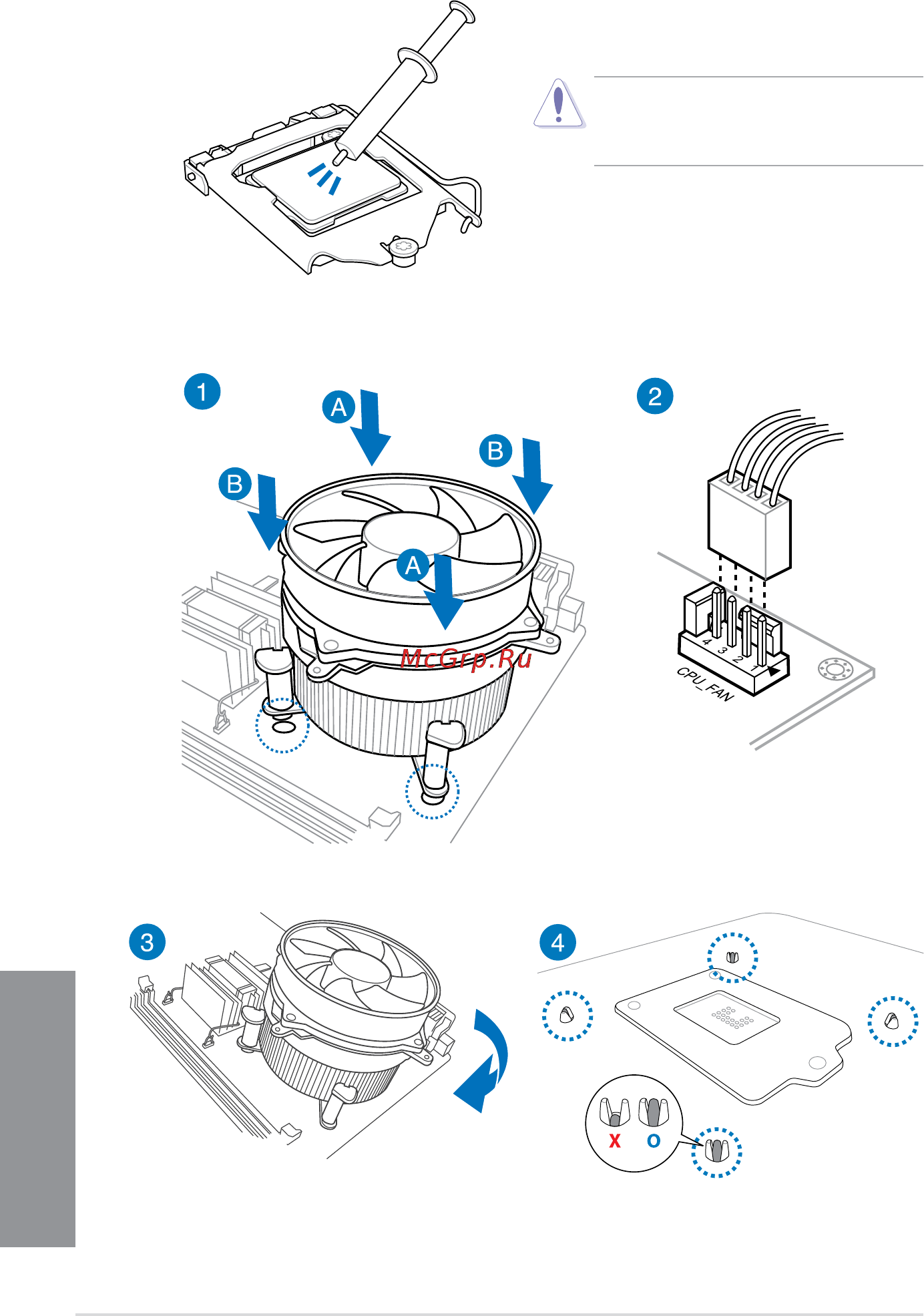

2.1.3 CPU heatsink and fan assembly installation
Apply the Thermal Interface Material to the
CPU heatsink and CPU before you install
the heatsink and fan, if necessary.
To install the CPU heatsink and fan assembly
