Asus z87-pro [106/168] Advanced menu

3-24

Chapter 3: BIOS setup

Chapter 3

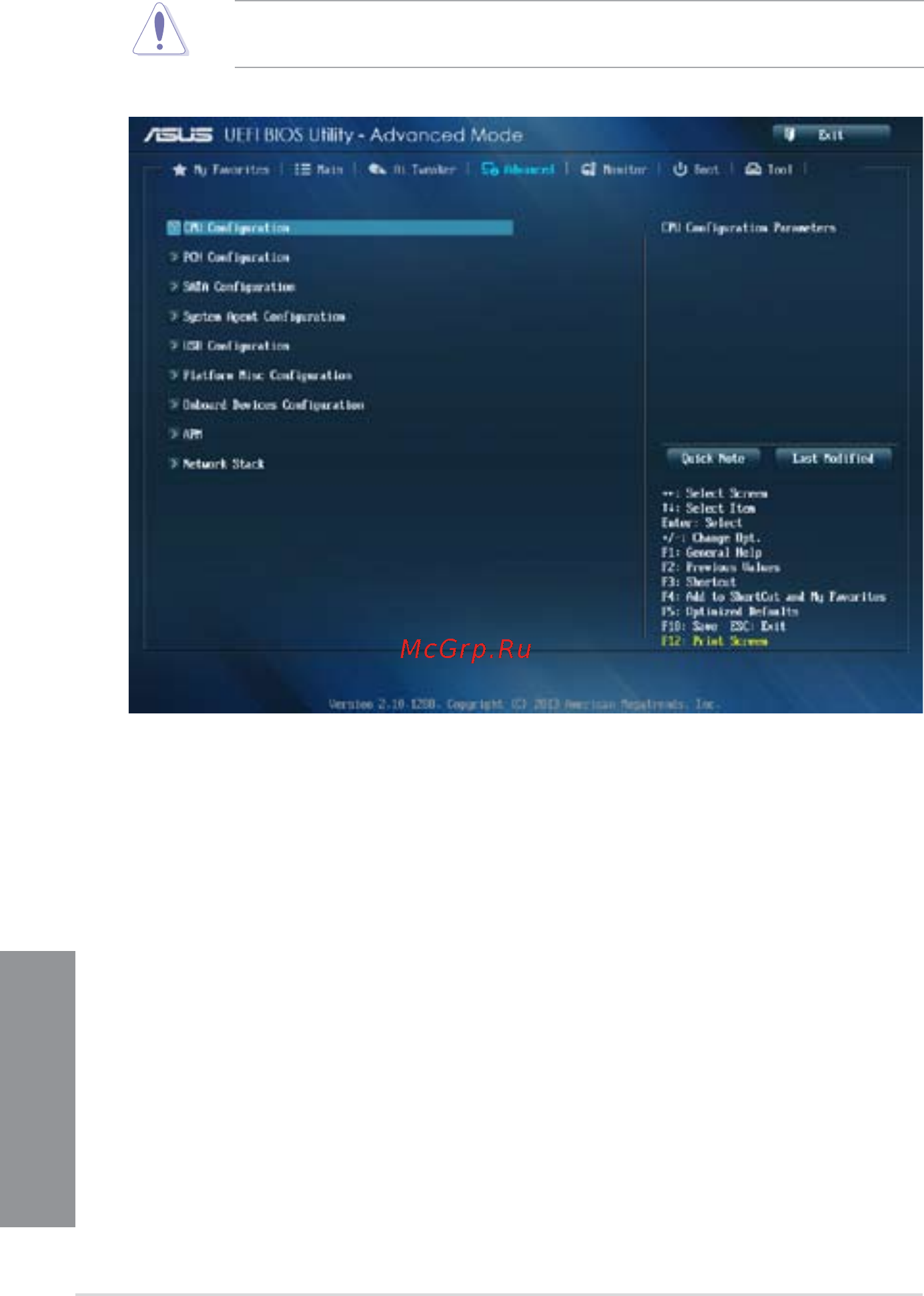

3.6 Advanced menu

The Advanced menu items allow you to change the settings for the CPU and other system

devices.

Be cautious when changing the settings of the Advanced menu items. Incorrect eld values

can cause the system to malfunction.
