Asus z87-pro [48/168] Chapter 1

1-32

Chapter 1: Product introduction

Chapter 1

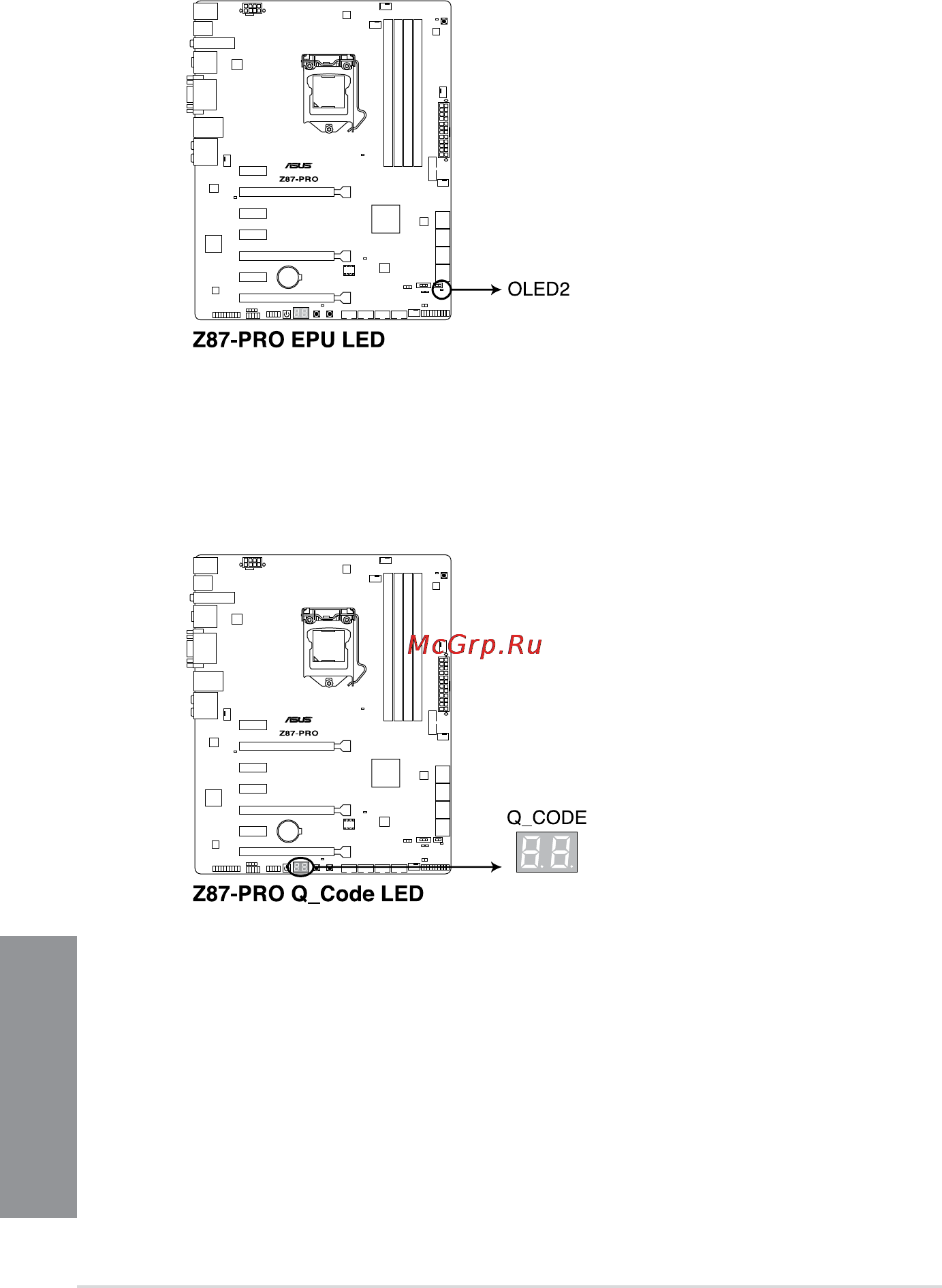

3. EPU LED

The EPU LED lights up when the EPU switch is enabled.

4. Q-Code LED

The Q-Code LED design provides you with a 2-digi error code that displays the system

status. Refer to the Q-Code table on the next page for details.
