Asus z87-pro [65/168] Chapter 2

ASUS Z87-PRO

2-3

Chapter 2

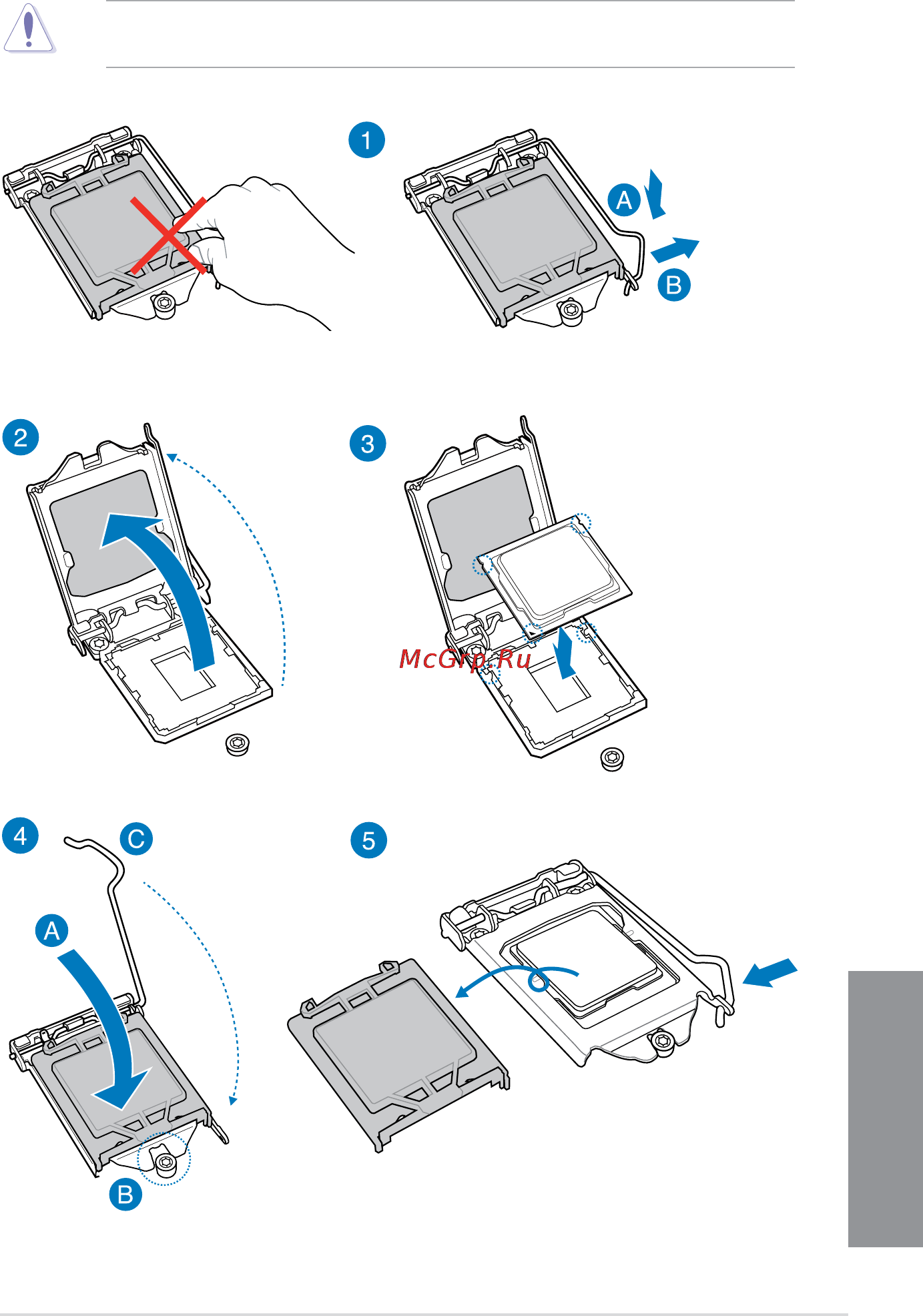

2.1.2 CPU installation

Ensure that you install the correct CPU designed for LGA1150 socket only. DO NOT install

a CPU designed for LGA155 and LGA1156 socket on the LGA1150 socket.
