Asus z87-pro [23/168] Chapter 1

ASUS Z87-PRO

1-7

Chapter 1

Refer to 1.2.8 Internal connectors and 2.3.1 Rear I/O connection for more information

about rear panel connectors and internal connectors.

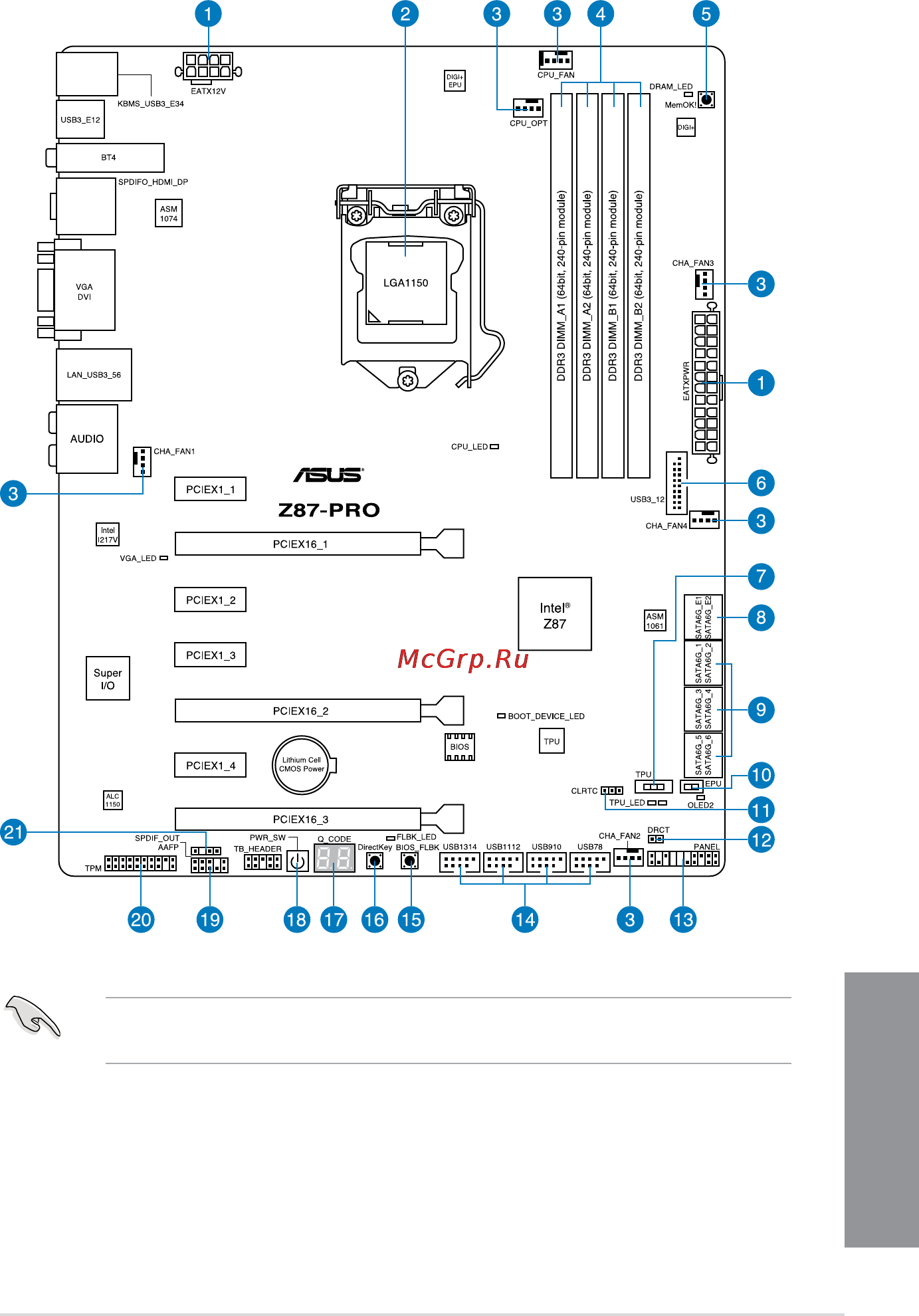

1.2.2 Motherboard layout
