Asus z9pa-u8 [146/188] Changing a volume type

5-38 Chapter 5: RAID conguration

5.4.2 Changing a Volume Type

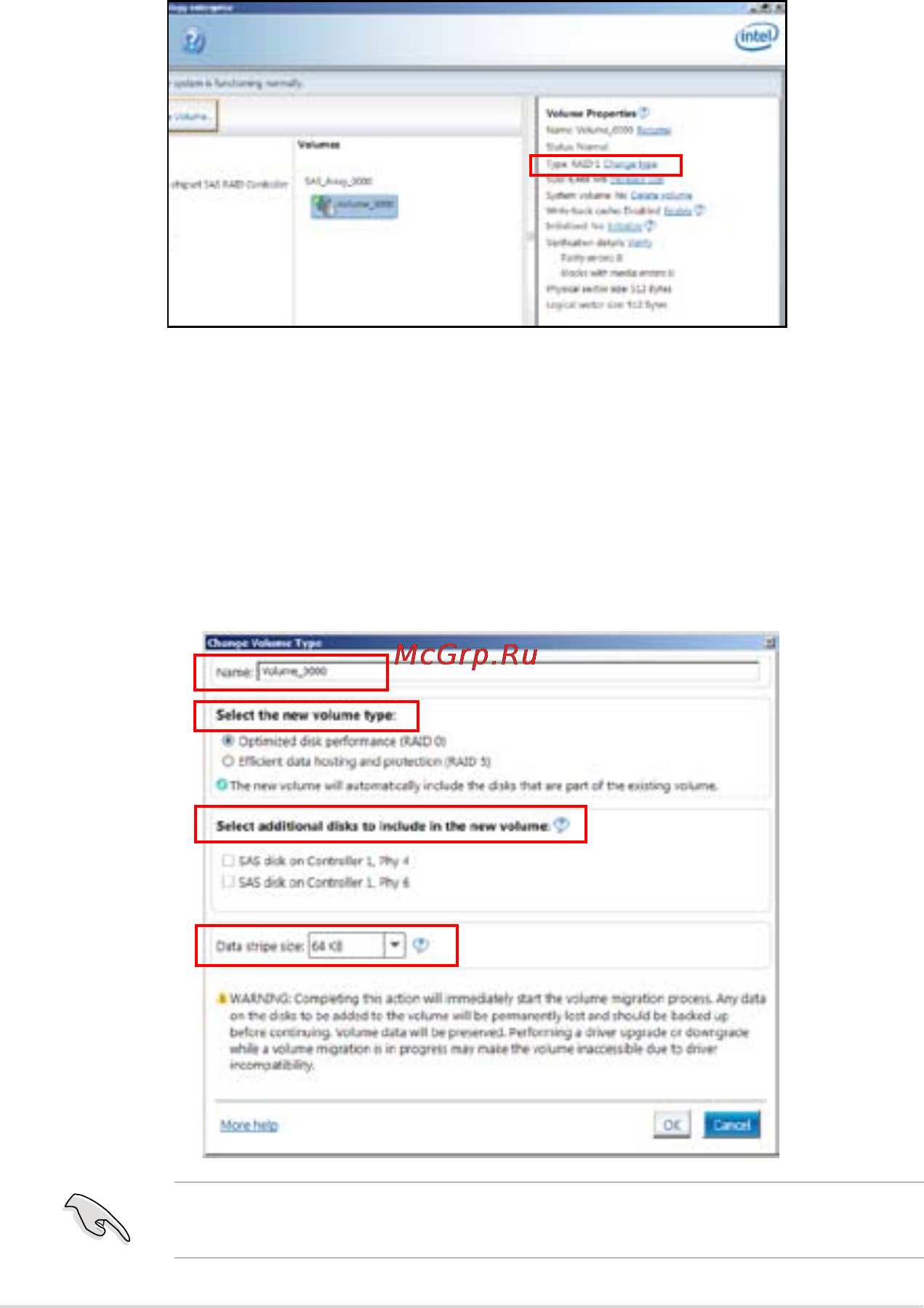

To change the volume type in

Volume Properties

1. Click the SATA array items you want to change in

Volumes

eld.

2 From the

Volume Properties

eld, select

Type:RAID 1 Change type

We recommend a lower stripe size for server systems, and a higher stripe size

for multimedia computer systems used mainly for audio and video editing.

3. You can change the

Name

Select the new volume type

, and

Select

additional disks to include in the new volume

if needed.

4. Select the

Data stripe size

for the RAID array (for RAID 0, 10 and 5 only),

and click

. The available stripe size values range from 4 KB to 128 KB.

The following are typical values:

RAID 0: 128KB

RAID 10: 64KB

RAID 5: 64KB
