6-14 Chapter 6: Driver installation
SUSE Linux 11 OS
To install the LSI MegaRAID controller driver when installing SUSE Linux Enterprise
Server OS:

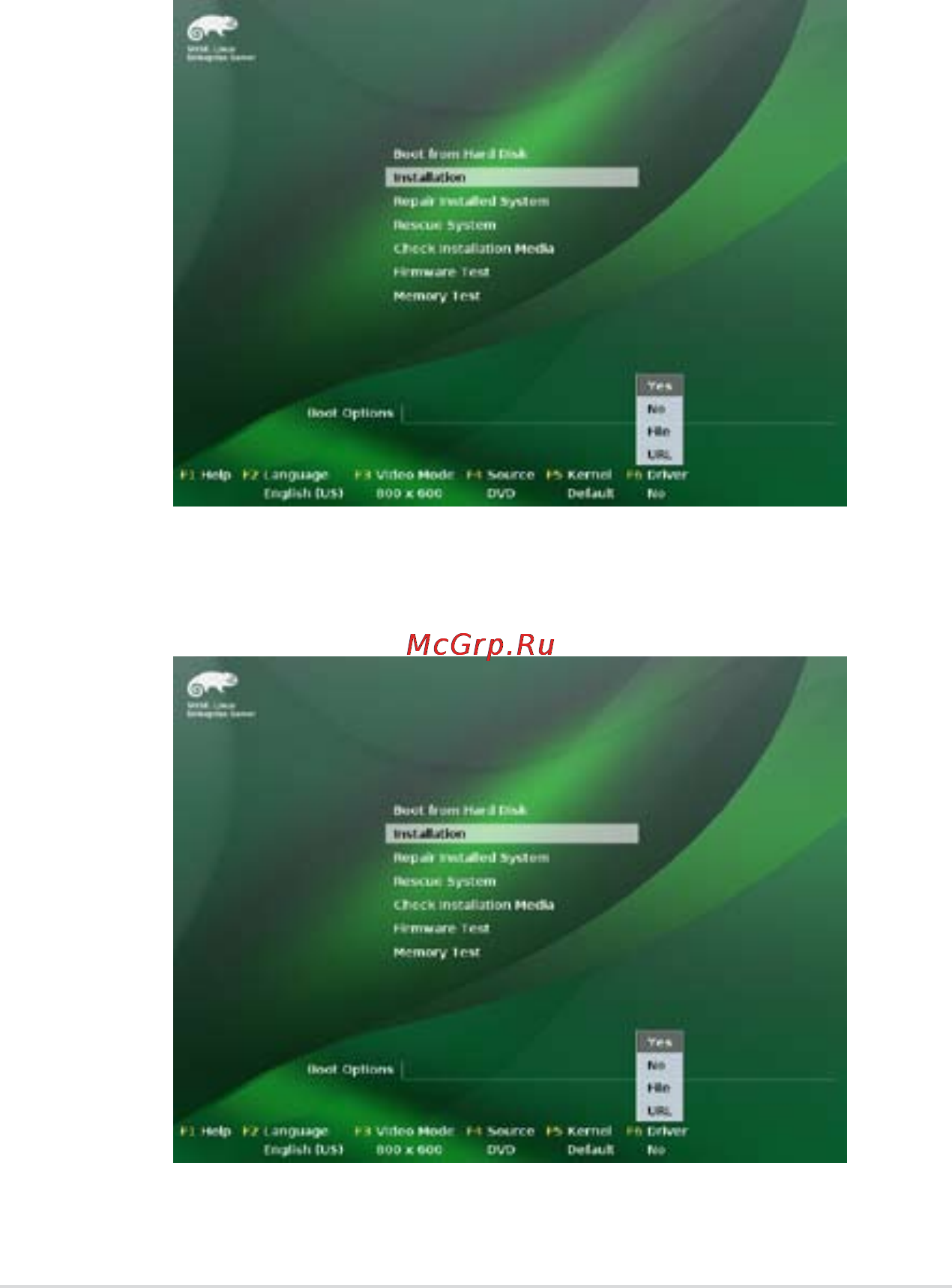

1. Boot the system from the SUSE OS installation CD.
2. Use the arrow keys to select
Installation
from the
Boot Options
menu.
3. Press <F6>, then select
Yes from the menu. Press <Enter>.
