ASUS Z9PA-U8 2-29

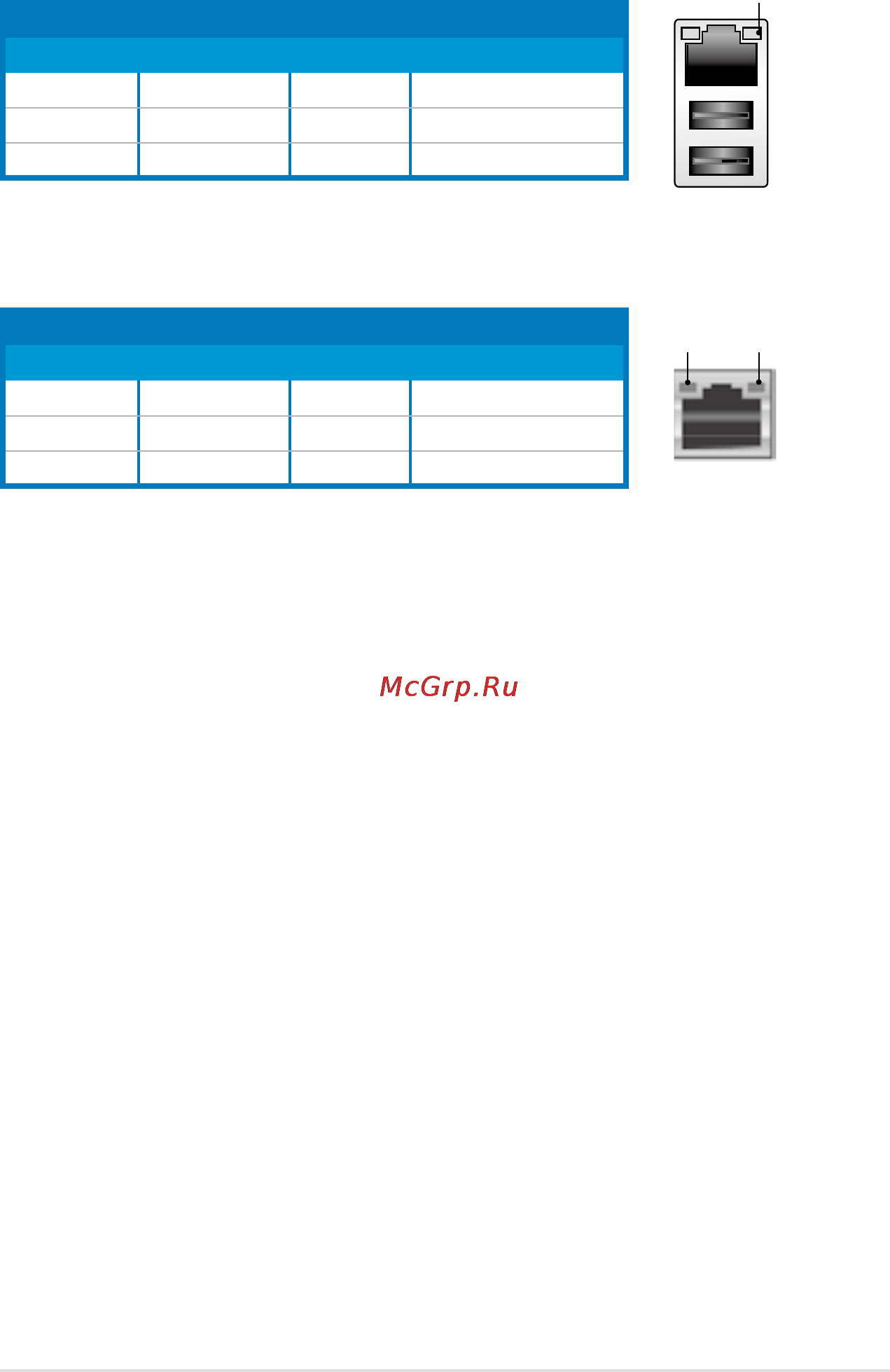

LAN port LED indications
LAN port
SPEED
LED
ACT/LINK
LED
Activity/Link LED Speed LED
Status Description Status Description
OFF No link OFF 10 Mbps connection
Green Linked Orange 100 Mbps connection
Blinking Data activity Green 1 Gbps connection
DM_LAN1 port LED indications
DM LAN port
SPEED
LED
ACT/LINK
LED
Activity/Link LED Speed LED
Status Description Status Description
OFF No link OFF 10 Mbps connection
Orange Linked Orange 100 Mbps connection
Blinking Data activity Green 1 Gbps connection
