2-28 Chapter 2: Hardware information
2.8 Connectors

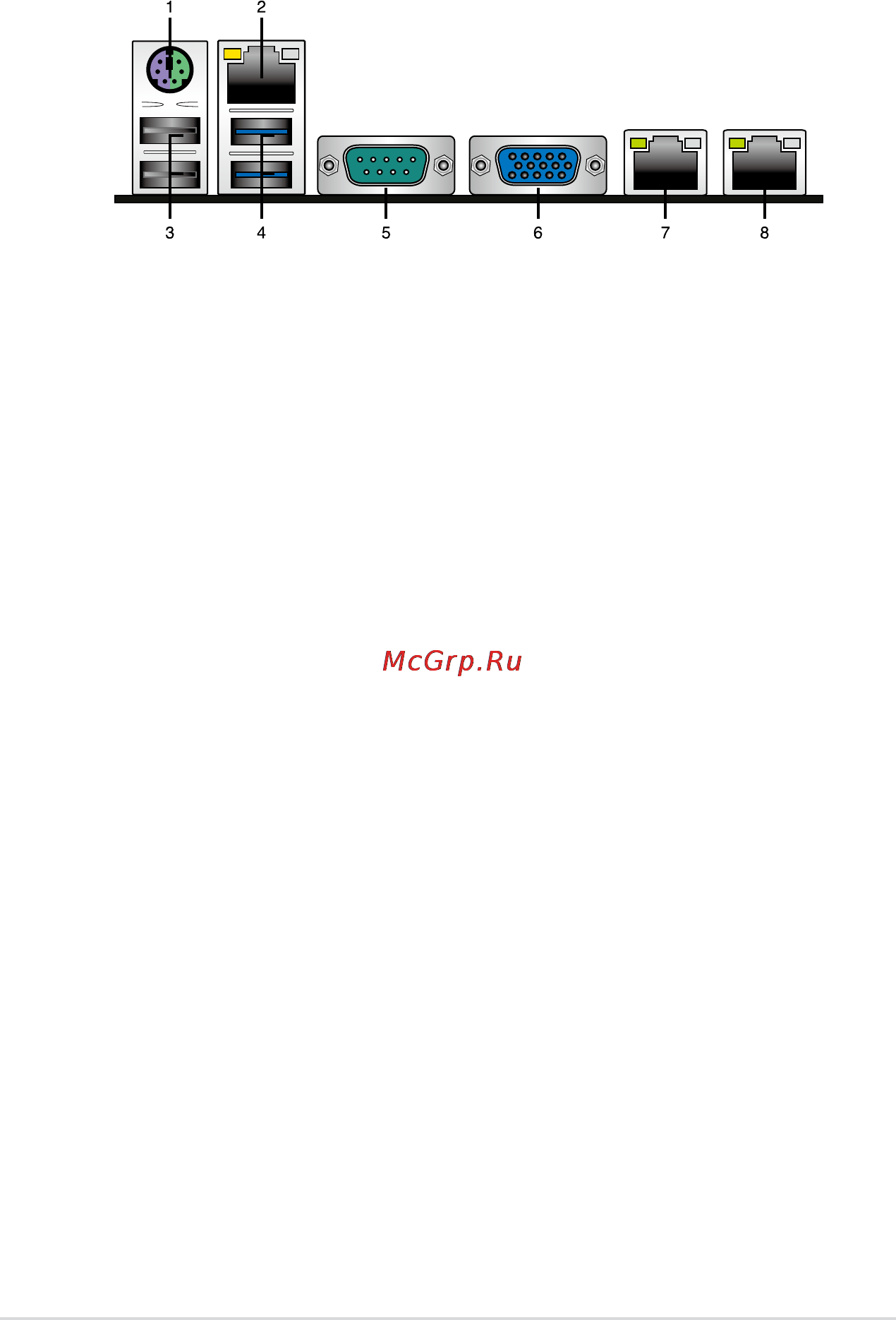

2.8.1 Rear panel connector
1. PS/2 mouse and keyboard port.
This port is for a PS/2 mouse and
keyboard.
2. DM_LAN 1 (RJ-45) port.
This port allows Gigabit connection to a Local Area
Network (LAN) through a network hub for dedicated BMC Mamagement
function. Refer to the table on the next page for the DM_LAN1 and LAN port
LED indications.
3. USB 2.0 ports 1 and 2.
These two 4-pin Universal Serial Bus (USB) ports
are available for connecting USB 2.0 devices.
4. USB 3.0 ports 1 and 2.
These Universal Serial Bus (USB) ports are available
for connecting USB 3.0 devices.
5. Serial (COM1) port.
This 9-pin communication port is for pointing devices or
other serial devices.
6. Video Graphics Adapter (VGA) port.
This port is for a VGA monitor or other
VGA-compatible devices.
7. LAN 1 (RJ-45) port.
This port allows Gigabit connection to a Local Area
Network (LAN) through a network hub. Refer to the table below for the LAN
port LED indications.
8. LAN 2 (RJ-45) port.
This port allows Gigabit connection to a Local Area
Network (LAN) through a network hub. Refer to the table below for the LAN
port LED indications.
