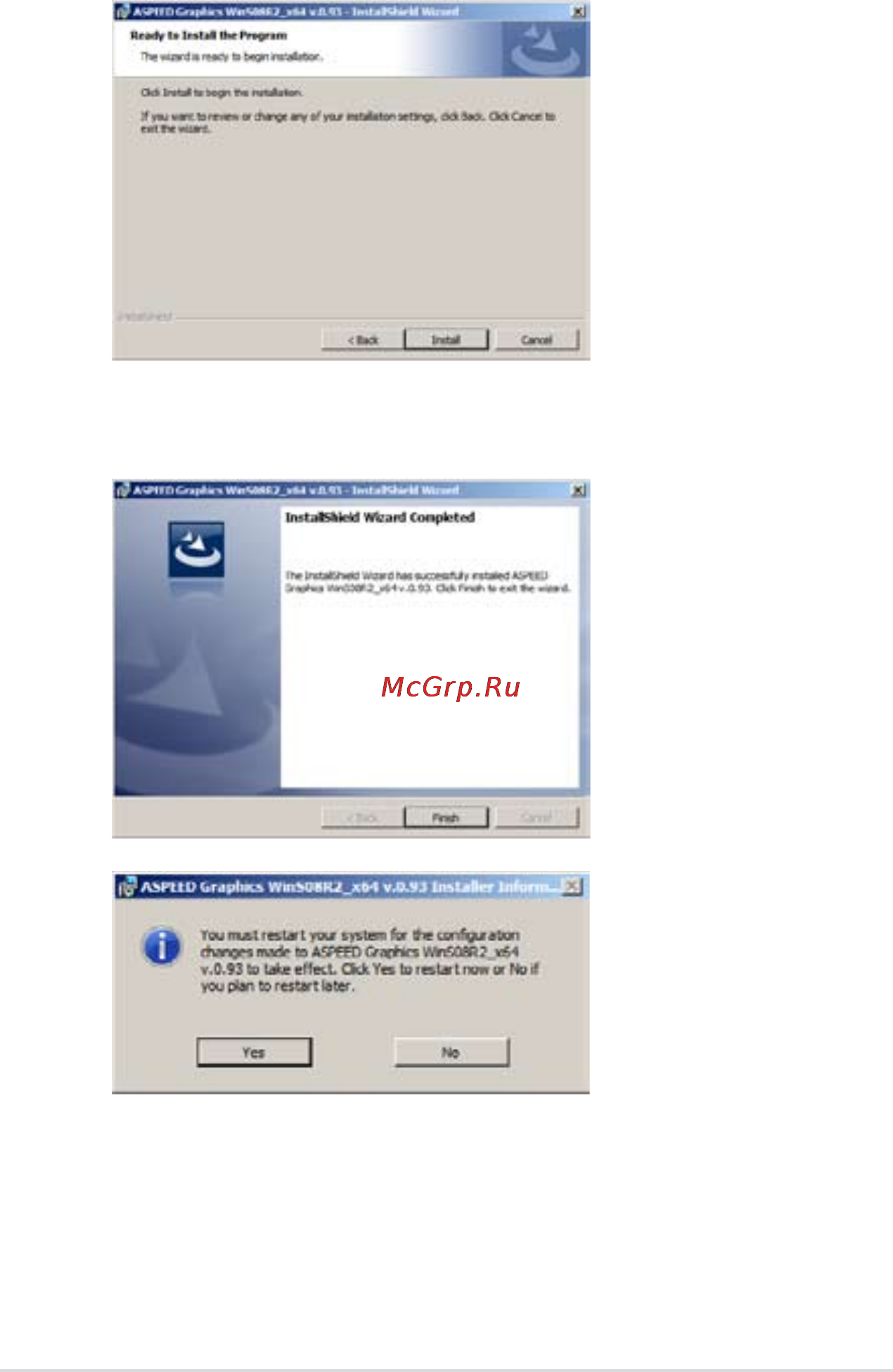

6-24 Chapter 6: Driver installation
9. When the installation completes, click Finish to restart your computer before
using the program.
8. Click
Install
to start driver installation.
