ASUS Z9PA-U8 2-25

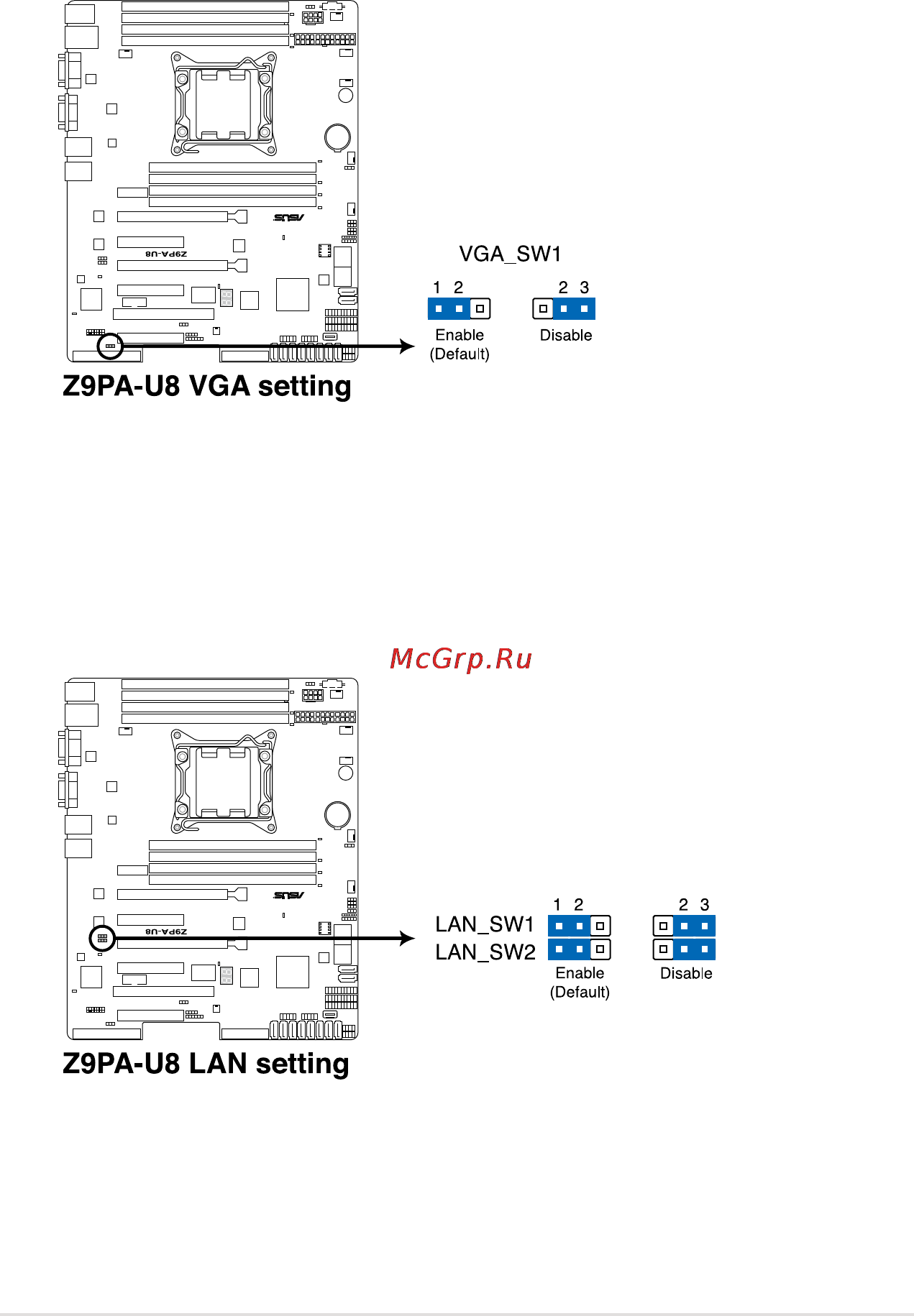

2. VGA controller setting (3-pin VGA_SW1)

This jumper allows you to enable or disable the onboard VGA controller. Set

to pins 1–2 to activate the VGA feature.

3. LAN controller setting (3-pin LAN_SW1/ LAN_SW2)

These jumpers allow you to enable or disable the onboard Intel

82574L

Gigabit LAN controllers. Set to pins 1-2 to activate the Gigabit LAN feature.
