2-12
Chapter 2: Getting started
2.6 Monitor menu

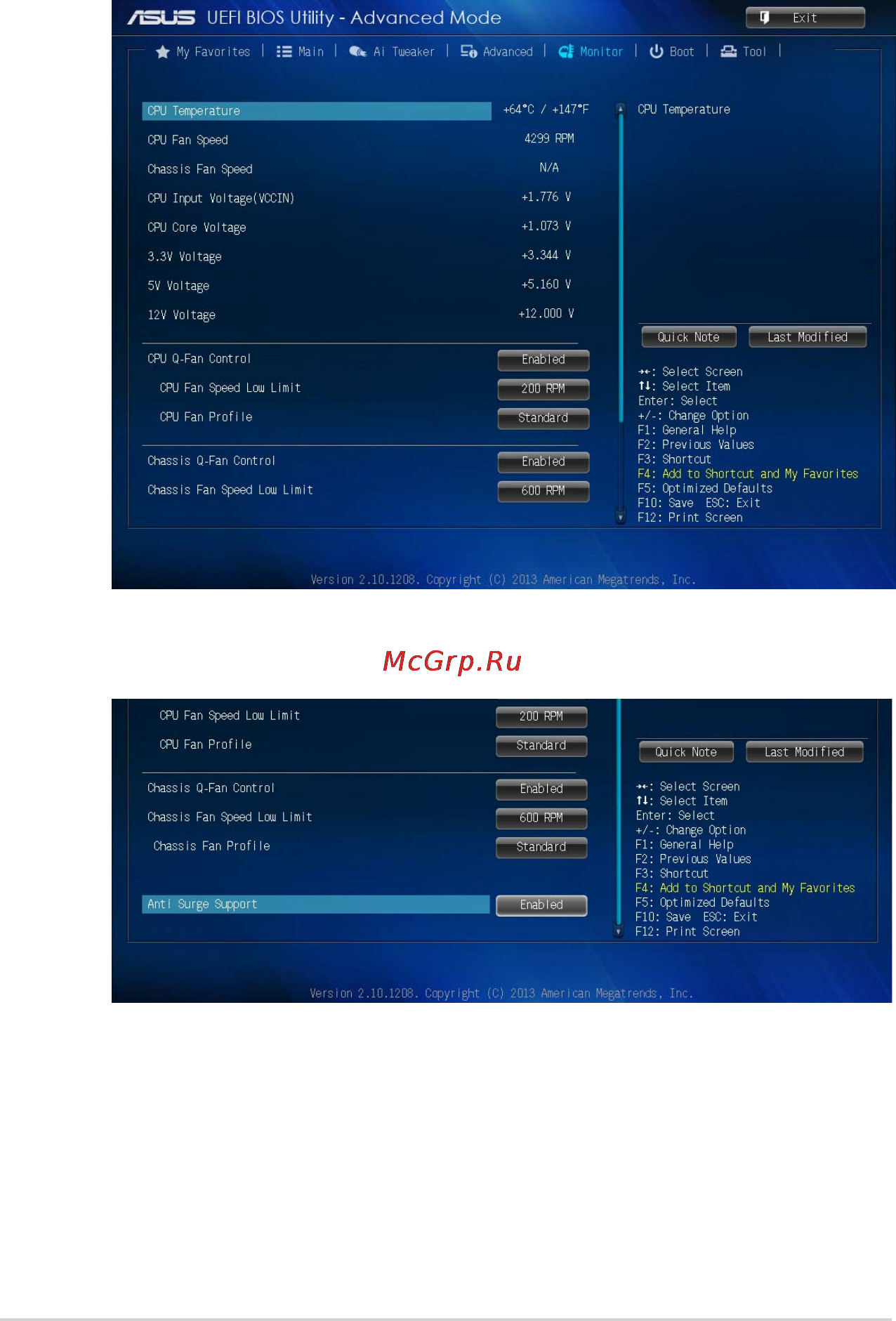

The Monitor menu displays the system temperature/power status, and allows you to change
the fan settings.
Scroll down to display the following items:
