ASUS H81M-P
1-3

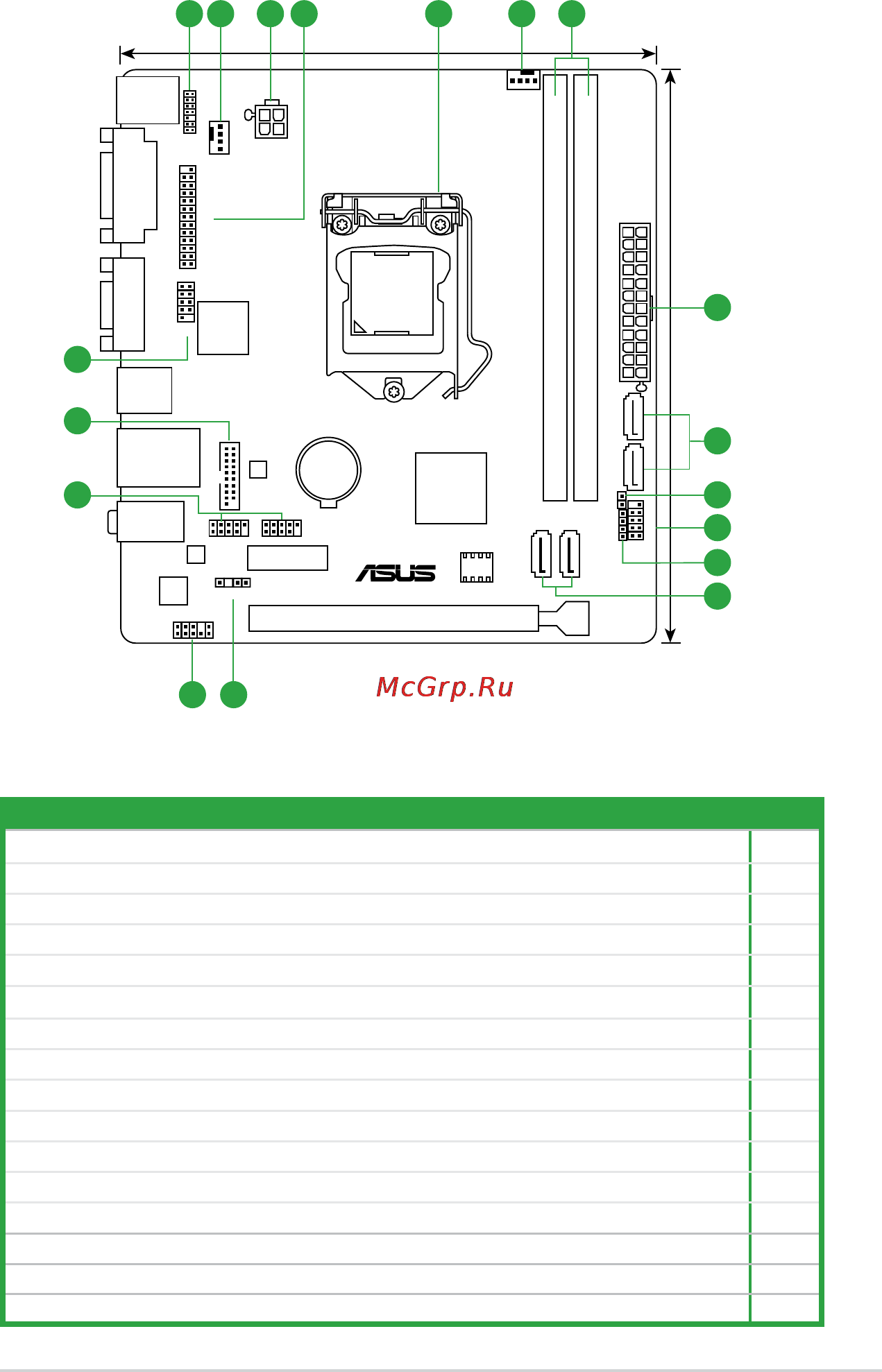

1.2.3 Motherboard layout
H81M-P
PCIEX16
PCIEX1_1
Realtek®
8111GR
ASM
1042
AAFP
COM
EATXPWR
BATTERY
Super
I/O
ALC
887
KBMS
CLRTC
SPEAKER
17.7cm(7.0in)
DDR3 DIMM_A1 (64bit, 240-pin module)
DDR3 DIMM_B1 (64bit, 240-pin module)
SATA6G_2 SATA6G_1
SATA3G_1
SATA3G_2
AUDIO
VGA DVI
CHA_FAN
CPU_FAN
LAN_USB34
USB3_12
19cm(7.5in)
LGA1150
Intel
®
H81
ATX12V
F_PANEL
TPM
USB910
USB56
CHASSIS
64Mb
BIOS
LPT
USB3_E12
1 2 3 24 65
14
13 12
3
7
9
10
11
8
16
15
1.2.4 Layout contents
Connectors/Jumpers/Slots/LED Page
1.
TPM header (14-1 pin TPM) 1-19
2.
CPUandchassisfanconnectors(4-pinCPU_FAN,4-pinCHA_FAN) 1-14
3.
ATXpowerconnectors(24-pinEATXPWR,4-pinATX12V) 1-16
4.
LPT connector (26-1 pin LPT) 1-18
5.
Intel
®
LGA1150CPUsocket 1-4
6.
DDR3DIMMslots 1-7
7.
Intel
®
H81SerialATA6.0Gb/sconnector(7-pinSATA6G_1~2[yellow]) 1-17
8.
ClearRTCRAM(2-pinCLRTC) 1-11
9.
Systempanelconnector(10-1pinF_PANEL) 1-19
10.
Speakerconnector(4-pinSPEAKER) 1-16
11.
Intel
®
H81SerialATA3.0Gb/sconnector(7-pinSATA3G_1~2[darkbrown]) 1-17
12.
Chassisintrusionconnector(4-1pinCHASSIS) 1-18
13.
Frontpanelaudioconnector(10-1pinAAFP) 1-14
14.
USB2.0connectors(10-1pinUSB910,USB56) 1-15
15. USB3.0connectors(20-1pinUSB3_E12) 1-15
16. Serialportconnectors(10-1pinCOM) 1-13
