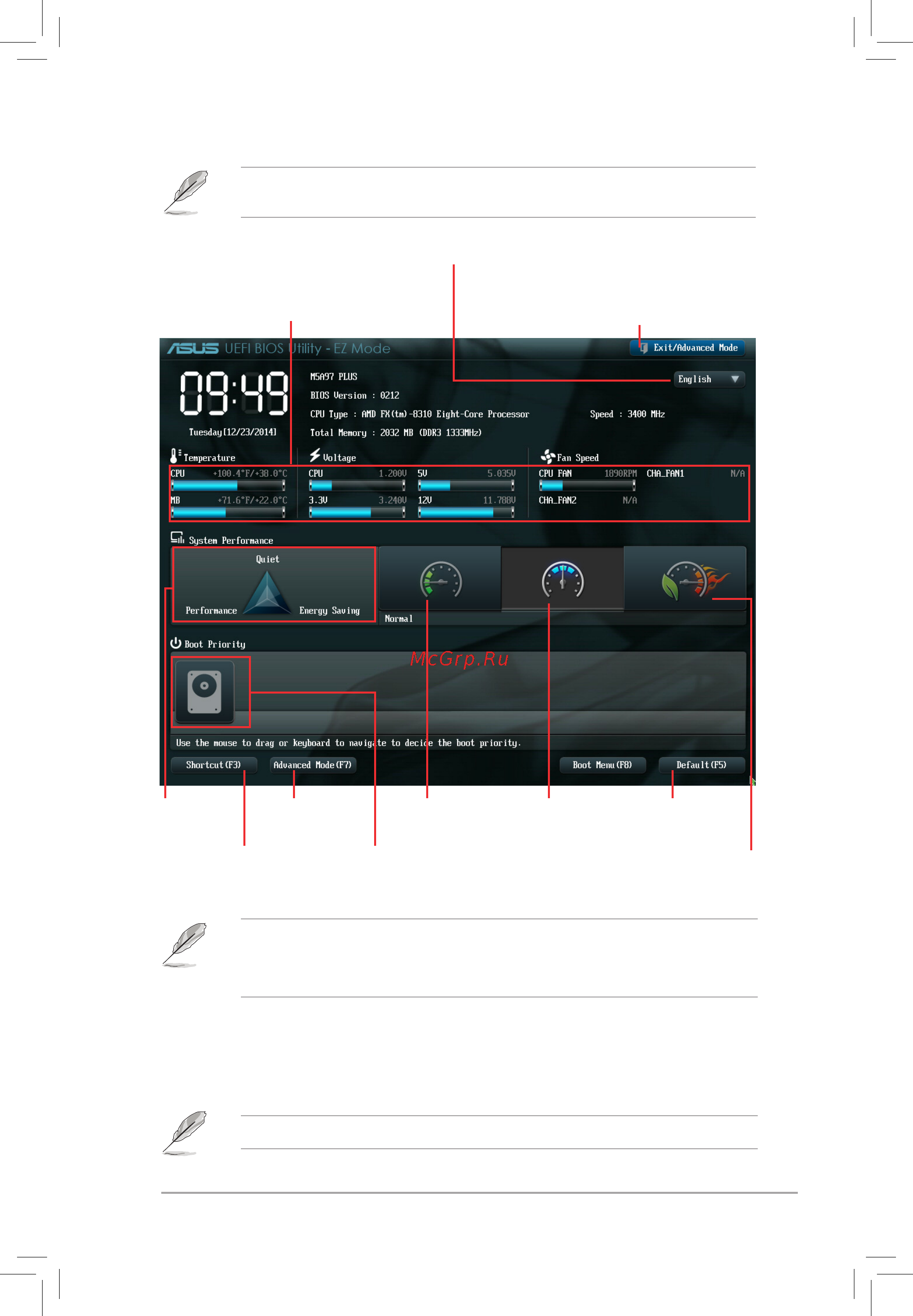

ASUS M5A97 PLUS
2-7
• The boot device options vary depending on the devices you installed to the system.
• The Boot Menu(F8) button is available only when the boot device is installed to the
system.
Advanced Mode
The Advanced Mode provides advanced options for experienced end‑users to congure the
BIOS settings. The gure below shows an example of the Advanced Mode. Refer to the
following sections for the detailed congurations.
To access the EZ Mode, click Exit, then select ASUS EZ Mode or press <F7>.
Exits the BIOS setup program
without saving the changes, saves
the changes and resets the system,
or enters the Advanced Mode
Selects the display language of
the BIOS setup program
Displays the CPU temperature, CPU
Voltage output and CPU/Chassis fan speed
Normal mode Loads optimized default Displays
the system
properties
Advanced mode
functions
Advanced mode
menus
The default screen for entering the BIOS setup program can be changed. Refer to the
Setup Mode item in section 2.8 Boot menu for details.
Boot device
priority
Power
Saving mode
ASUS Optimal mode
